Steering Wheel Secondary/Configurable Control Schematics

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

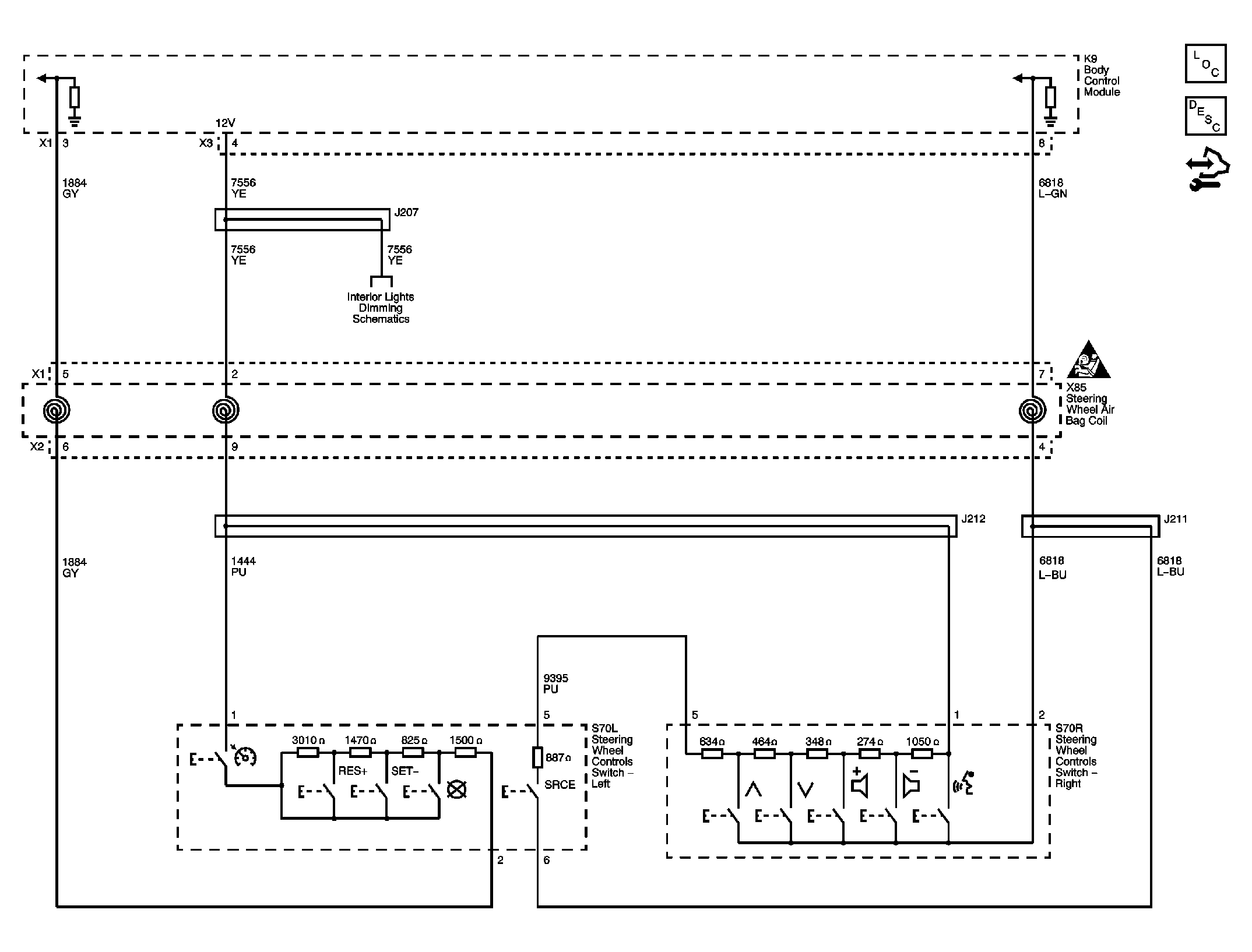

Fig 1: Secondary and Configurable Customer Controls Circuit Schematic
GM2246912Courtesy of GENERAL MOTORS CORP.
