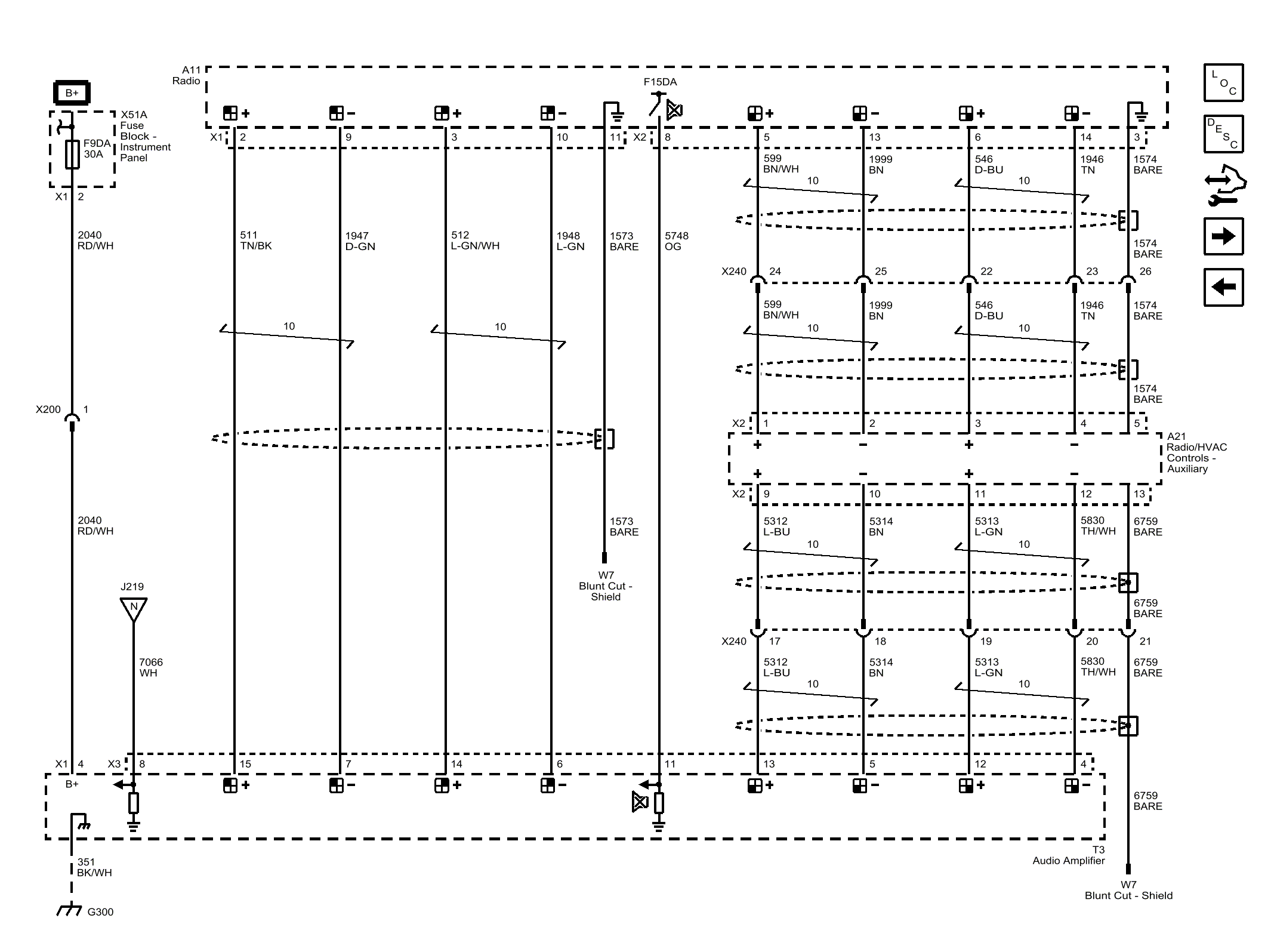

Audio Amplifier Power, Ground, and Front and Rear Audio Inputs (UQA or UQS with ULD)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
