Radio Front Center Speaker Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

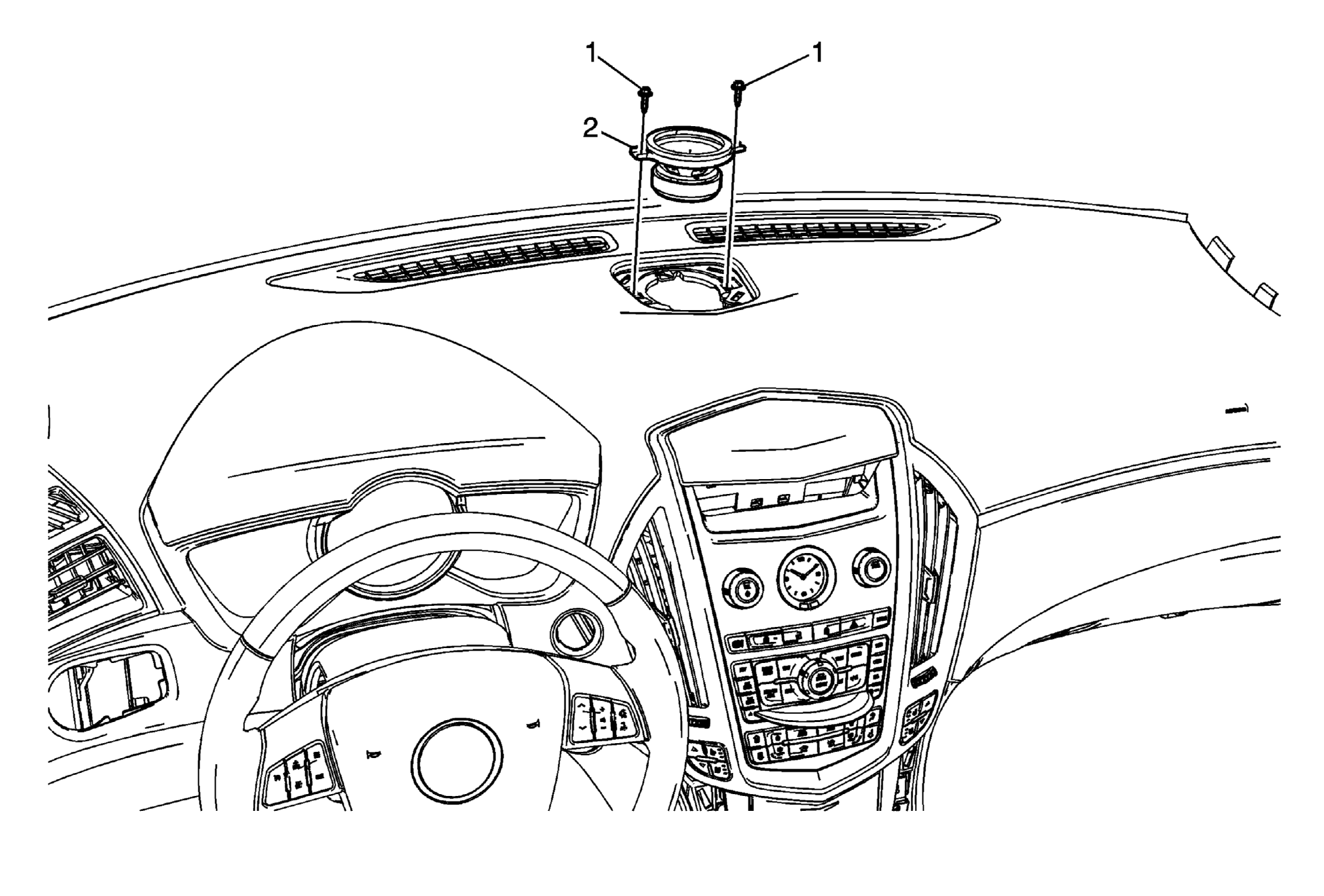

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radio front speaker grille. Refer to Radio Front Speaker Grille Replacement . |
|
| 1 | Radio Front Center Speaker Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Radio Front Center Speaker Assembly Procedure Disconnect the electrical connector. |
