Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

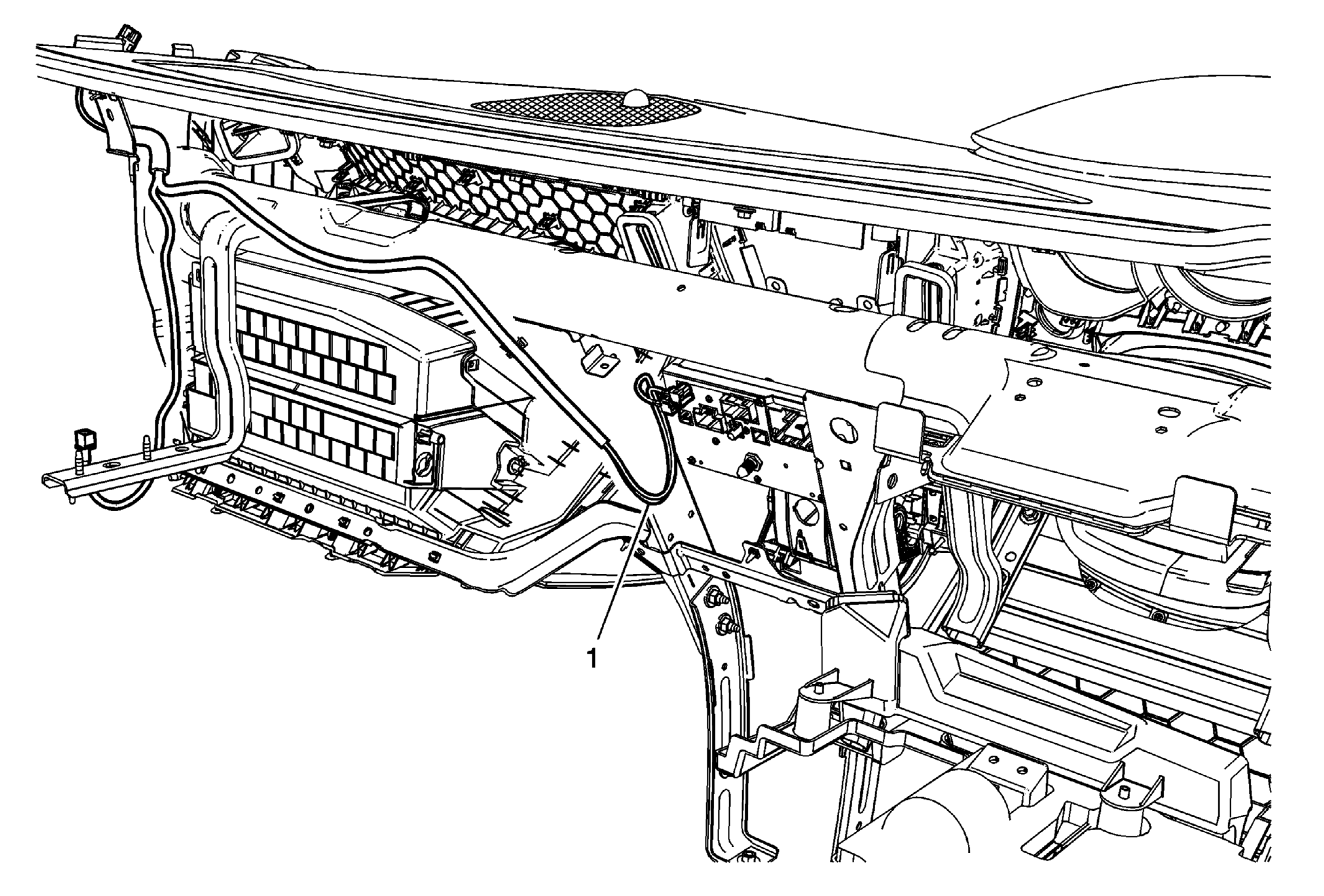

Fig 1: Radio Antenna Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right windshield garnish molding. Refer to Windshield Garnish Molding Replacement Remove the radio. Refer to Radio Replacement . Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Radio Antenna Cable Procedure Disconnect the electrical connectors at each end of the antenna. If the antenna cable is taped into the wiring harness then cut the ends off the old antenna and route the new antenna as close to the old one as possible using tie straps to secure the new cable.

Callout

Component Name

Preliminary Procedures

Remove the right windshield garnish molding. Refer to Windshield Garnish Molding Replacement
Remove the radio. Refer to Radio Replacement .
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .

Radio Antenna Cable

Procedure

Disconnect the electrical connectors at each end of the antenna.
If the antenna cable is taped into the wiring harness then cut the ends off the old antenna and route the new antenna as close to the old one as possible using tie straps to secure the new cable.
