Digital Video Antenna Cable Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

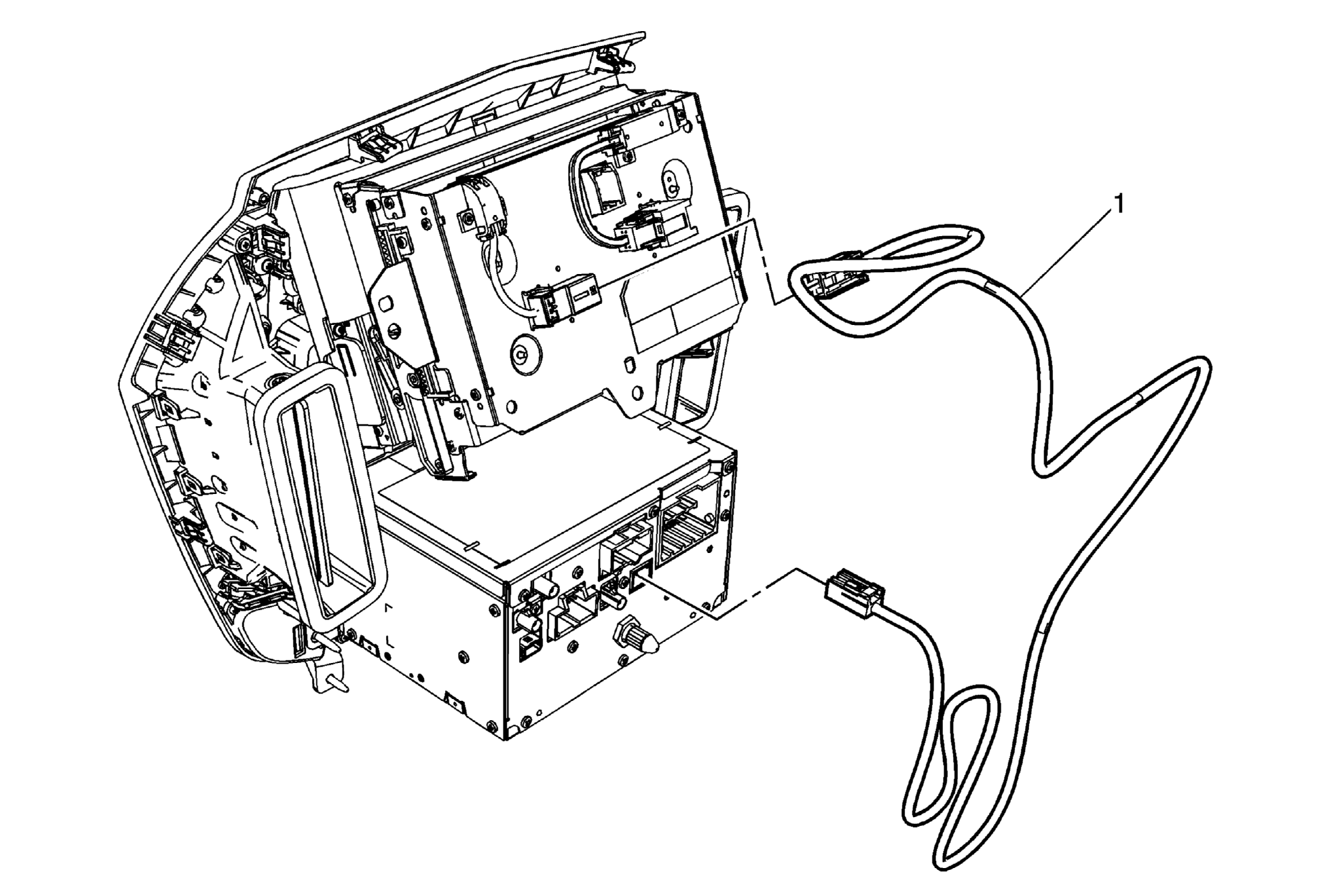

Fig 1: Digital Video Antenna Cable
GM2235030Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the radio. Refer to Radio Replacement .
1 Digital Video Antenna Cable

Procedure

  1. Disconnect the electrical connectors at each end of the digital video antenna cable. Cable connects to the radio and the navigation display.
  2. Note the cable routing prior to removal and follow the same routing.
