Sunroof Window Motor Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

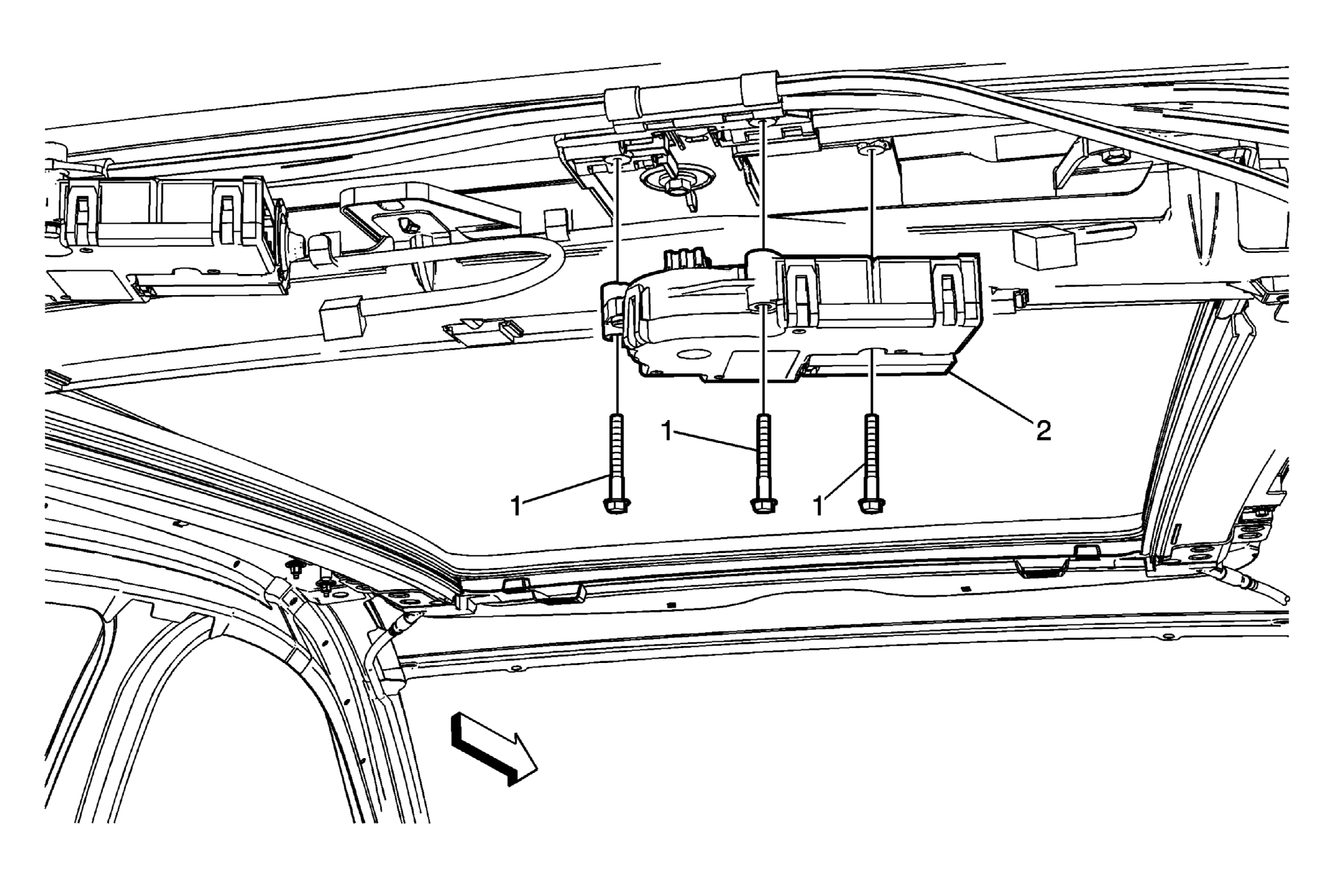

Fig 1: Identifying Sunroof Window Motor & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the sunroof window in the full open position, if the window will not open, Refer to Sunroof Manual Operation . It is only necessary to lower the headliner. Only do those steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U) .
1	Sunroof Window Motor Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedures Ensure that the window is all the way rearward before remove the motor. Disconnect the electrical connector. Tighten 6 N.m (53 lb in)
2	Sunroof Window Motor Procedure Ensure that the sunroof sunshade and window operation properly. Refer to Sunroof Motor/Actuator Initialization/Teach Process .

Callout

Component Name

Preliminary Procedures

Place the sunroof window in the full open position, if the window will not open, Refer to Sunroof Manual Operation .
It is only necessary to lower the headliner. Only do those steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U) .

Sunroof Window Motor Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Procedures

Ensure that the window is all the way rearward before remove the motor.
Disconnect the electrical connector.

Tighten
6 N.m (53 lb in)

Sunroof Window Motor
Procedure
Ensure that the sunroof sunshade and window operation properly. Refer to Sunroof Motor/Actuator Initialization/Teach Process .
