Wireless Communication Interface Antenna Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

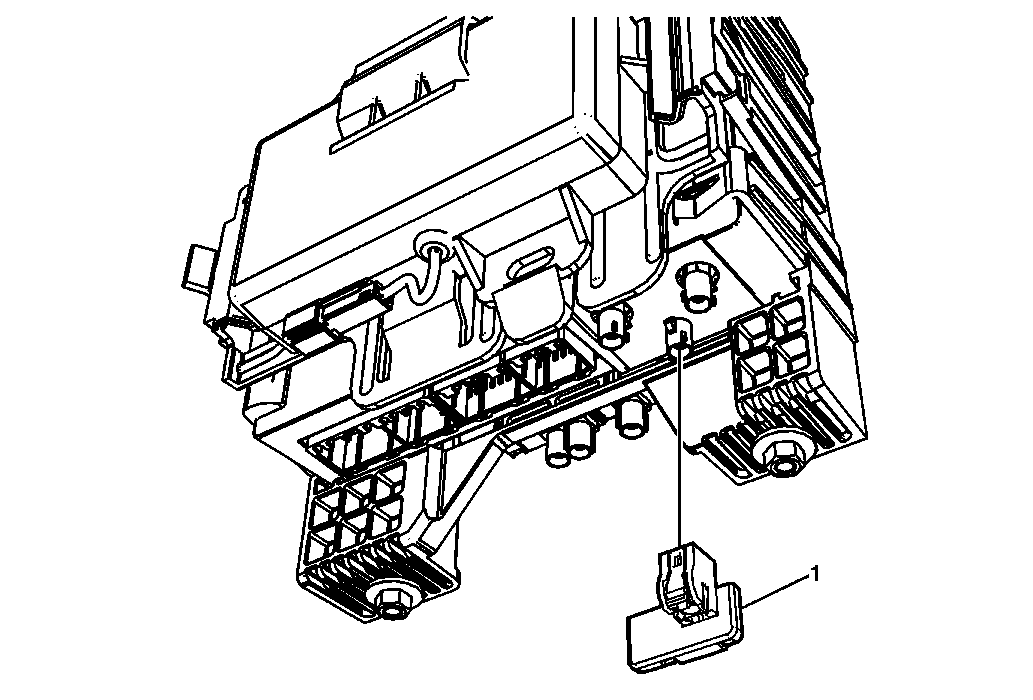

Fig 1: Identifying Wireless Communication Interface Antenna
GM2220868Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement
1 Wireless Communication Interface Antenna Bluetooth Module
Procedure:
Unsnap the antenna from communication module.
