Top of the Engine Components
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

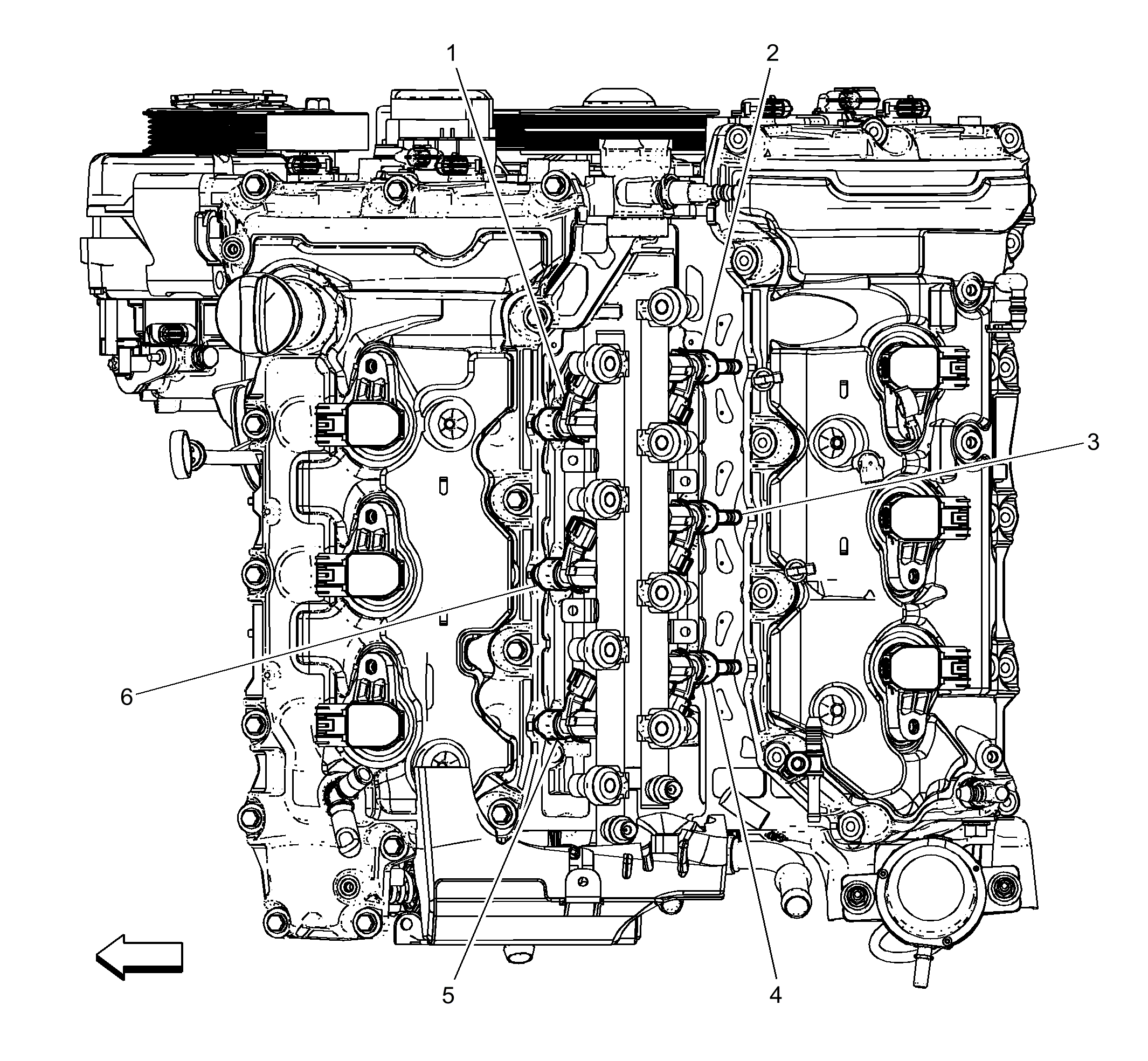

Top of the Engine Components
| Items |
|---|
| 1: Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 2: Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
| 3: Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 4: Q17E Fuel Injector 5 Q17E Fuel Injector 5 |
| 5: Q17F Fuel Injector 6 Q17F Fuel Injector 6 |
| 6: Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
