Keyless Entry - Passive and Keyless Start

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

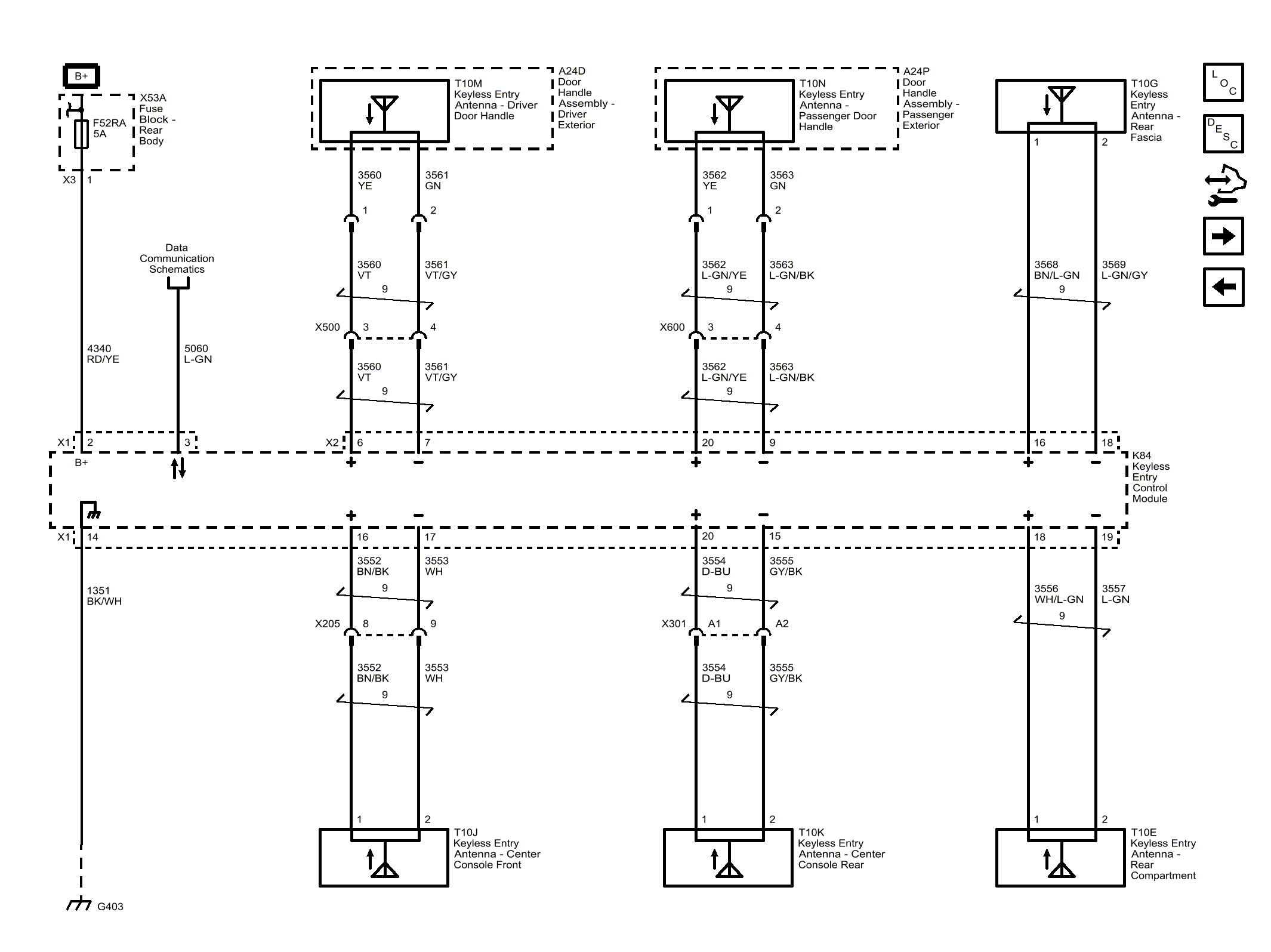

Fig 1: Keyless Entry - Passive and Keyless Start
GM3755246Courtesy of GENERAL MOTORS COMPANY
