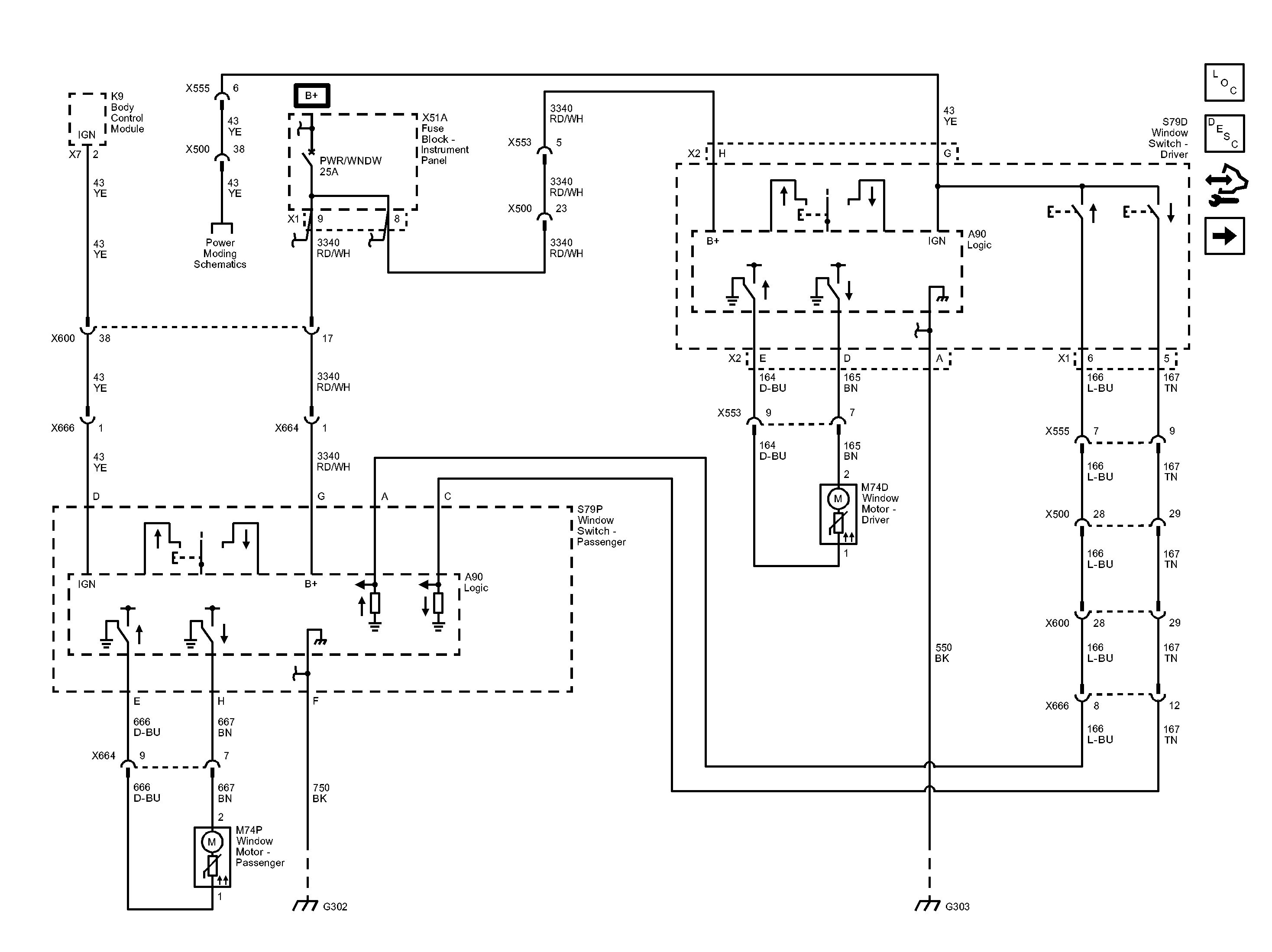

Home >> Chevrolet >> 2013 >> Traverse LS, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic and Routing Diagrams >> Moveable Window Schematics >> Front (-AXE)
