Lane Departure Warning (UFL) and Forward Collision Alert (UEU)

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

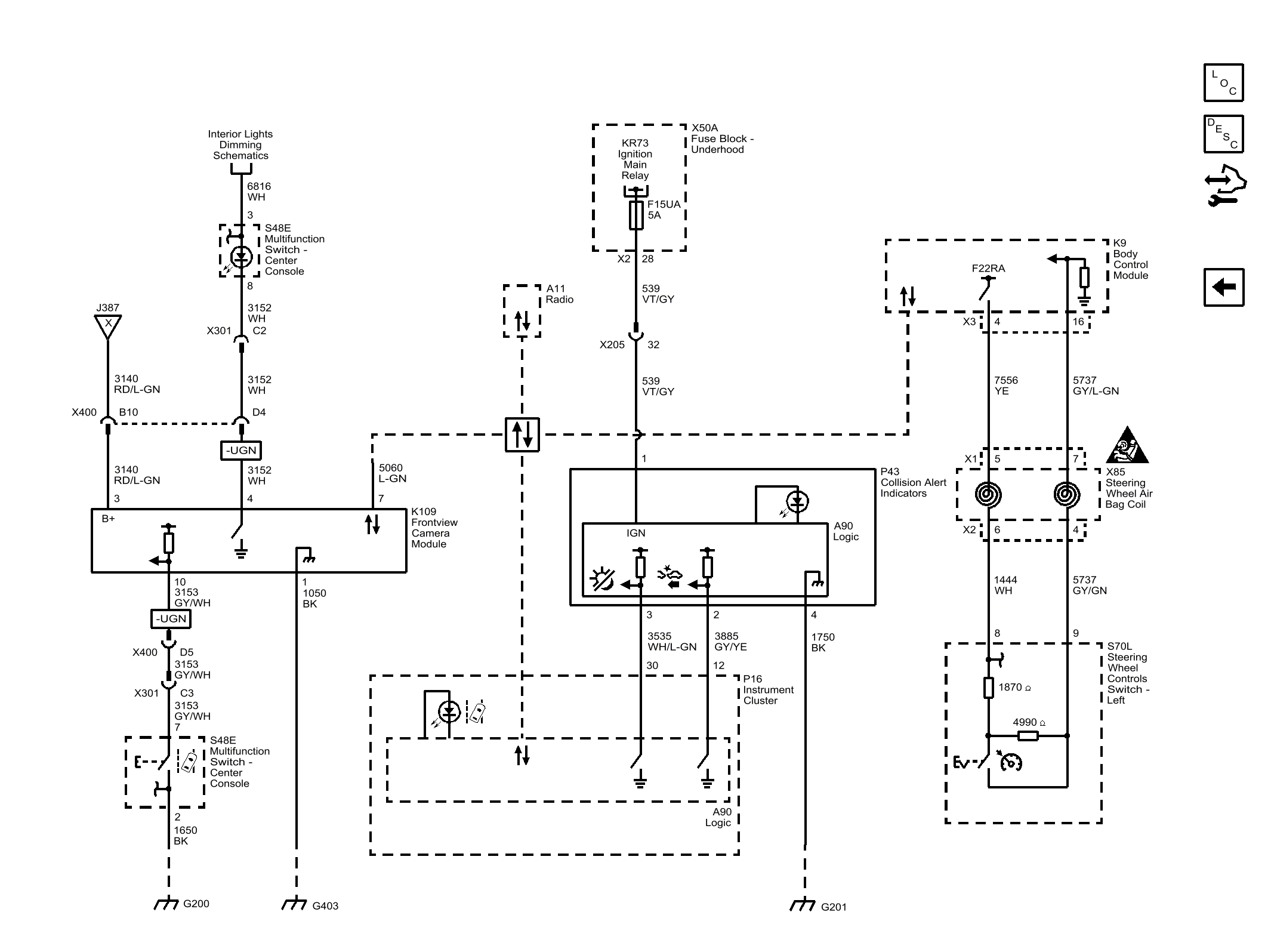

Fig 1: Lane Departure Warning (UFL) and Forward Collision Alert (UEU)
GM3755242Courtesy of GENERAL MOTORS COMPANY
