Passenger Door Power, Ground, And Subsystem References (Except KA1 Or KB6)

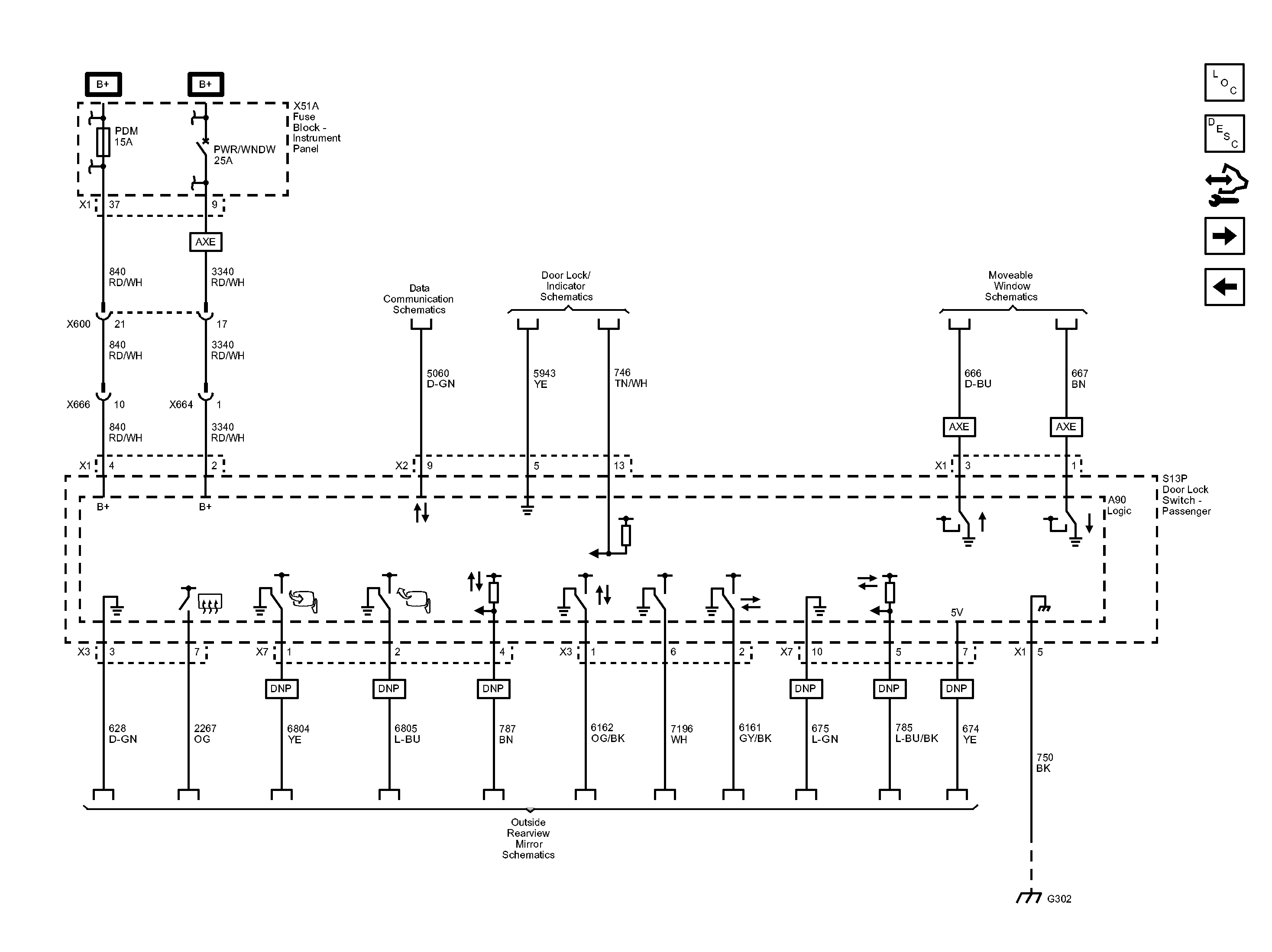

Fig 1: Passenger Door Power, Ground And Subsystem References (Except KA1 Or KB6) Wiring Schematic
GM2867174Courtesy of GENERAL MOTORS COMPANY
