Front Side Door Window Regulator Replacement (Manual)

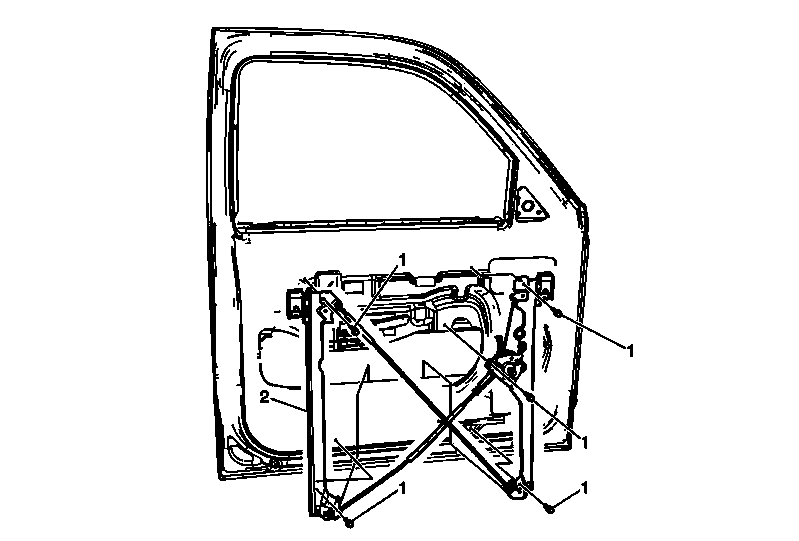

Fig 1: View Of Front Side Door Window Regulator (Manual)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the window handle and the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Window Regulator Bolts (Qty: 5) CAUTION: Refer to Fastener Caution . Procedure Remove the front side door water deflector. Position window to access the front side door window regulator guide bolts. Front window regulator guide nuts to window. Refer to Front Side Door Window Replacement . Loosen the nuts on the window regulator guide. Do Not remove from the guide. Raise the window to the fully up position, tape in place. Tighten 10 N.m (89 lb in)
2	Front Side Door Window Regulator

Callout

Component Name

Preliminary Procedures
Remove the window handle and the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .

Front Side Door Window Regulator Bolts (Qty: 5)

CAUTION:

Procedure

Remove the front side door water deflector.
Position window to access the front side door window regulator guide bolts.
Front window regulator guide nuts to window. Refer to Front Side Door Window Replacement .

Loosen the nuts on the window regulator guide. Do Not remove from the guide.
Raise the window to the fully up position, tape in place.

Tighten
10 N.m (89 lb in)

Front Side Door Window Regulator
