Front Side Door Window Outer Sealing Strip Replacement

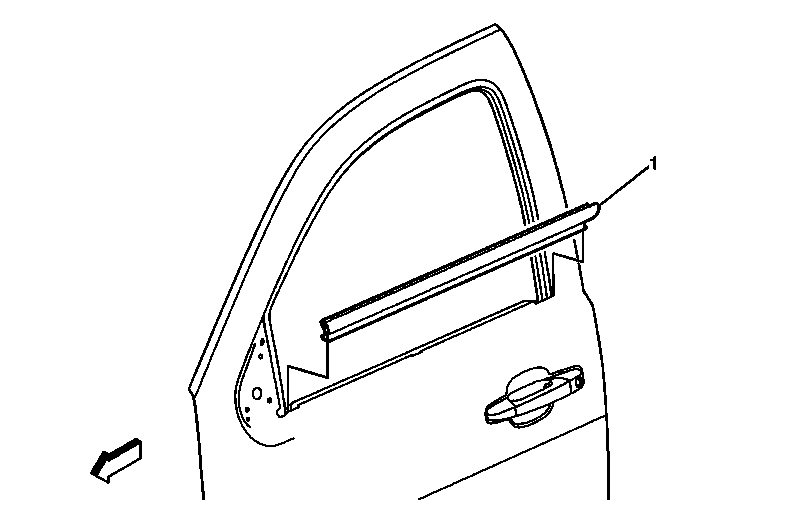

Fig 1: View Of Front Side Door Outer Belt Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the outside power mirror. Refer to Power Mirror Replacement .
1	Front Side Door Outer Belt Sealing Strip Procedure Lower the front side door window to the fully down position. Tape off the lower window frame to prevent damage to the door. Using a suitable tool, lift upward on the sealing strip end in order to unhook it from the door flange. Install the sealing strip to the door flange. Push downward until fully seated.

Callout

Component Name

WARNING:

Preliminary Procedure Remove the outside power mirror. Refer to Power Mirror Replacement .

Front Side Door Outer Belt Sealing Strip

Procedure

Lower the front side door window to the fully down position.
Tape off the lower window frame to prevent damage to the door.
Using a suitable tool, lift upward on the sealing strip end in order to unhook it from the door flange.
Install the sealing strip to the door flange. Push downward until fully seated.
