Installation Procedure

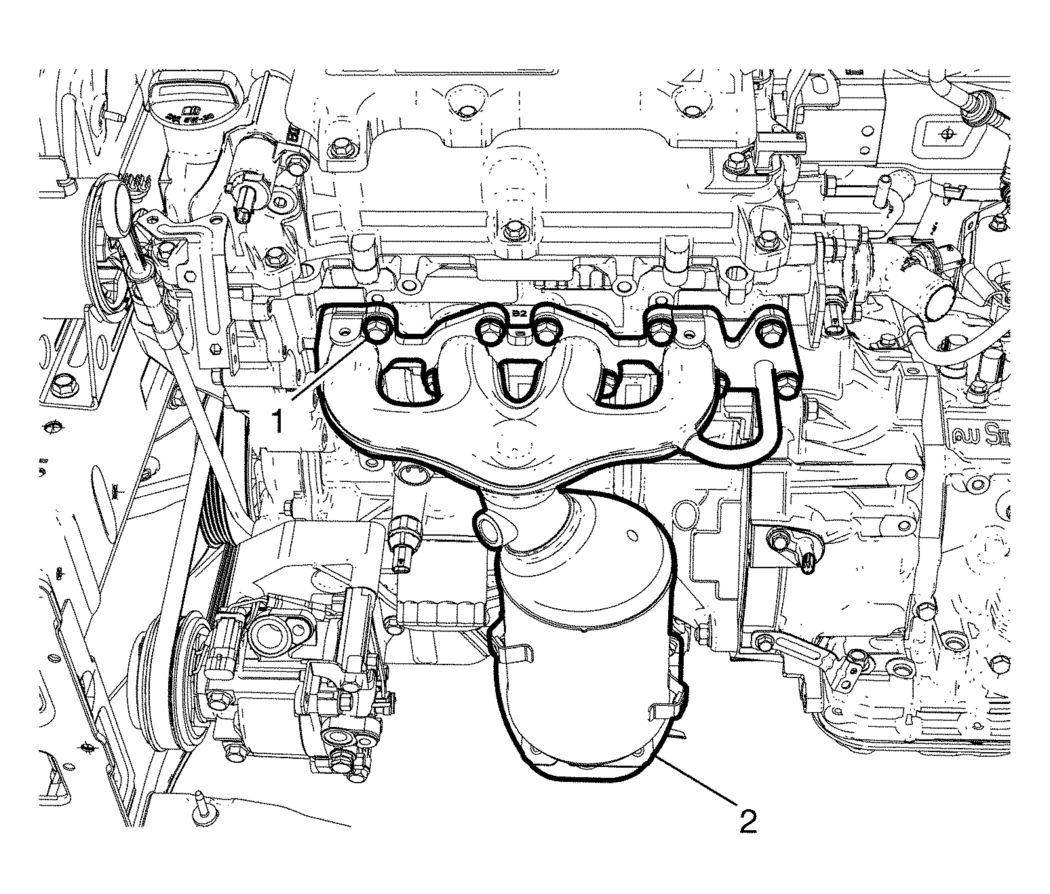

    Fig 1: Exhaust Manifold Bolt
    GM2753637Courtesy of GENERAL MOTORS COMPANY
  1. Install the exhaust manifold (2) and gasket.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 10 exhaust manifold bolt (1) and tighten to 20 (15 lb ft).
  3. Raise the vehicle by its full height. Refer to Lifting and Jacking the Vehicle .

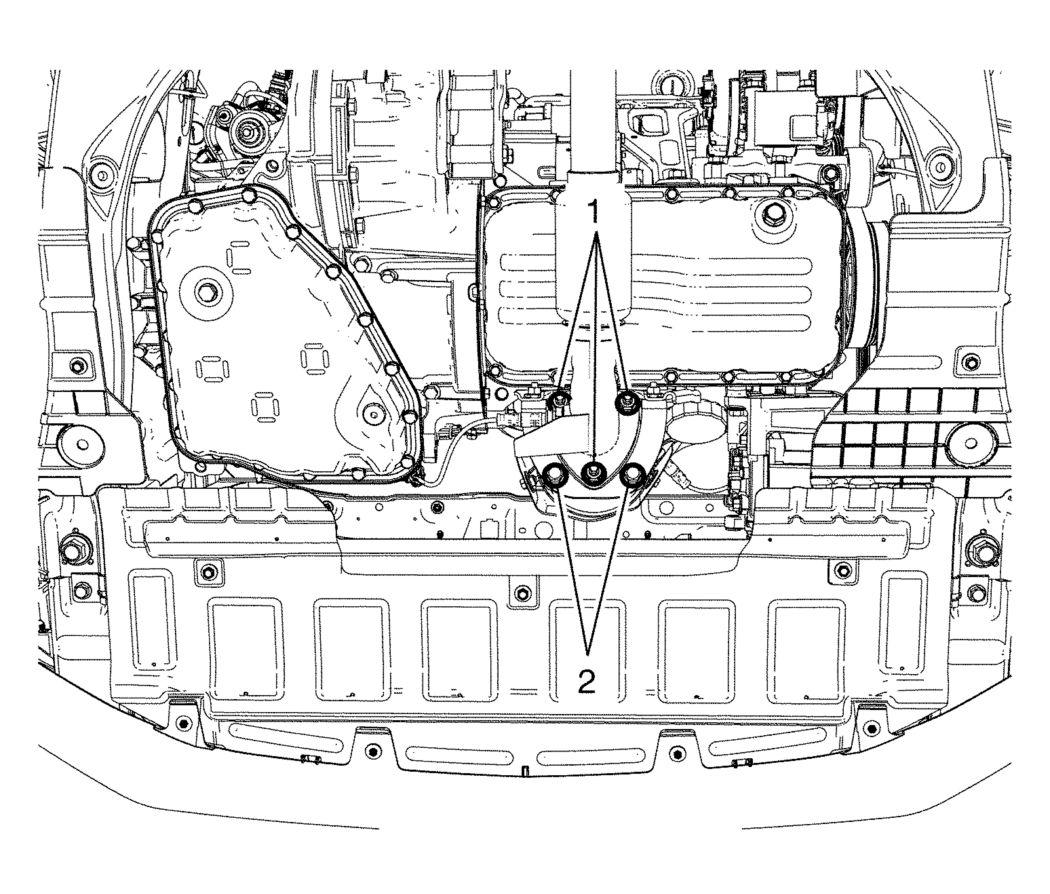

    4. Fig 2: Exhaust Manifold Pipe Nut
    GM2753671Courtesy of GENERAL MOTORS COMPANY
  4. Install the exhaust manifold pipe gasket.
  5. Install the exhaust manifold pipe nut (1) and tighten to 46 (34 lb ft).
  6. Install the exhaust manifold bracket bolts (2) and tighten to 46 (34 lb ft).
  7. Install the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement .
