Steering Wheel Replacement

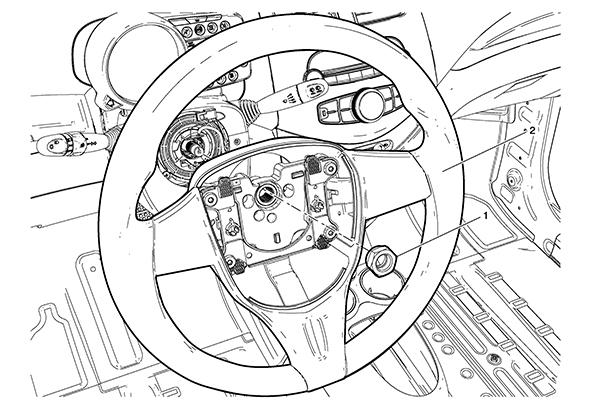

Fig 1: Steering Wheel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .
1	Steering Wheel Bolt CAUTION: Refer to Fastener Caution . Tighten 38 (28 lb ft)
2	Steering Wheel Procedure Disconnect the electrical connectors as needed. Using the CH-50168-A steering wheel puller, remove the steering wheel carefully. Special Tools CH-50168-A Steering Wheel Puller For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .

Steering Wheel Bolt

CAUTION:

Tighten
38 (28 lb ft)

Steering Wheel

Procedure

Disconnect the electrical connectors as needed.
Using the CH-50168-A steering wheel puller, remove the steering wheel carefully.

Special Tools
CH-50168-A Steering Wheel Puller
For equivalent regional tools, refer to Special Tools .
