Installation Procedure

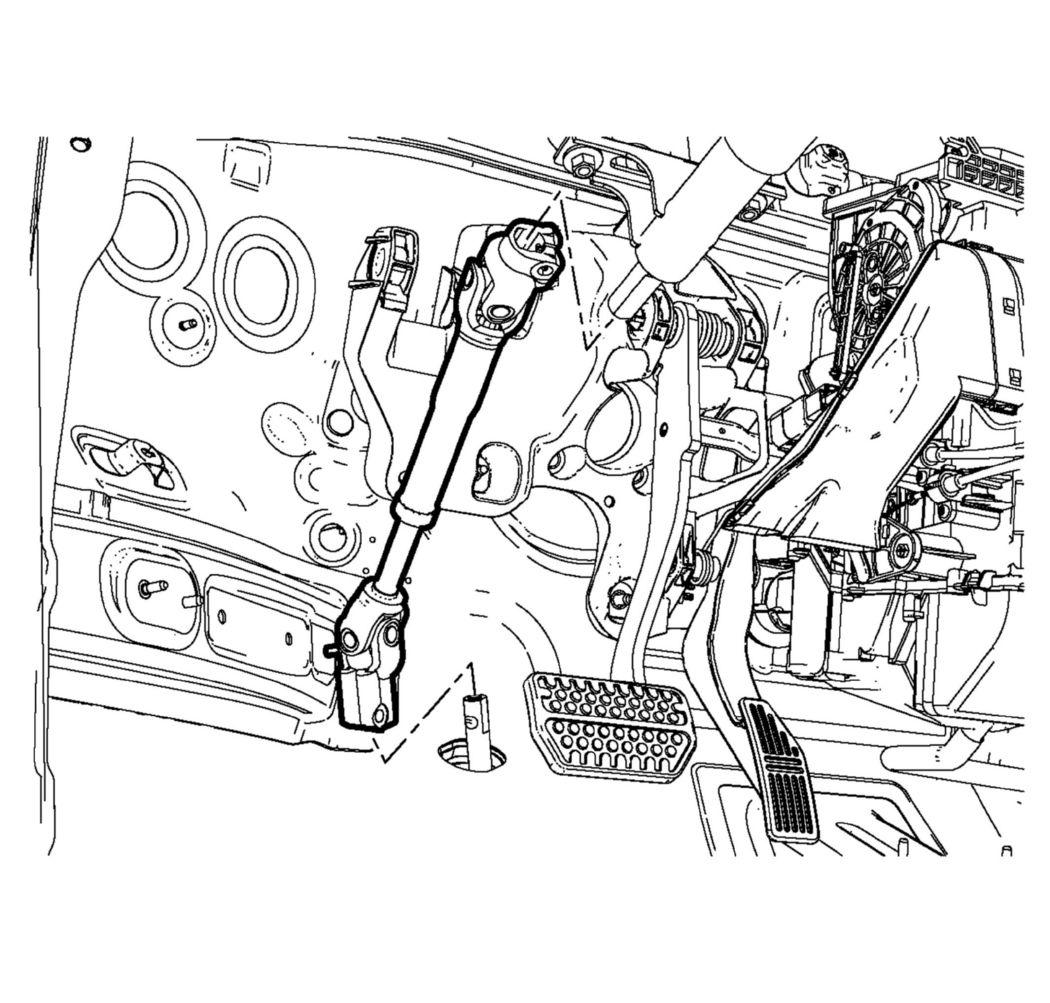

    Fig 1: Intermediate Steering Shaft
    GM2308571Courtesy of GENERAL MOTORS COMPANY
  1. Install the intermediate steering shaft.
    2. Fig 2: Universal Joint And Steering Pinion Attachment Points
    GM2027664Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The recess (2) of the fine toothing in the universal joint have to align precisely with the recess (1) of the fine toothing on the steering pinion. The bore in the universal joint have to align with the groove on the steering pinion (3).

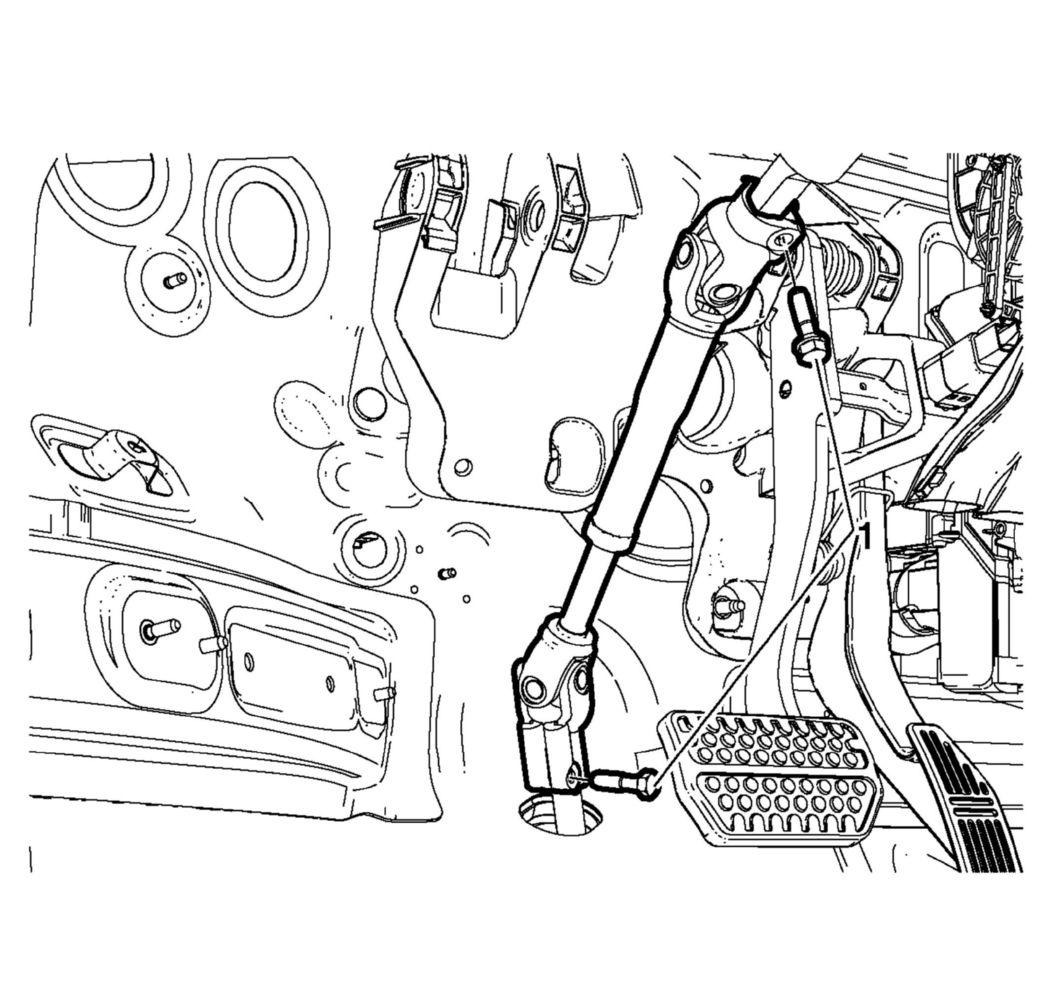

    Fig 3: Intermediate Steering Shaft Bolts
    GM2308569Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 intermediate steering shaft bolts (1) and tighten the intermediate steering shaft bolts to 25 N.m (18 lb ft).
