Radio Antenna Base Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

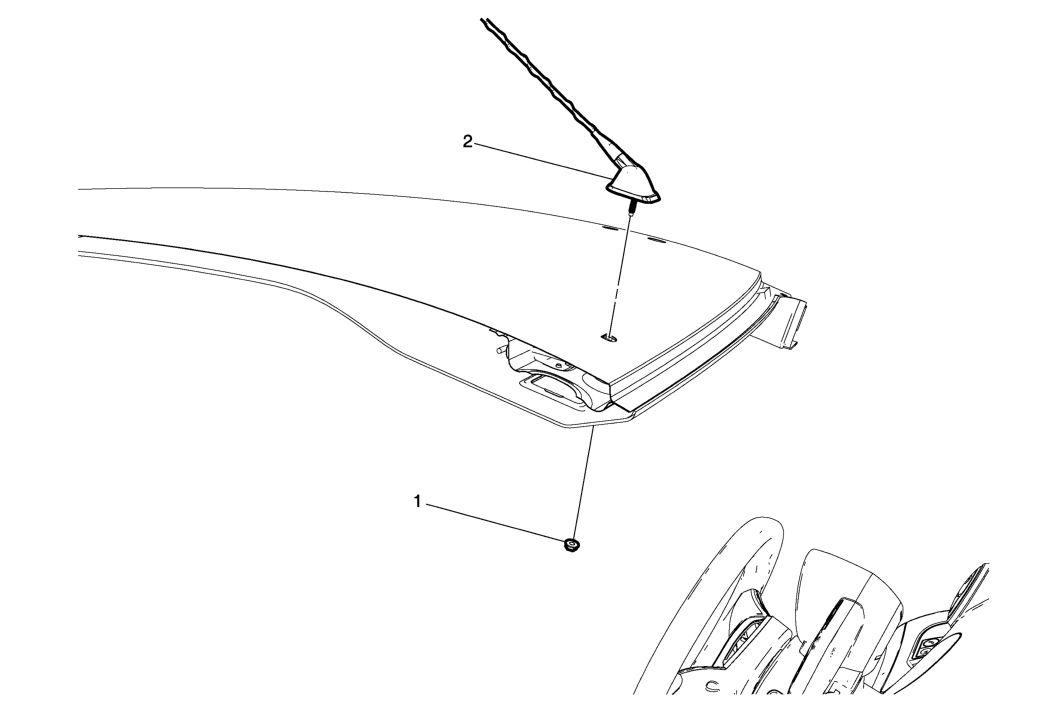

Fig 1: Radio Antenna Base

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the dome lamp. Refer to .
1	Radio Antenna Base Nut CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Radio Antenna Base Procedure Disconnect electrical connector. Remove the antenna base from the roof panel.

Callout

Component Name

Preliminary Procedures
Remove the dome lamp. Refer to .

Radio Antenna Base Nut

CAUTION:

Refer to Fastener Caution .

Tighten
3 N.m (27 lb in)

Radio Antenna Base

Procedure

Disconnect electrical connector.
Remove the antenna base from the roof panel.
