Headlamp Bulb Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

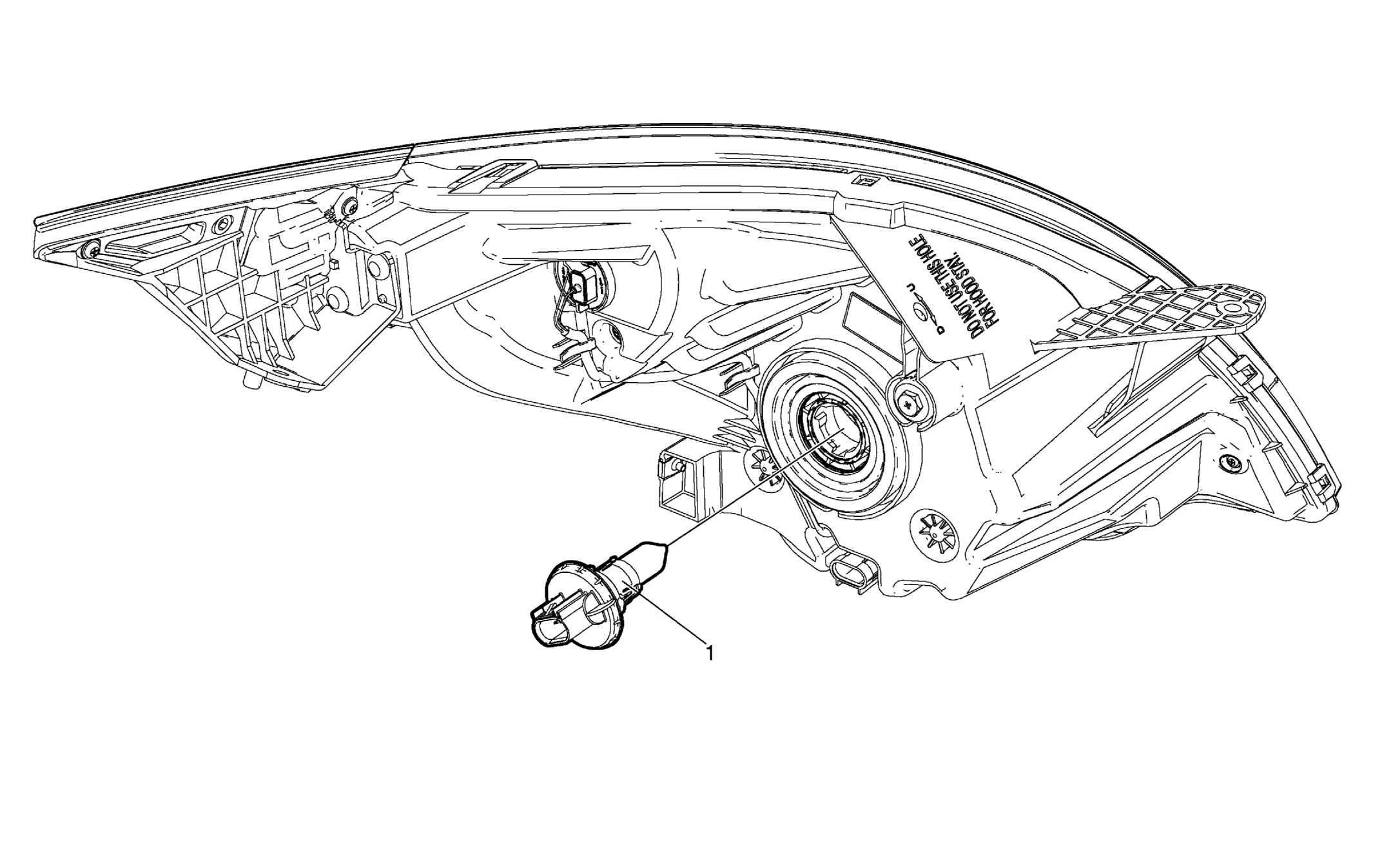

Fig 1: Headlamp Bulb
GM2754172Courtesy of GENERAL MOTORS COMPANY
Headlamp Bulb Replacement

Callout Component Name
1 Headlamp Bulb
WARNING:

Refer to Halogen Bulb Warning .

Procedure

  1. Disconnect electrical connector.
  2. Rotate the headlamp bulb counterclockwise to remove from the headlamp.
