Front Fog Lamp Cover Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

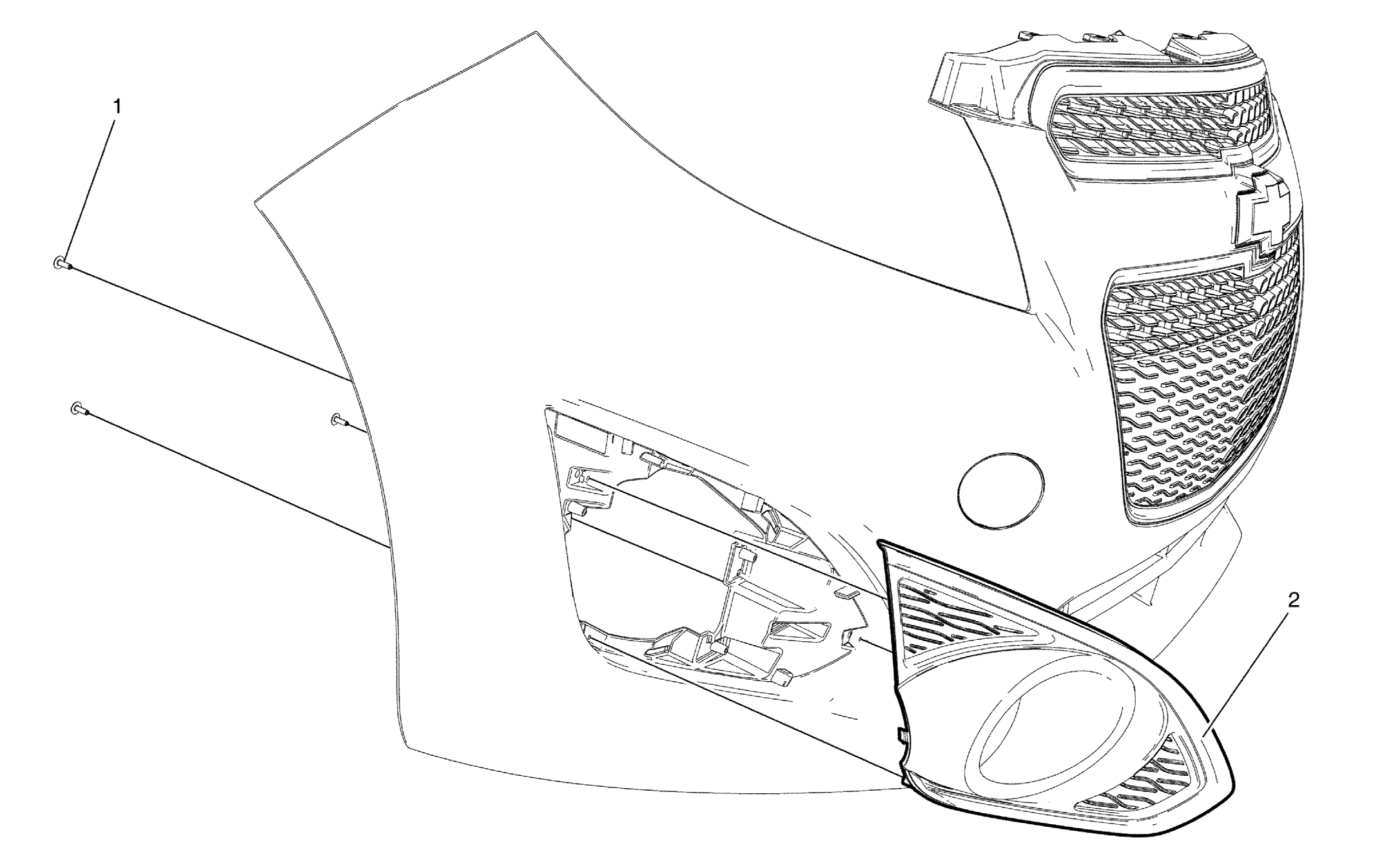

Fig 1: Front Fog Lamp Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Fog Lamp Cover Screw CAUTION: Refer to Fastener Caution . Tighten 2 (18 lb in)
2	Front Fog Lamp Cover Procedure Lift the vehicle. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Release the cover taps. Remove the front fog lamp cover.

Callout

Component Name

Front Fog Lamp Cover Screw

CAUTION:

Refer to Fastener Caution .

Tighten
2 (18 lb in)

Front Fog Lamp Cover

Procedure

Lift the vehicle.
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Release the cover taps.
Remove the front fog lamp cover.
