Center Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

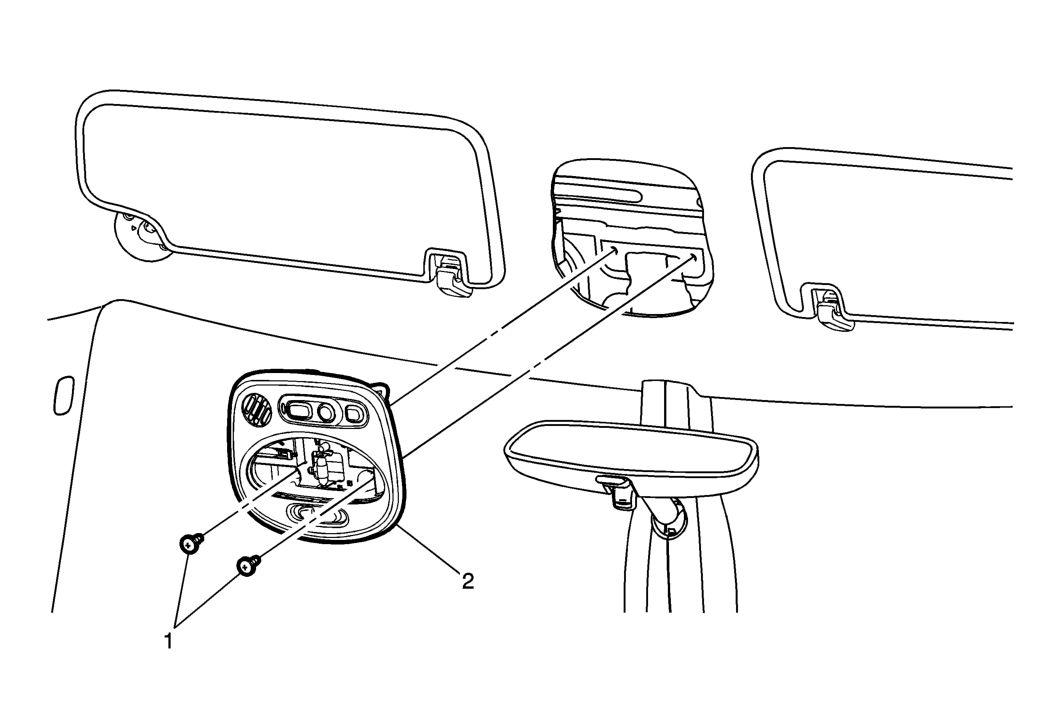

Fig 1: Center Courtesy Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the center courtesy lamp lens. Refer to .
1	Center Courtesy Lamp Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Center Courtesy Lamp Procedure Disconnect the electrical connections.
