High Speed GMLAN Bus 2 Wiring Schematics

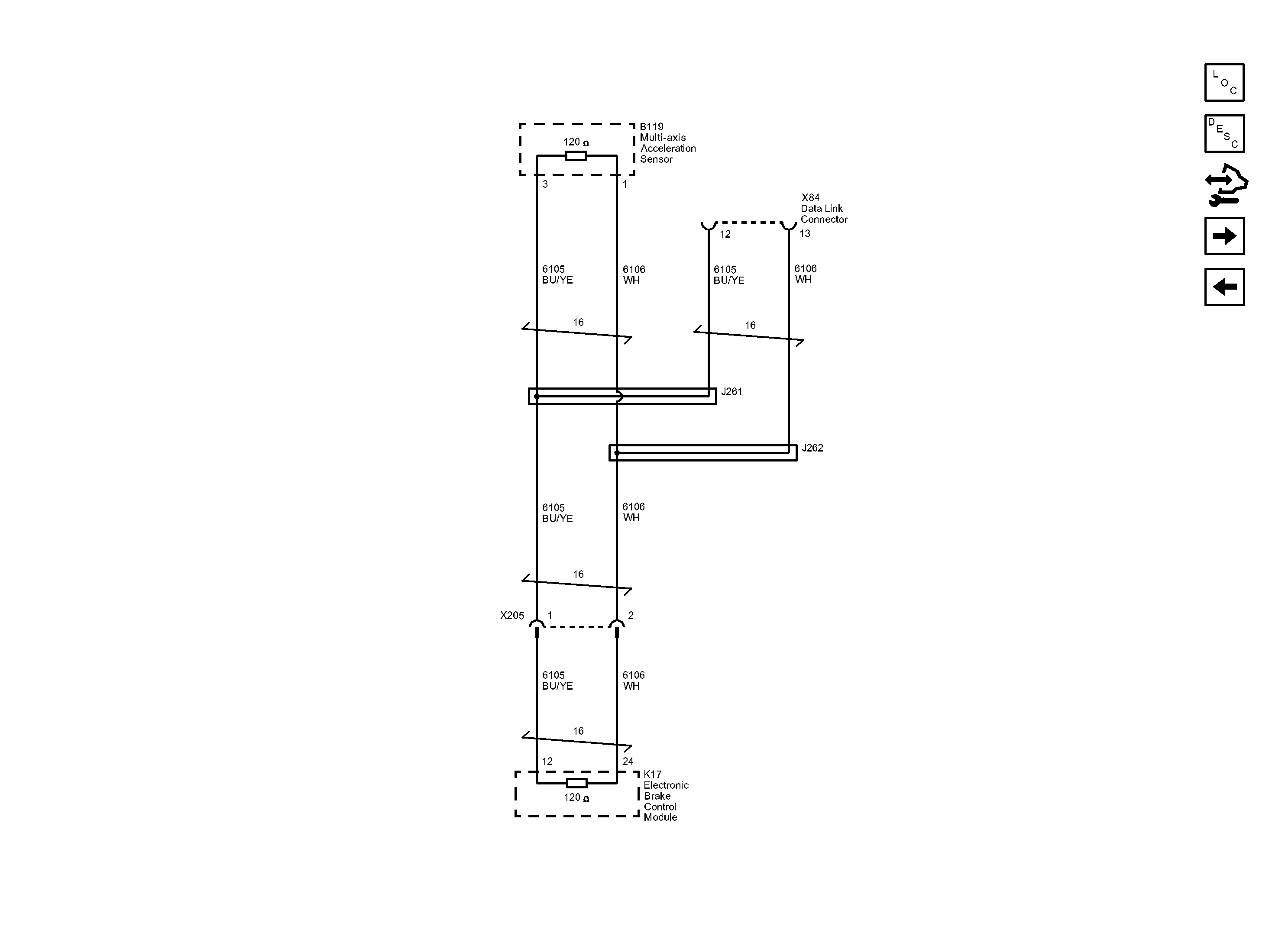

Fig 1: High Speed GMLAN Bus 2 Wiring Schematics

GM2742978

Courtesy of GENERAL MOTORS COMPANY
