Rear and Right of Engine Components (MX2)

Rear and Right of Engine Components (MX2)

Items
1:  B75B Mass Air Flow/Intake Air Temperature Sensor B75B Mass Air Flow Intake Air Temperature Sensor
2:  Q38 Throttle Body Q38 Throttle Body
3:  B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor
4:  Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve Intake
5:  Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve Exhaust
6:  B1 A/C Refrigerant Pressure Sensor (C60) B1 A/C Refrigerant Pressure Sensor
7:  Q2 A/C Compressor Clutch (C60) Q2 AC Compressor Clutch
8:  B68 Knock Sensor B68 Knock Sensor
9:  M64 Starter Motor M64 Starter Motor

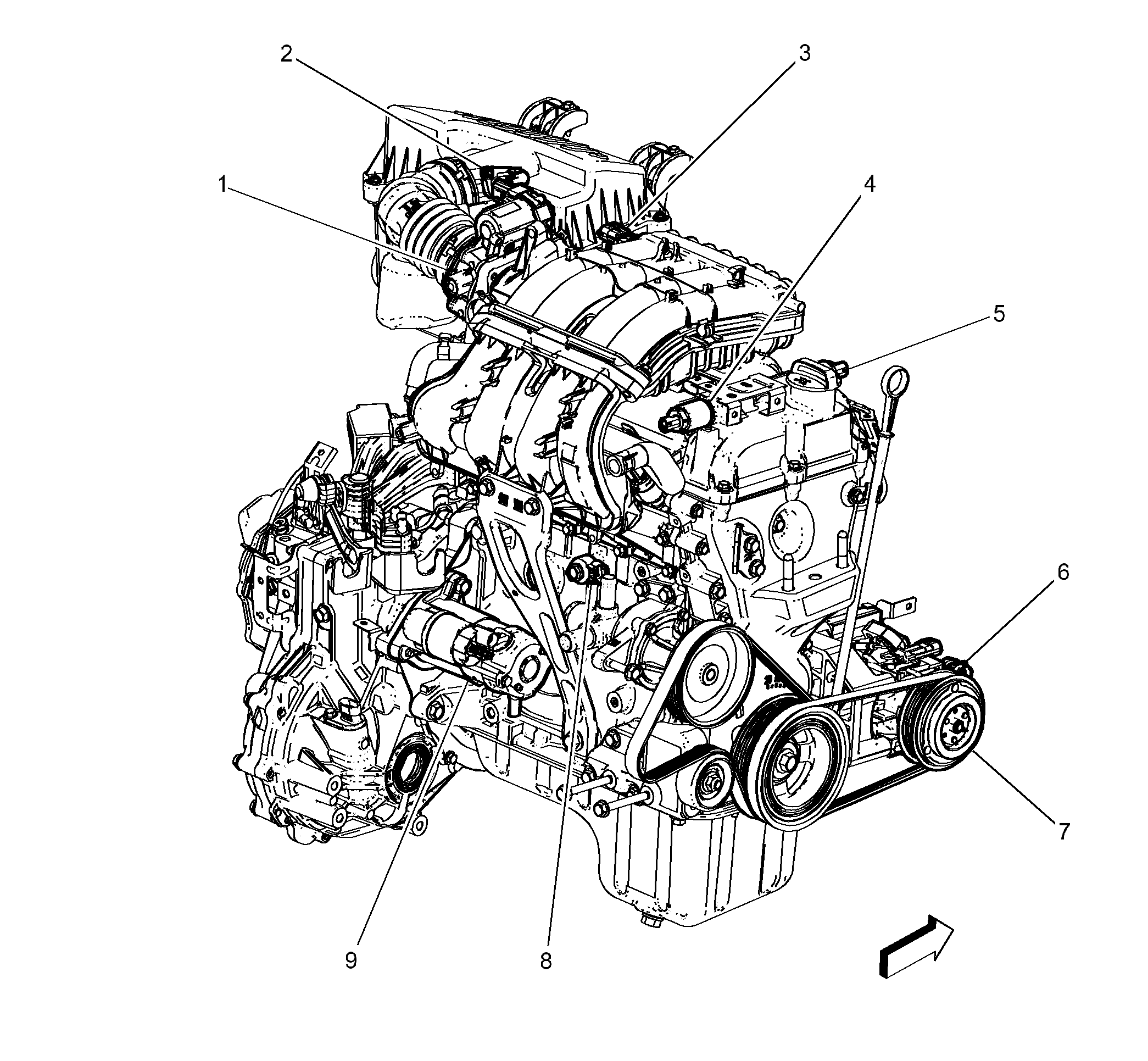

Fig 1: Rear and Right of Engine Components (MX2)
GM2772421Courtesy of GENERAL MOTORS COMPANY
