Installation Procedure

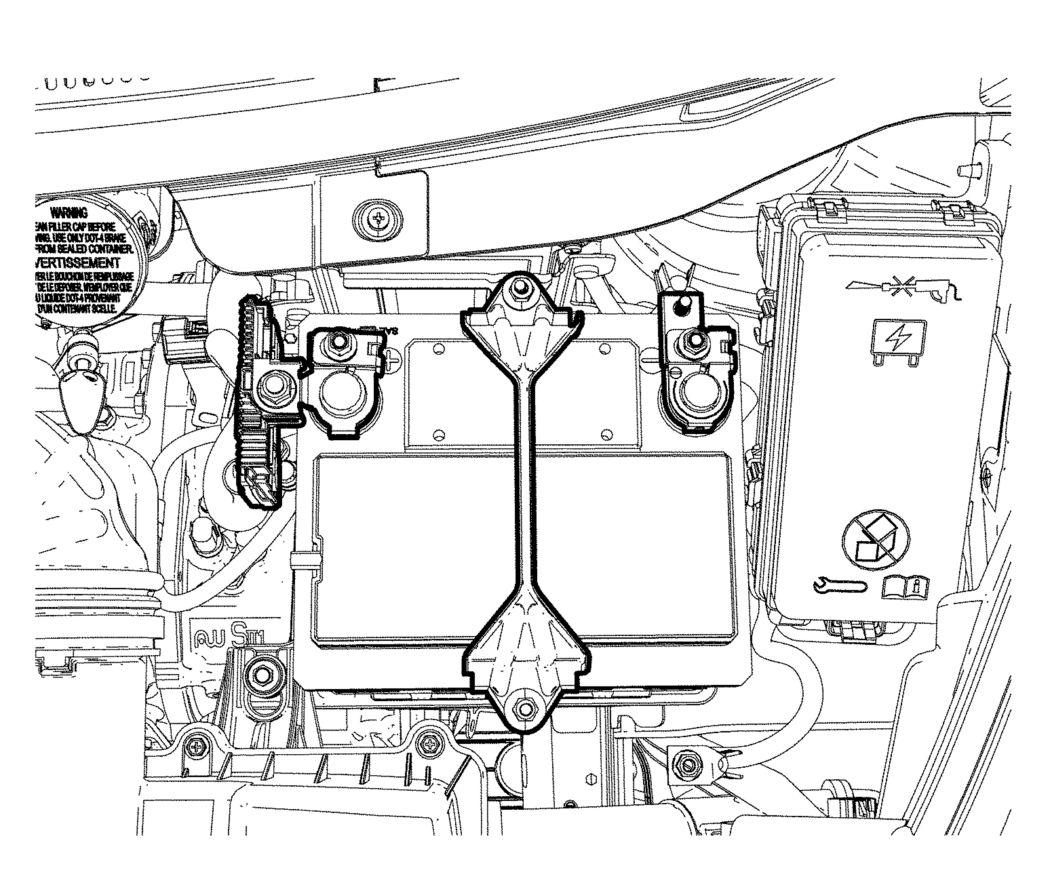

    Fig 1: Negative Battery Cable And Cable Nut
    GM2753206Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the battery holder and tighten the retaining nut to 6 (53 lb in).
  3. Connect the battery cable.
