Removal Procedure

    Fig 1: Negative Battery Cable
    GM2327628Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Defroster Outlet Warning .

  1. Disconnect the negative battery cable.
  2. Disconnect the rear window defogger electrical connectors.

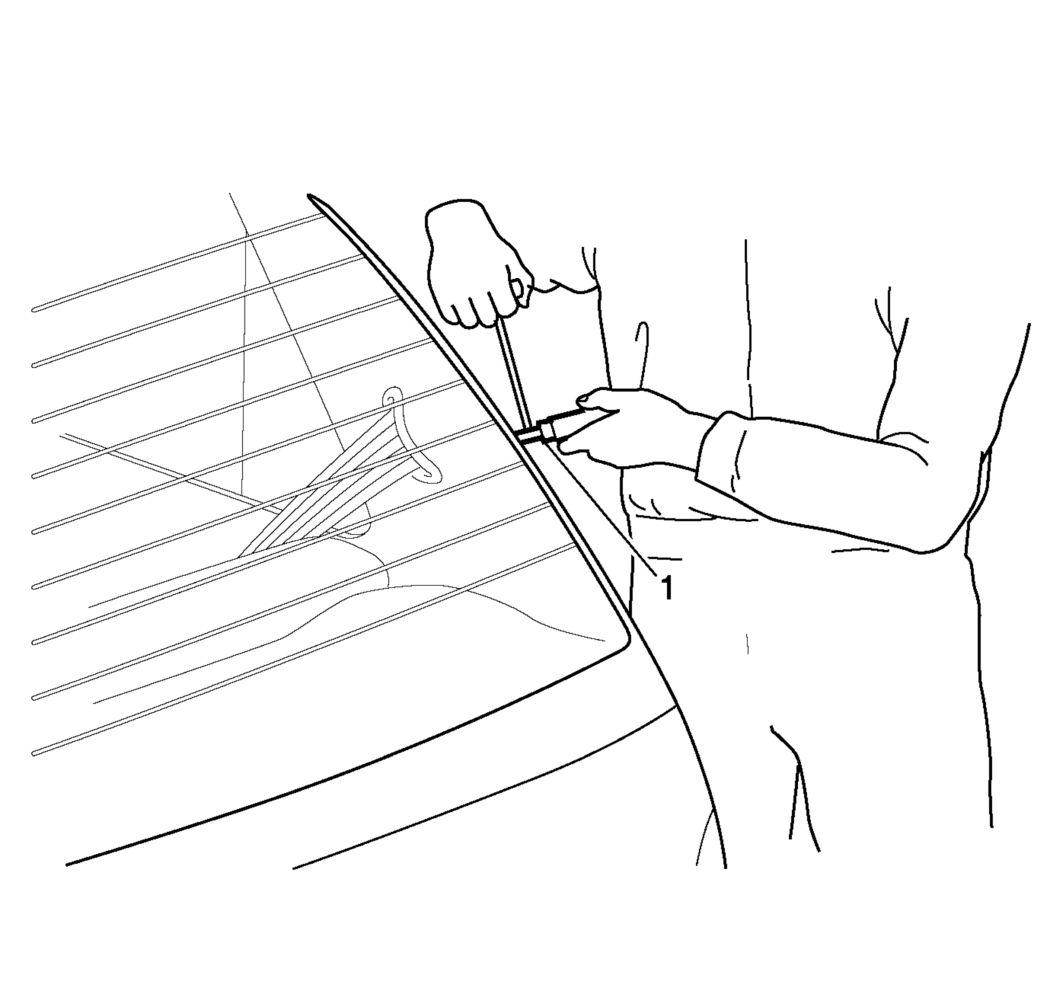

    3. Fig 2: Cutting Adhesive Around Rear Window Glass
    GM2327626Courtesy of GENERAL MOTORS COMPANY
  3. Using the J-24402  glass sealant remover (1), cut the adhesive around the rear window glass.
    4. Fig 3: Removing Windshield From Vehicle
    GM2327634Courtesy of GENERAL MOTORS COMPANY
  4. Remove the rear window glass from the vehicle.
  5. Using a knife, remove the adhesive from the rear window glass.
