Steering Wheel Controls Wiring Schematics

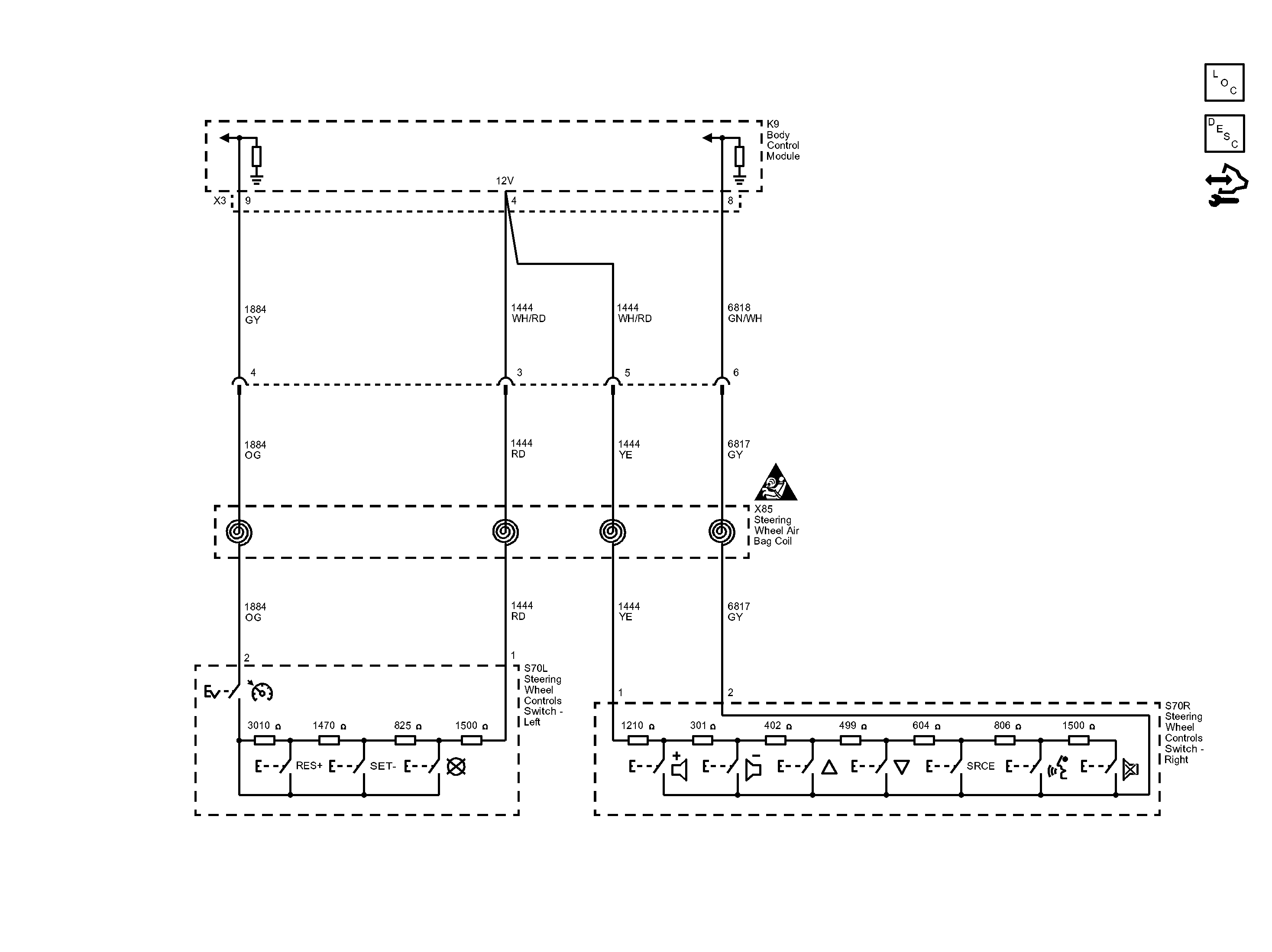

Fig 1: Steering Wheel Controls Wiring Schematics

GM3020936

Courtesy of GENERAL MOTORS COMPANY
