Steering Wheel Control Switch Assembly Replacement

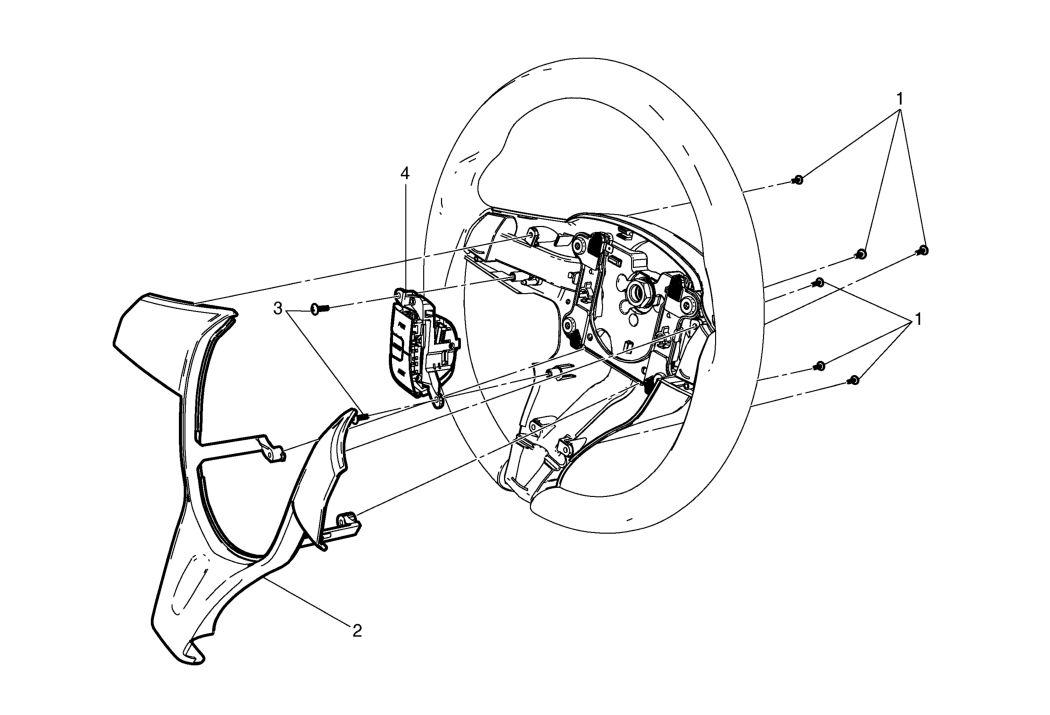

Fig 1: Steering Wheel Control Switch Assembly
GM2351387Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Control Switch Assembly Replacement

Callout Component Name
Preliminary Procedure
Remove the driver airbag module. Refer to Airbag Steering Wheel Module Replacement .
1 Steering Wheel Trim Cover Screw (Qty: 6)
2 Steering Wheel Trim Cover
3 Steering Wheel Control Switch Screw (Qty: 2)
4 Steering Wheel Control Switch Assembly

Procedure

  1. Remove the rear object alarm.
  2. Disconnect the electrical connector.
