Installation Procedure

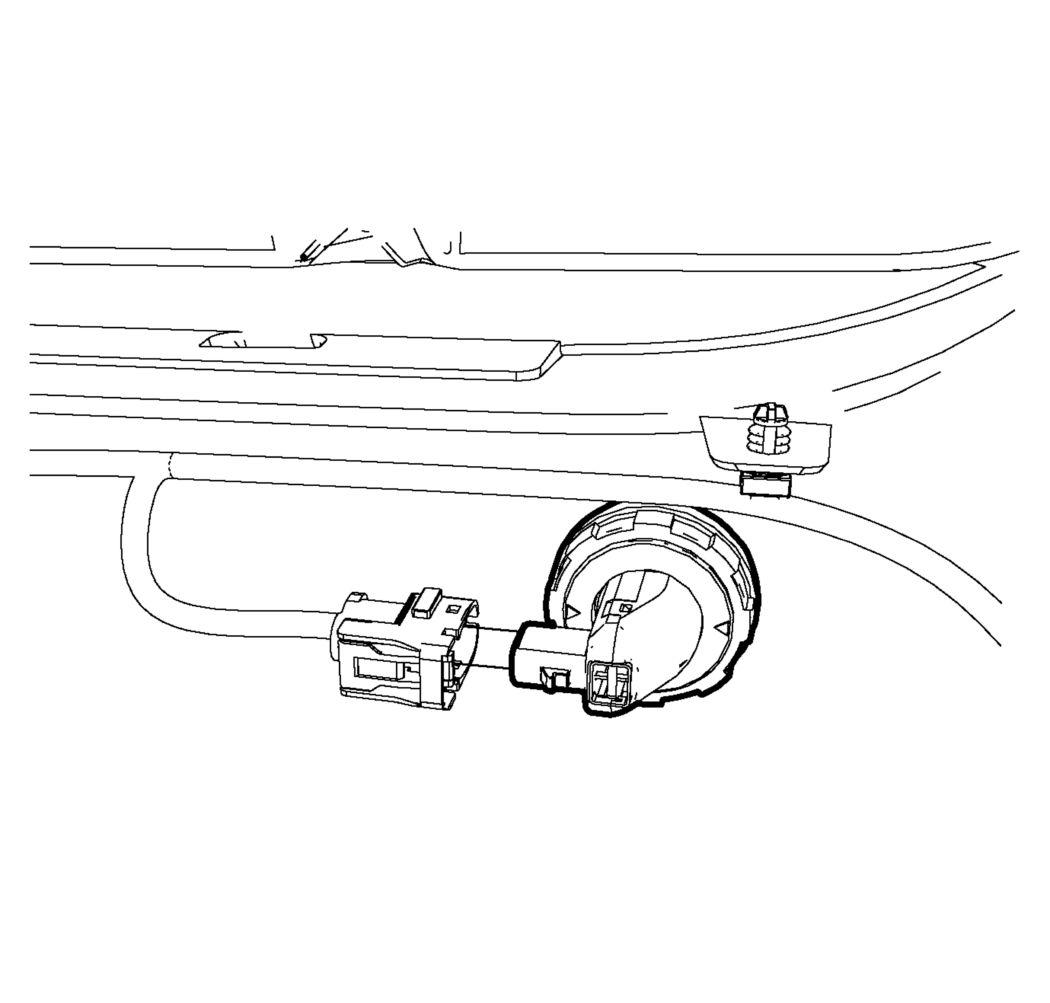

    Fig 1: Rear Bumper Fascia
    GM2327692Courtesy of GENERAL MOTORS COMPANY
  1. Insert the sensor into the housing and lock the sensor by rotating the housing clockwise.
  2. Connect the electrical connector to the rear object sensor.
  3. Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
