Installation Procedure

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear brake caliper bracket.

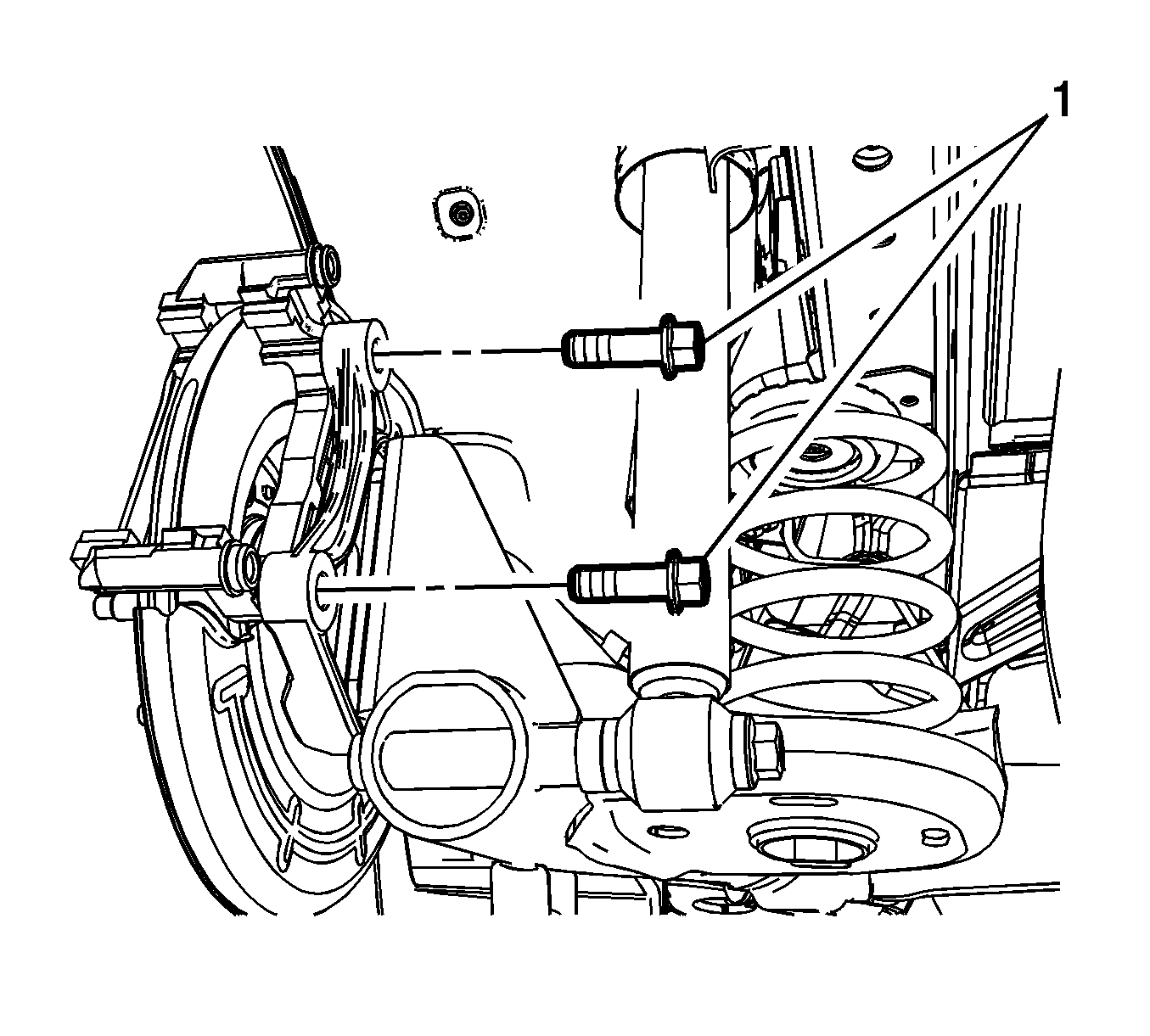

Fig 1: Brake Caliper Bracket Bolts

Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .

Install new brake caliper bracket bolts (1) and tighten to 100 (74 lb ft).

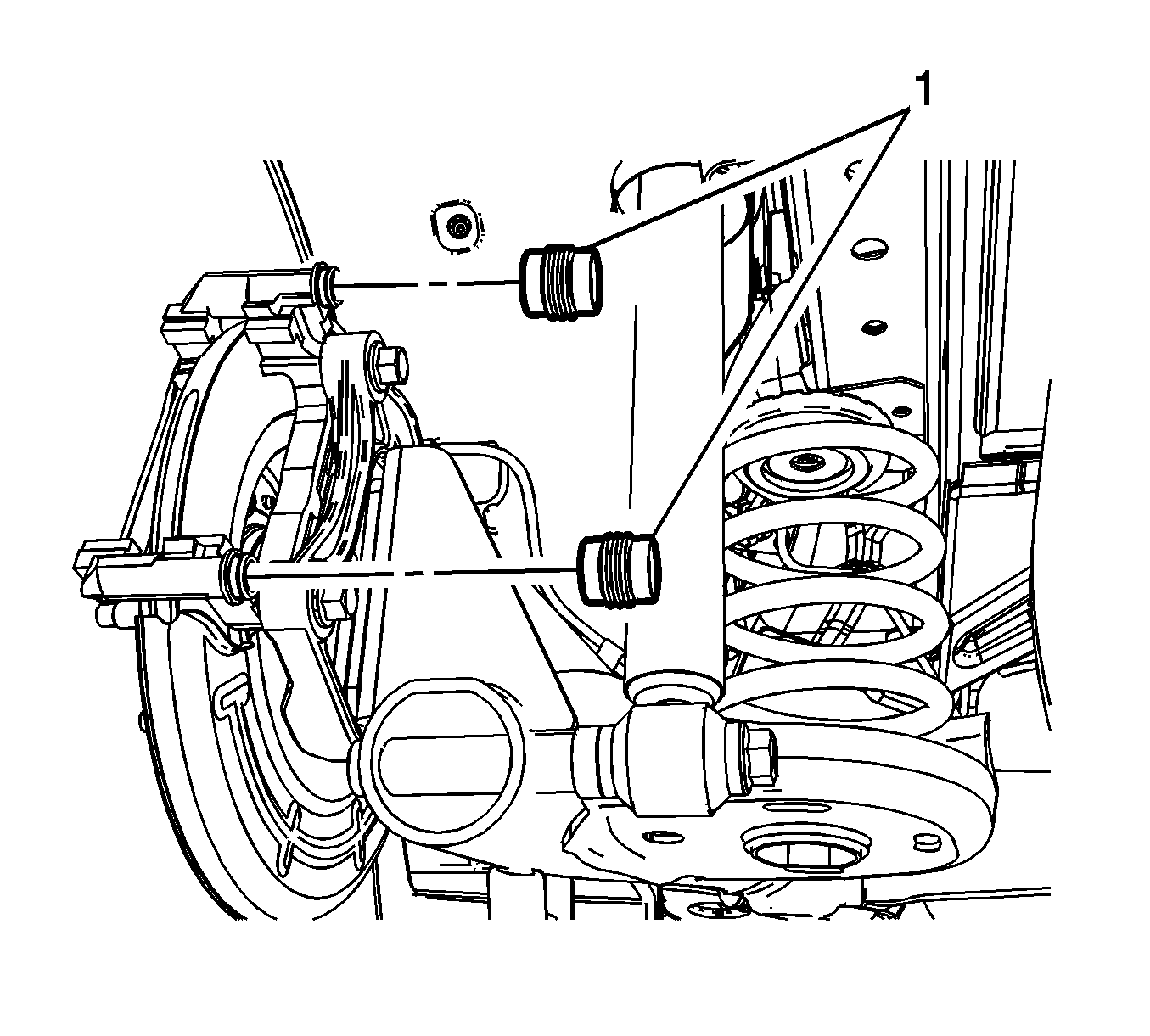

Fig 2: Brake Caliper Guide Pin Seals

Courtesy of GENERAL MOTORS COMPANY

NOTE: Ensure the brake caliper guide pin seals are fully seated in the groove of the brake caliper bracket.

Install the brake caliper guide pin seals (1).

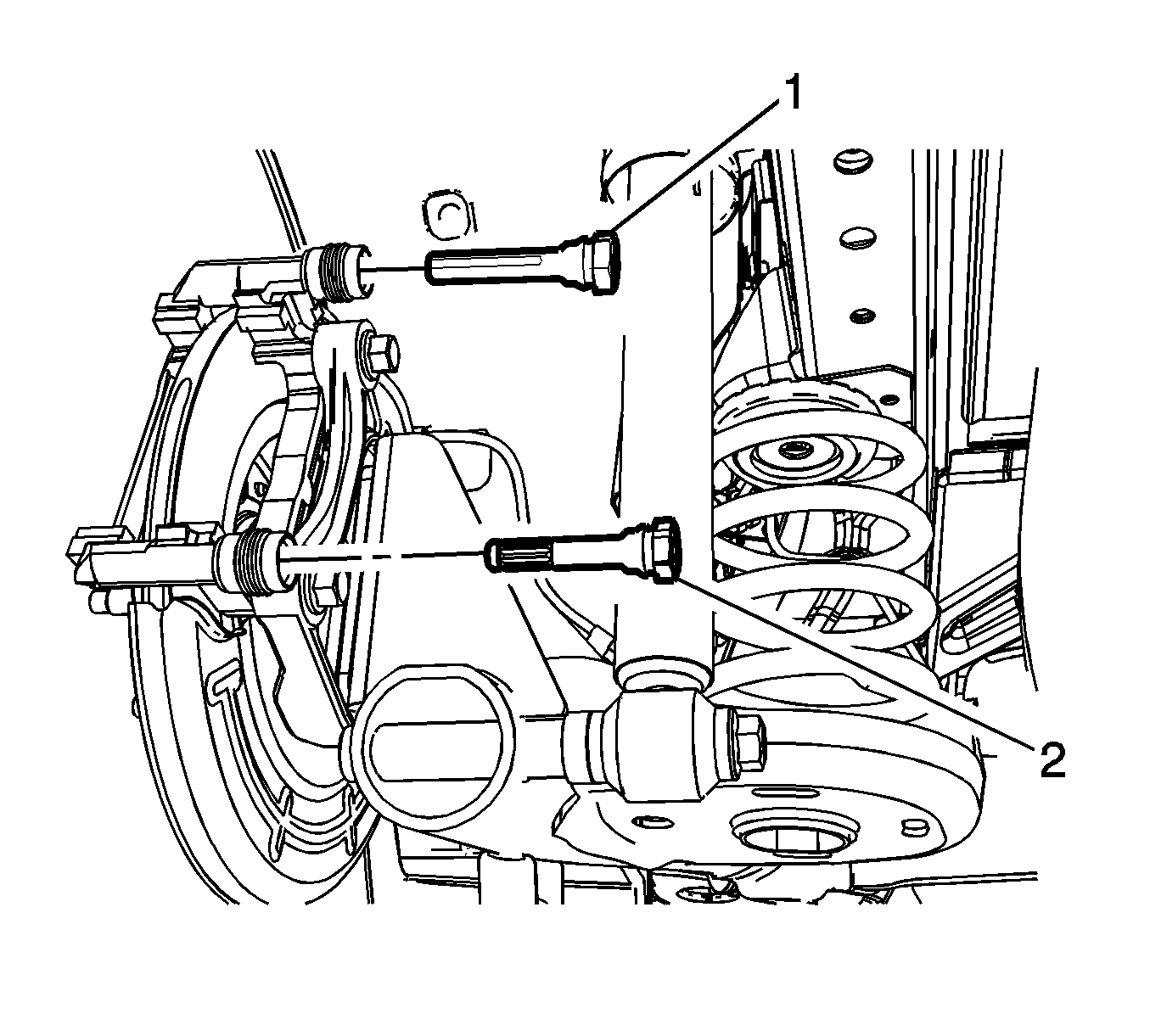

Fig 3: Caliper Guide Pins

Courtesy of GENERAL MOTORS COMPANY

Install the upper brake caliper guide pin (1).
Install the lower brake caliper guide pin (2).
NOTE: The lower brake caliper guide pin is equipped with a bushing and must be installed in the same location.

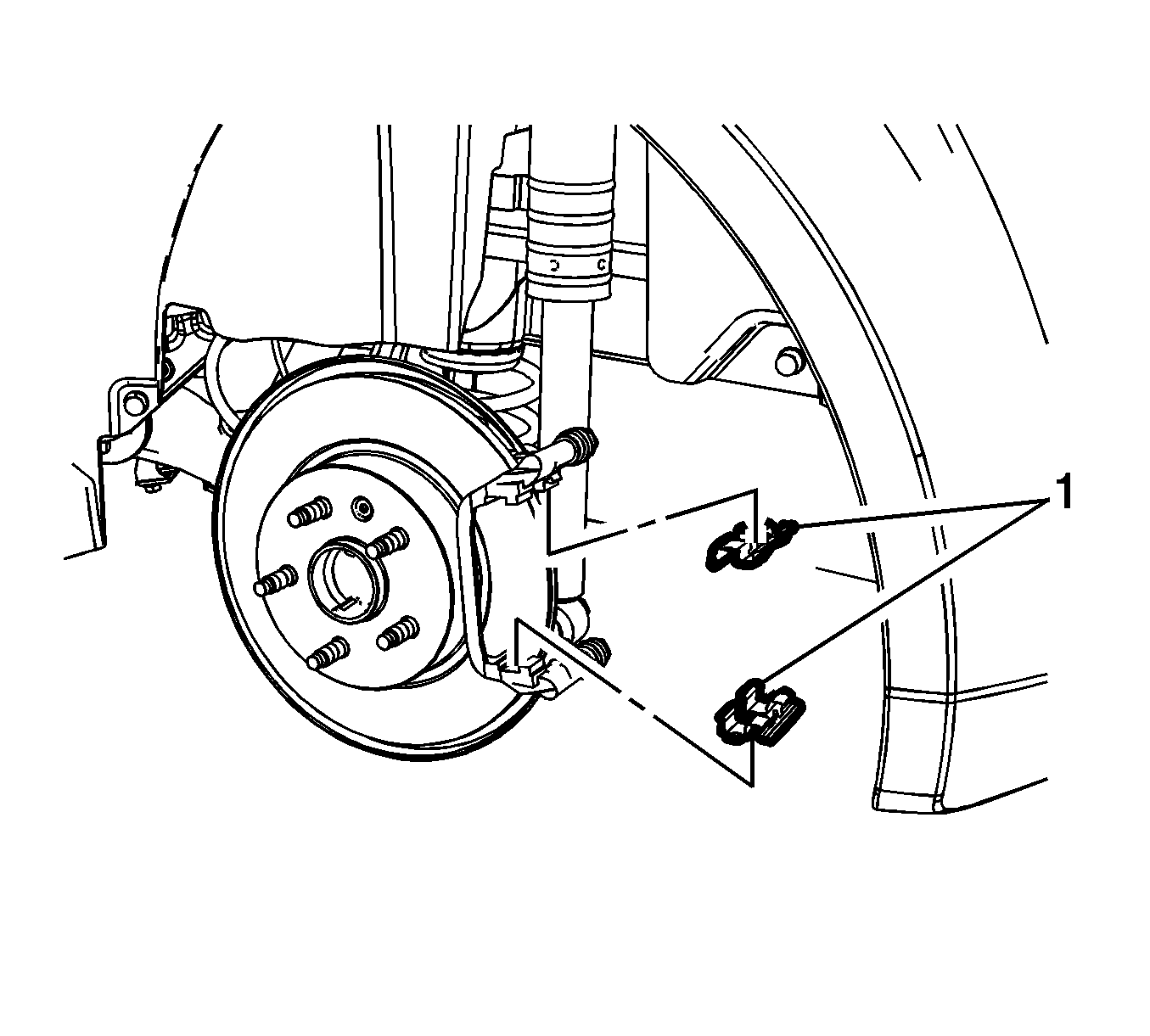

Fig 4: Disc Brake Pad Springs

Courtesy of GENERAL MOTORS COMPANY

Install the disc brake pad springs (1).

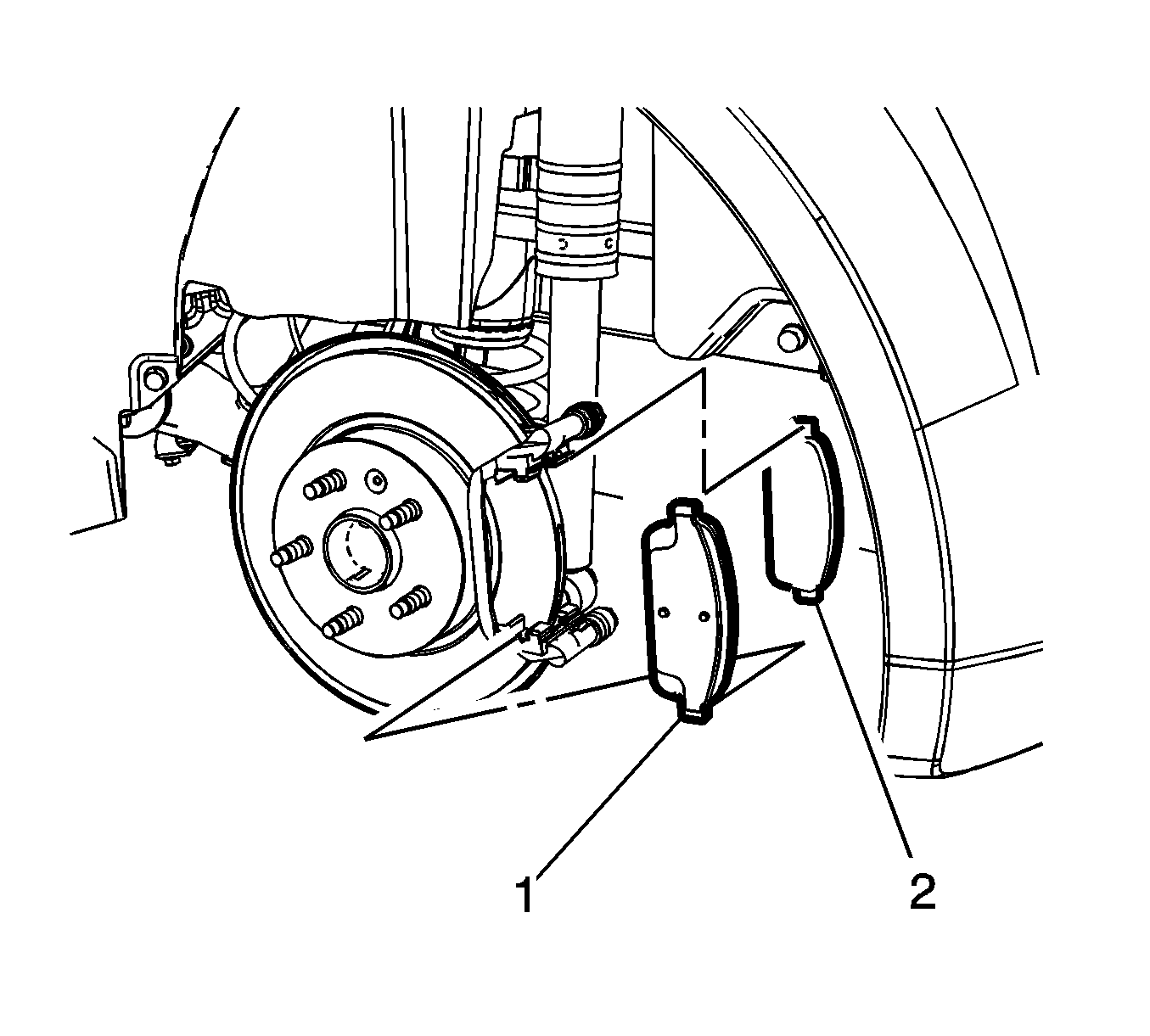

Fig 5: Disc Brake Pads

Courtesy of GENERAL MOTORS COMPANY

Install the outer disc brake pad (1).
Install the inner disc brake pad (2).
Position the brake caliper over the disc brake pads and to the brake caliper bracket.

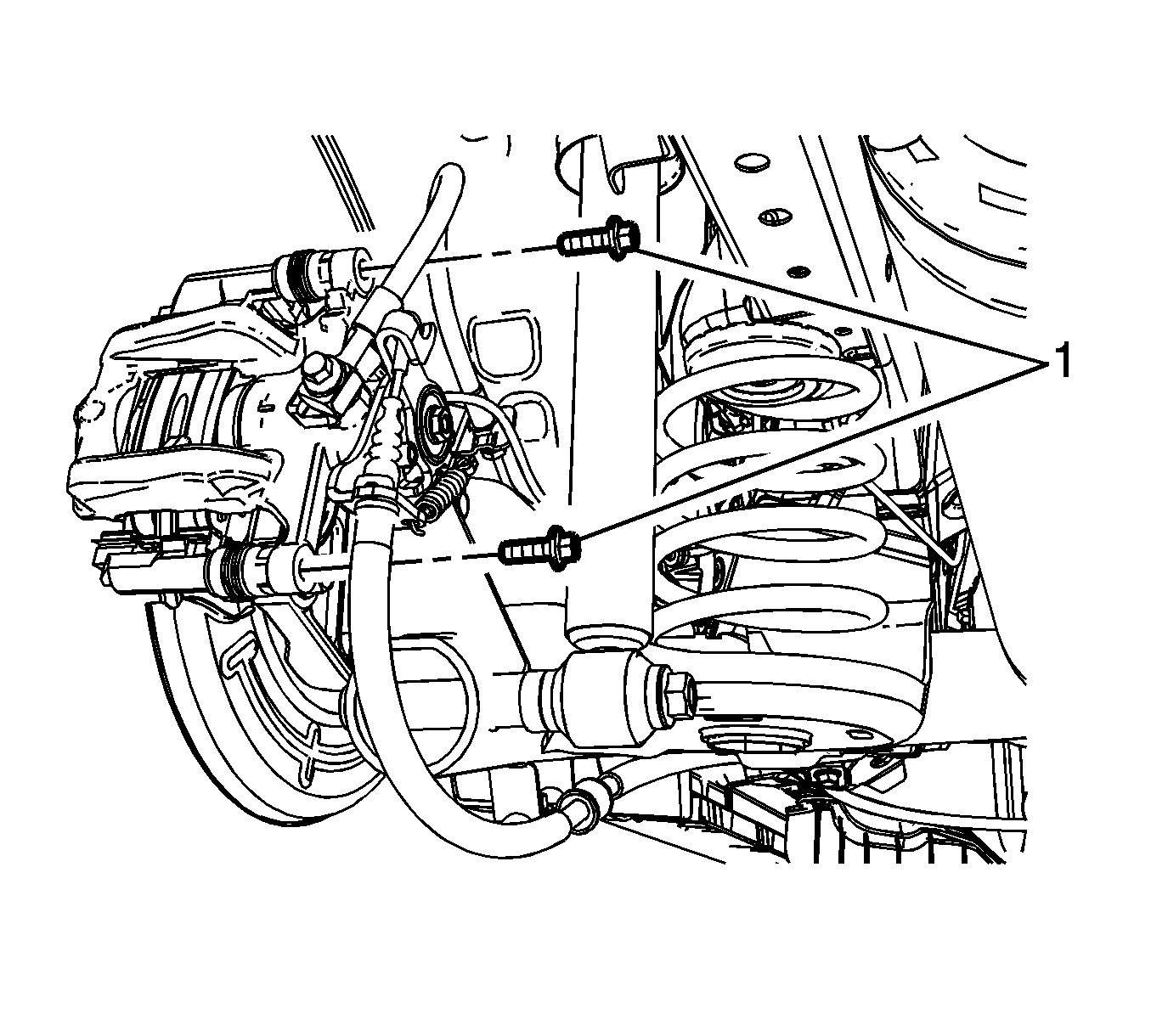

Fig 6: Brake Caliper Guide Pin Bolts

Courtesy of GENERAL MOTORS COMPANY

Using a backup wrench to hold the brake caliper guide pins stationary, install the brake caliper guide pin bolts (1) and tighten to 28 N.m (21 lb ft).
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
