Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

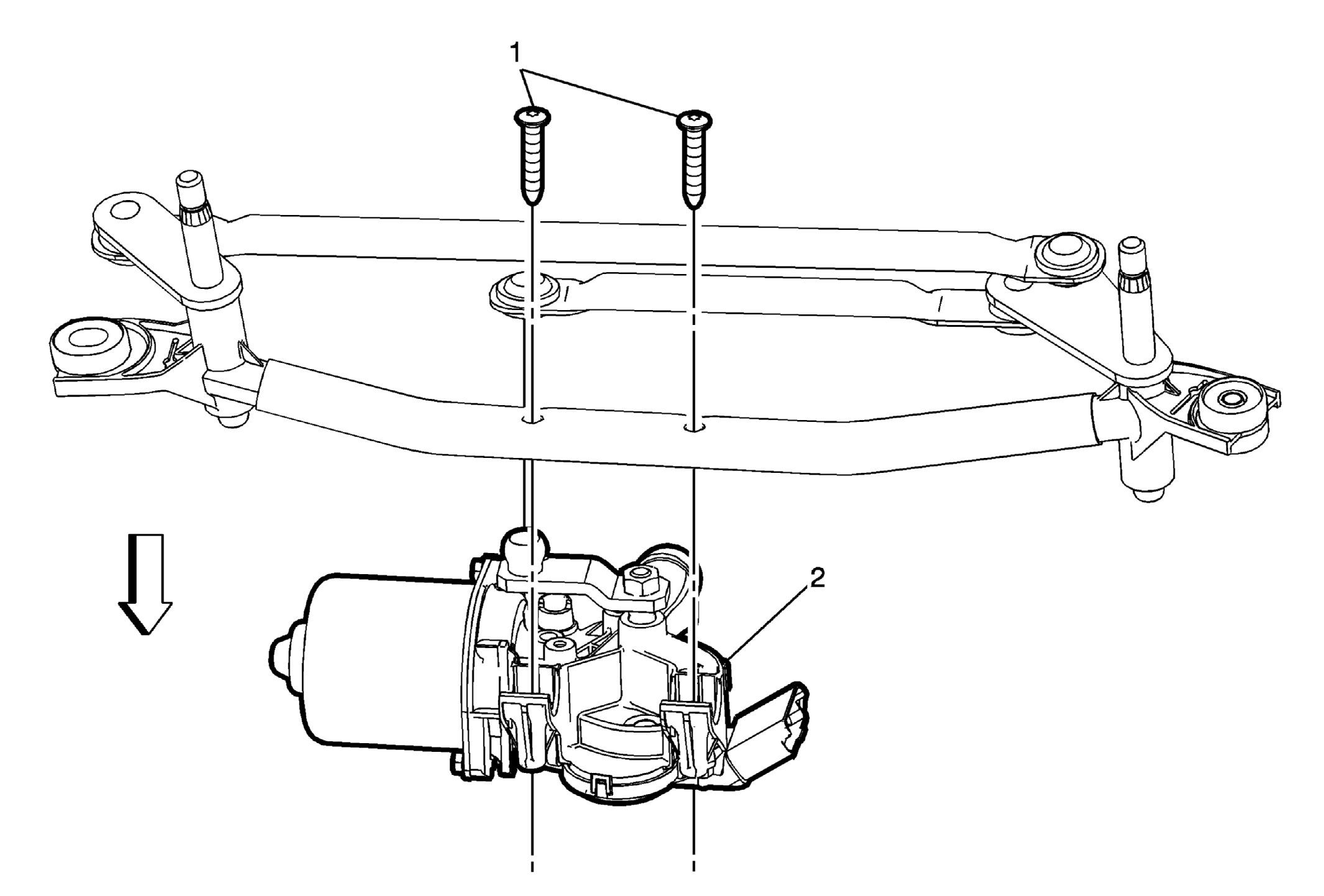

Fig 1: Windshield Wiper Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the wiper system module. Refer to Windshield Wiper System Module Replacement
1	Windshield Wiper Motor Bracket Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Windshield Wiper Motor Procedure Use a wiper linkage separator or similar tool, separate the transmission drive link from the wiper motor crank arm ball stud. Use a wiper linkage installer or similar tool, install the transmission drive link onto the wiper motor crank arm ball stud. TIP: Apply a small amount of grease to the inner cup on the transmission link to aid in installation.

Callout

Component Name

Preliminary Procedure
Remove the wiper system module. Refer to Windshield Wiper System Module Replacement

Windshield Wiper Motor Bracket Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
8.5 N.m (75 lb in)

Windshield Wiper Motor

Procedure

Use a wiper linkage separator or similar tool, separate the transmission drive link from the wiper motor crank arm ball stud.
Use a wiper linkage installer or similar tool, install the transmission drive link onto the wiper motor crank arm ball stud.
TIP: Apply a small amount of grease to the inner cup on the transmission link to aid in installation.
