Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

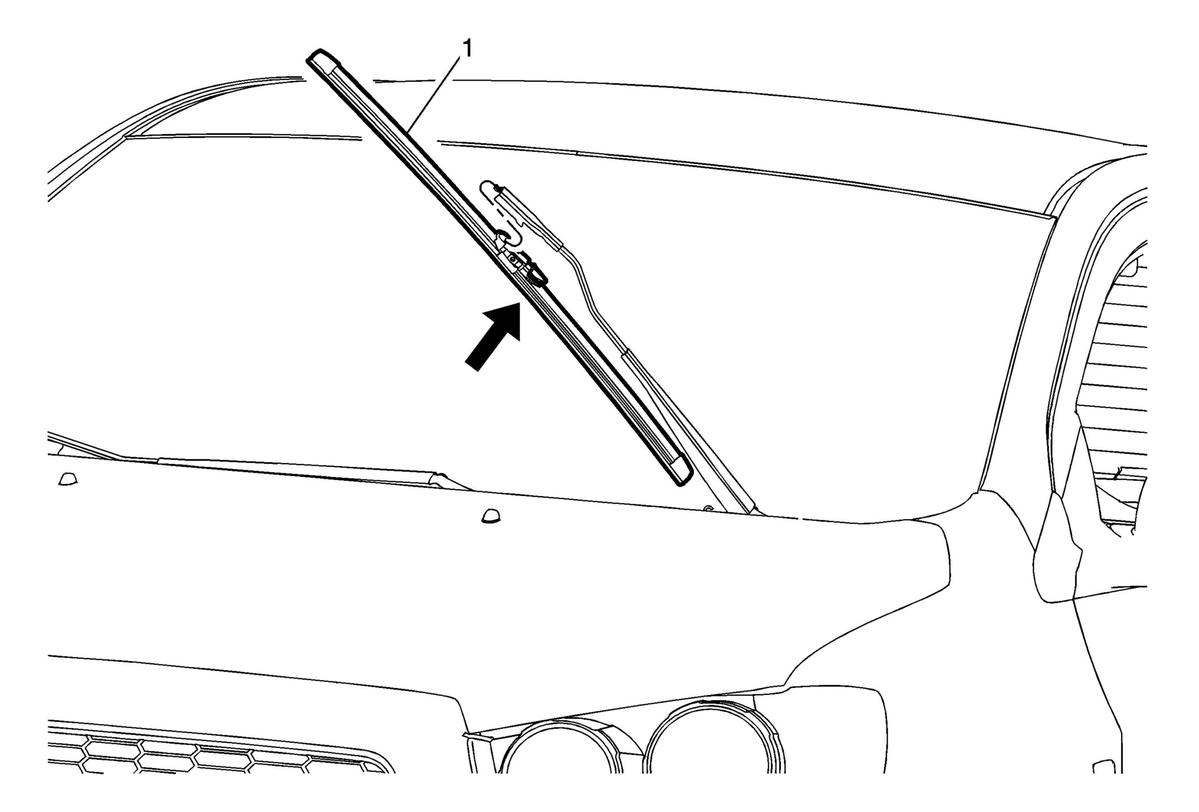

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Service Up and hold the wiper arm off the windshield when performing the wiper blade replacement. Pinch the two tabs on top of the wiper blade. Rotate the bottom edge of the wiper blade, downward, away from the wiper arm. Detach the wiper blade from the hook end of the windshield wiper arm. Carefully return the windshield wiper arm back to the glass until the new wiper blade is installed.
1	Windshield Wiper Blade Assembly

Callout

Component Name

Preliminary Procedure

Service Up and hold the wiper arm off the windshield when performing the wiper blade replacement.
Pinch the two tabs on top of the wiper blade.
Rotate the bottom edge of the wiper blade, downward, away from the wiper arm.
Detach the wiper blade from the hook end of the windshield wiper arm.
Carefully return the windshield wiper arm back to the glass until the new wiper blade is installed.

Windshield Wiper Blade Assembly
