Windshield Wiper Arm Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

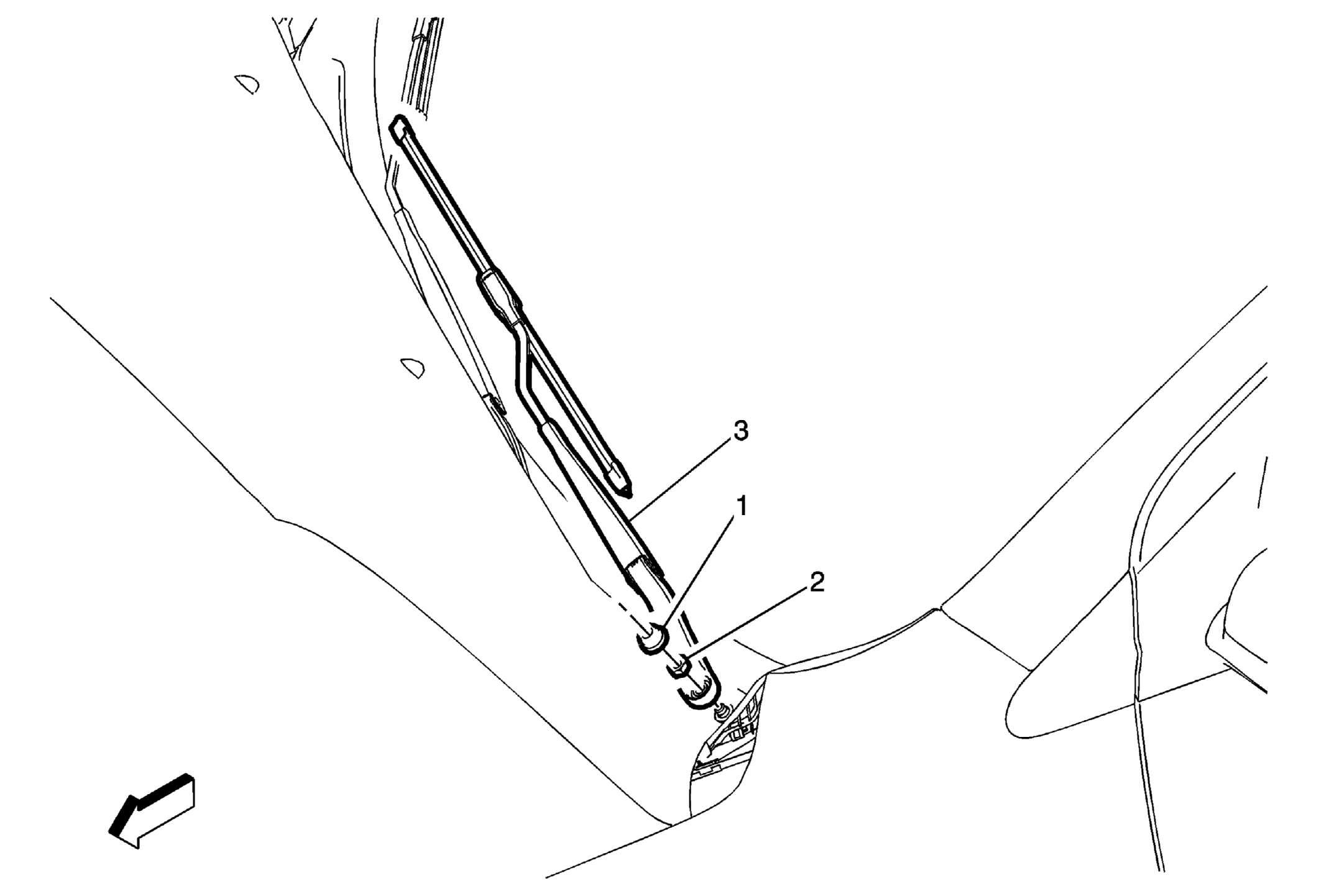

Fig 1: Windshield Wiper Arm

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the hood assembly.
1	Windshield Wiper Arm Nut Cap TIP: Use a small flat-bladed tool in order to release the finish cap from the wiper arm assembly.
2	Windshield Wiper Arm Nut CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
3	Windshield Wiper Arm Procedure Use the BO-49385 puller in order to assist in the removal of the wiper arm from the wiper module pivot shaft. Remove the wiper arm from the pivot shaft. Clean the pivot shaft knurls with a soft wire brush before installing a new wiper arm. Special Tools BO-49385 Wiper Arm Puller For equivalent regional tools, refer to Special Tools .
