Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

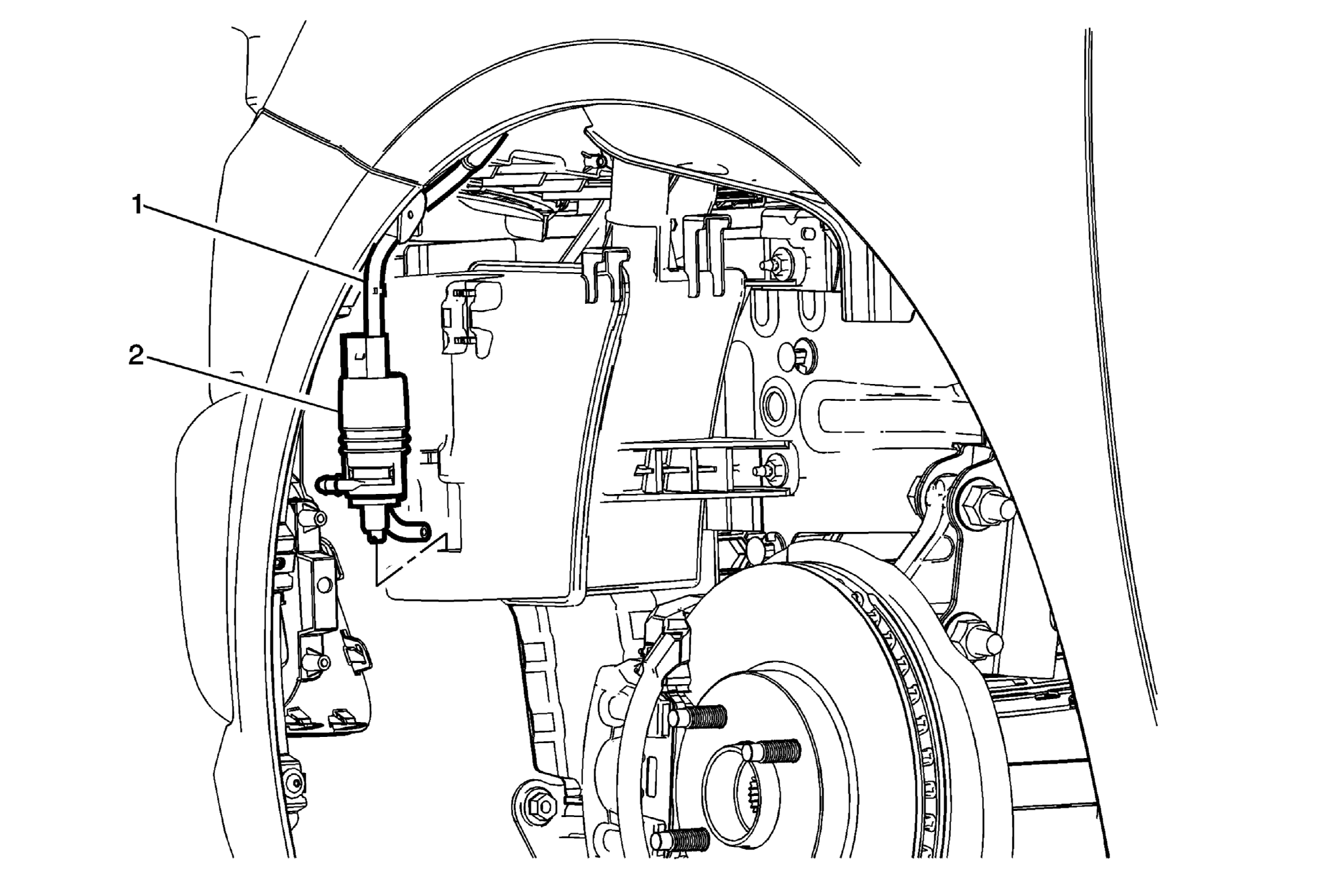

Fig 1: Windshield Washer Pump
GM2497851Courtesy of GENERAL MOTORS COMPANY
Windshield Washer Pump Replacement

Callout Component Name
Preliminary Procedure
Remove the front left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Rear) , Front Wheelhouse Liner Replacement (Front) , Front Wheelhouse Liner Replacement (with WFK) .
1 Windshield Washer Pump Hose
Procedure
Place a clean suitable drain pan under the windshield washer pump area to recover the windshield washer solvent when the windshield washer pump hose is disconnected.
2 Windshield Washer Pump

Procedure

  1. Disconnect the electrical connector to the windshield washer pump.
  2. Using two flat-bladed tools, place the blades on each side of the washer pump, under the windshield washer pump grommet.
  3. Twist the two flat-blades in opposite directions to lift the washer pump from the windshield washer solvent container.
  4. Disengage the washer pump from the windshield washer container.
  5. Remove the windshield washer pump and discard the windshield washer pump grommet.
