Windshield Washer Nozzle Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

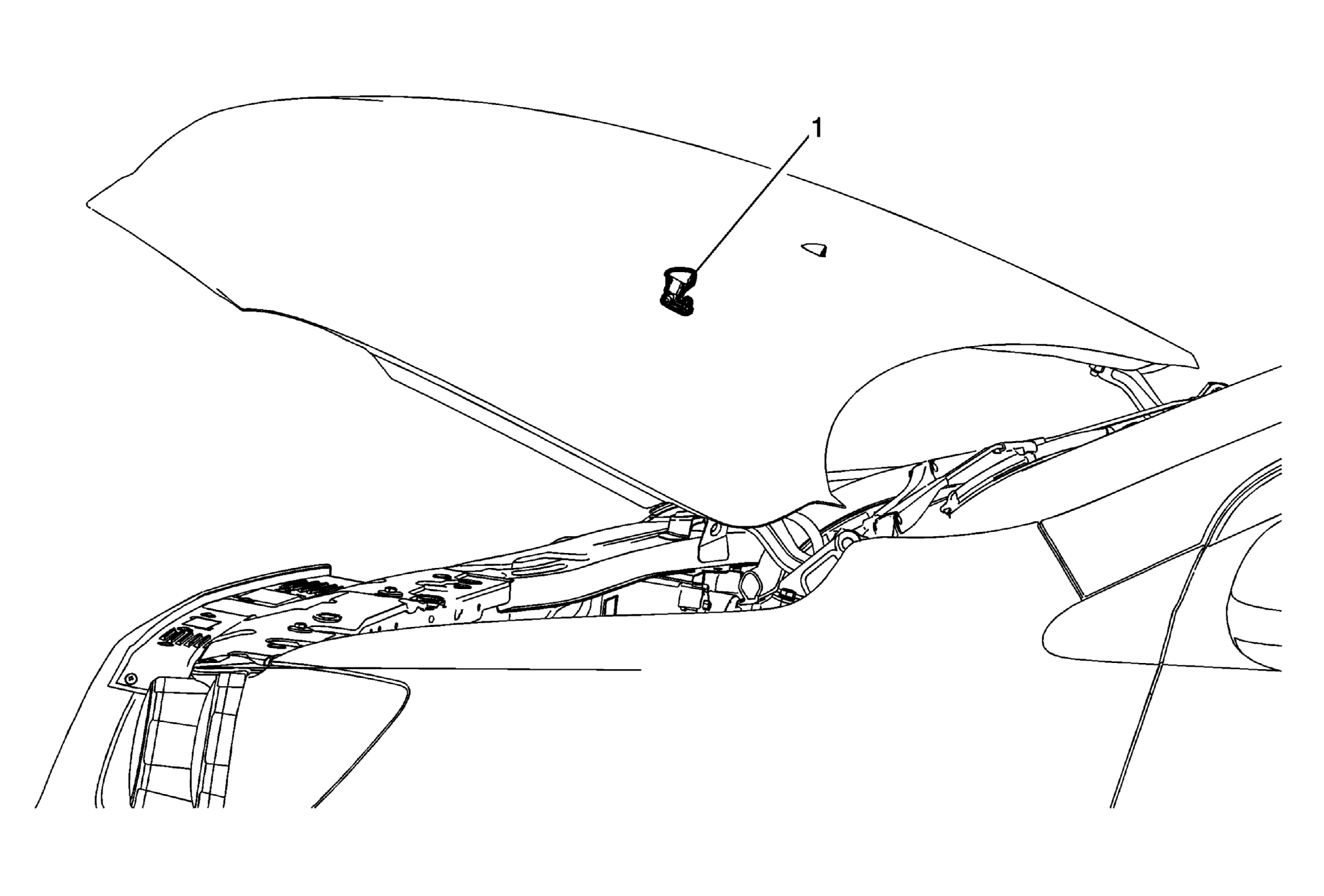

Fig 1: Windshield Washer Nozzle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the hood insulator. Refer to Hood Insulator Replacement .
1	Windshield Washer Nozzle Procedure Disconnect the windshield washer hose at the washer nozzle being serviced. Using two fingers, squeeze the locking tabs on the underside of the hood on the washer nozzle. Push the washer nozzle outward from the hood while rotating the washer nozzle to the right. Remove the windshield washer nozzle from the hood assembly.

Callout

Component Name

Preliminary Procedure
Remove the hood insulator. Refer to Hood Insulator Replacement .

Windshield Washer Nozzle

Procedure

Disconnect the windshield washer hose at the washer nozzle being serviced.
Using two fingers, squeeze the locking tabs on the underside of the hood on the washer nozzle.
Push the washer nozzle outward from the hood while rotating the washer nozzle to the right.
Remove the windshield washer nozzle from the hood assembly.
