Radio Front Side Door Speaker Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

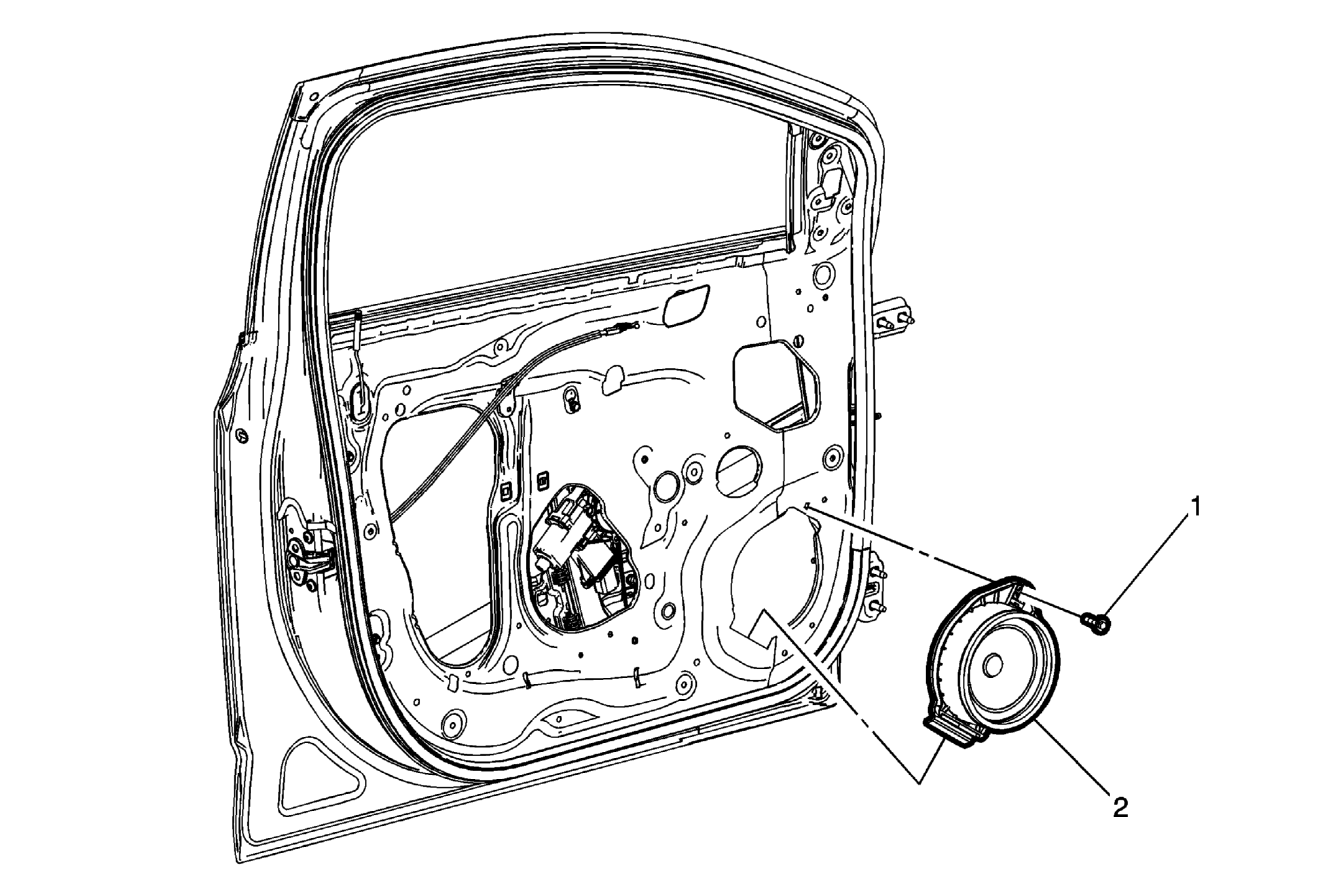

Fig 1: Radio Front Side Door Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1	Radio Front Side Door Speaker Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 (22 lb in)
2	Radio Front Side Door Speaker Procedure Disconnect the electrical connector.
