SIR Identification Views
WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

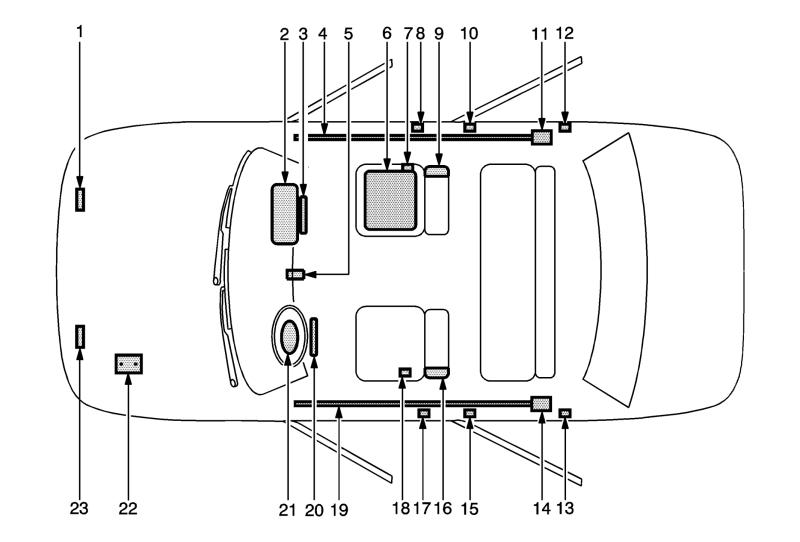

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | Front Right Impact Sensor-Located under the hood on the right side of the vehicle |
| 2 | Instrument Panel Air Bag-Located at the top right under the instrument panel |
| 3 | Right Knee Air Bag-Located below the glove box in the instrument panel |
| 4 | Roof Rail Air Bag-Located under the headliner, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 5 | Inflatable Restraint Sensing and Diagnostic Module (SDM)-Located underneath the center console |
| 6 | Passenger Presence System -Located on the passenger front seat underneath the seat bottom trim |
| 7 | Seat Belt Anchor Pretensioner-Located on the outboard side of the passengers seat |
| 8 | Right Front Side Impact Sensor (SIS)-Located at the B-pillar underneath the door sill |
| 9 | Passenger Seat Side Air Bag-Located on the seat back of passenger seat |
| 10 | Seat Belt Retractor Pretensioner-Located under the trim near the bottom of the center pillar on the passenger side of vehicle |
| 11 | Inflator Module for Roof Rail Air Bag-Located behind the garnish molding on the upper rear pillar |
| 12 | Right Rear Side Impact Sensor (SIS)-Located at the C-pillar underneath the door sill |
| 13 | Left Rear Side Impact Sensor (SIS)-Located at the C-pillar underneath the door sill |
| 14 | Inflator Module for Roof Rail Air Bag-Located behind garnish molding on the upper rear pillar |
| 15 | Seat Belt Retractor Pretensioner-Located under the trim near the bottom of the center pillar on the driver side of vehicle |
| 16 | Driver Seat Side Air Bag-Located on the seat back of driver seat |
| 16 | Left Front Side Impact Sensor (SIS)-Located at the B-pillar underneath the door sill |
| 18 | Seat Belt Anchor Pretensioner-Located on the outboard side of the drivers seat |
| 19 | Roof Rail Air Bag-Located under the headliner, extending from the driver front windshield pillar to the driver rear windshield pillar |
| 20 | Left Knee Air Bag-Located below the steering wheel in the instrument panel |
| 21 | Steering Wheel Air Bag-Located on the steering wheel |
| 22 | Vehicle Battery-Located under the hood on the left side |
| 23 | Left Front Impact Sensor-Located under the hood on the left side of the vehicle |
