Installation Procedure

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

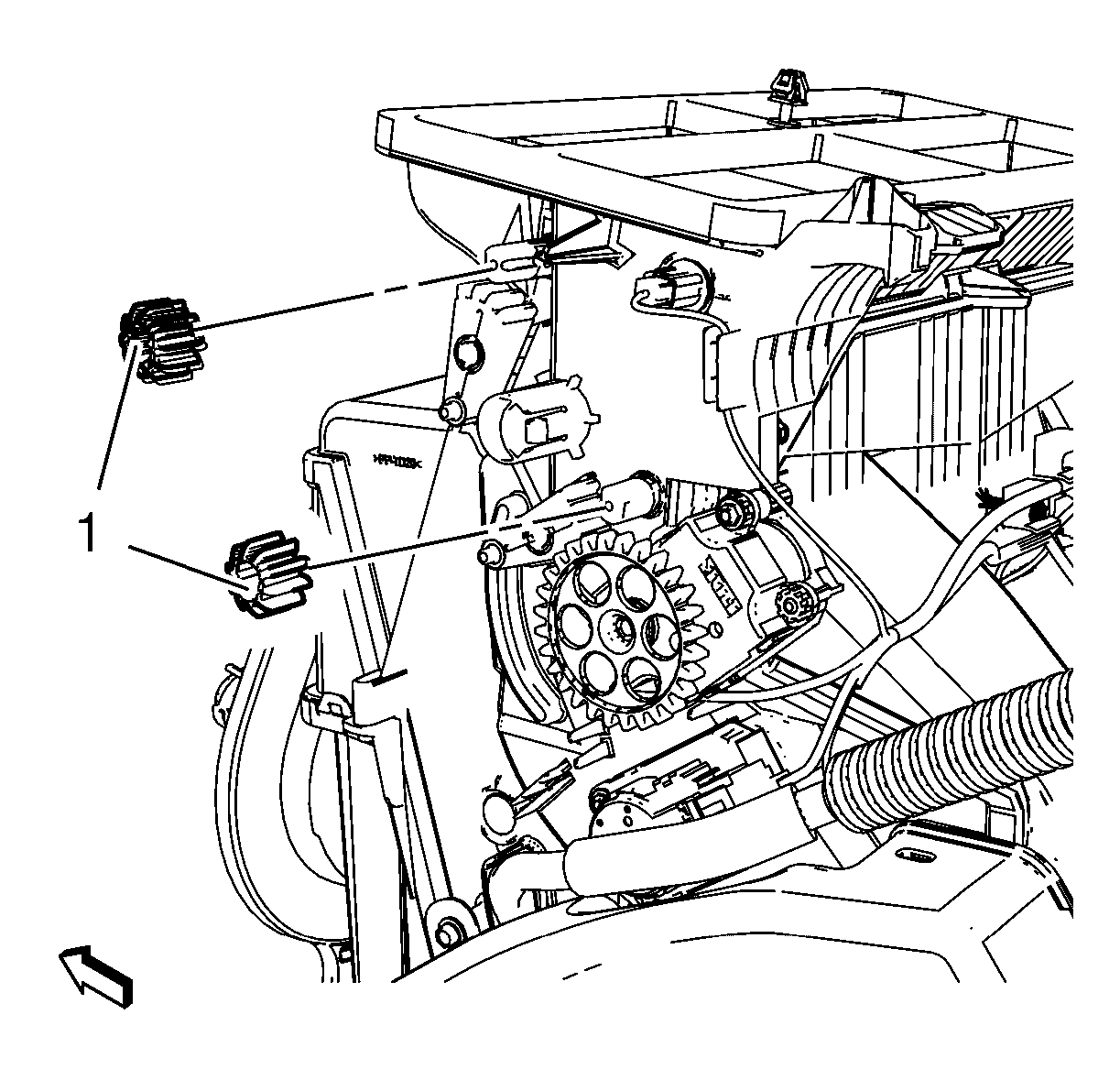

Fig 1: Mode Valve Gear

Courtesy of GENERAL MOTORS COMPANY

Install 2 mode valve gear (1).

Fig 2: Mode Valve Levers

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The mode valve gear can only be fitted in one position. The mode valve gears have to be fitted to the according mode valve levers in figured position. The ventilation dampers have to be in middle position.

Make sure that mode valve gears of mode valve levers (1) are fitted as shown in graphic above.

Fig 3: Mode Control Cam

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The mode control cam can only be fitted in one position.

Install mode control cam (1).

Fig 4: Instrument Panel Tie Bar, Bolts And Nuts

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install instrument panel tie bar (2).
- Install 4 instrument panel tie bar bolts (3, 4) and tighten to 22 N.m (17 lb ft).
- Install 2 instrument panel tie bar nuts (1) and tighten to 9 N.m (80 lb in).

Fig 5: Instrument Panel Wiring Harness And Instrument Panel Tie Bar

Courtesy of GENERAL MOTORS COMPANY

Install instrument panel wiring harness (2) from instrument panel tie bar (1).
Connect electrical connectors.
Install instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
