Mode Control Cam Actuator Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

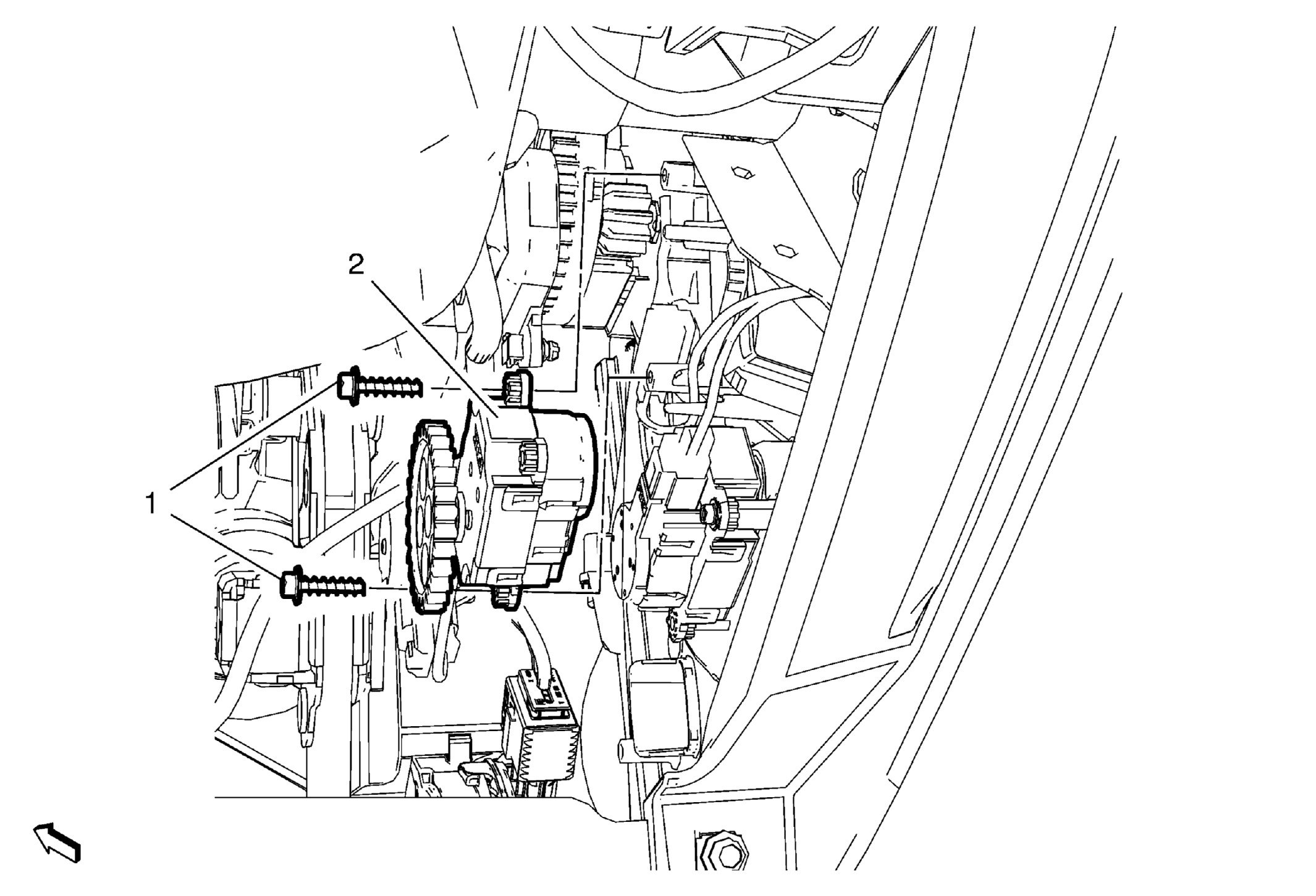

Fig 1: Mode Control Cam Actuator And Bolts
GM2371781Courtesy of GENERAL MOTORS COMPANY
Mode Control Cam Actuator Replacement

Callout Component Name
Preliminary Procedure
Remove brake, accelerator and clutch pedal. Refer to Brake, Accelerator and Clutch Pedal Replacement .
1 Mode Control Cam Actuator Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Mode Control Cam Actuator

Procedure

  1. Disconnect electrical connector.
  2. Recalibrate the mode control cam actuator. Refer to Actuator Recalibration .
