Front Side Door Inside Handle Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

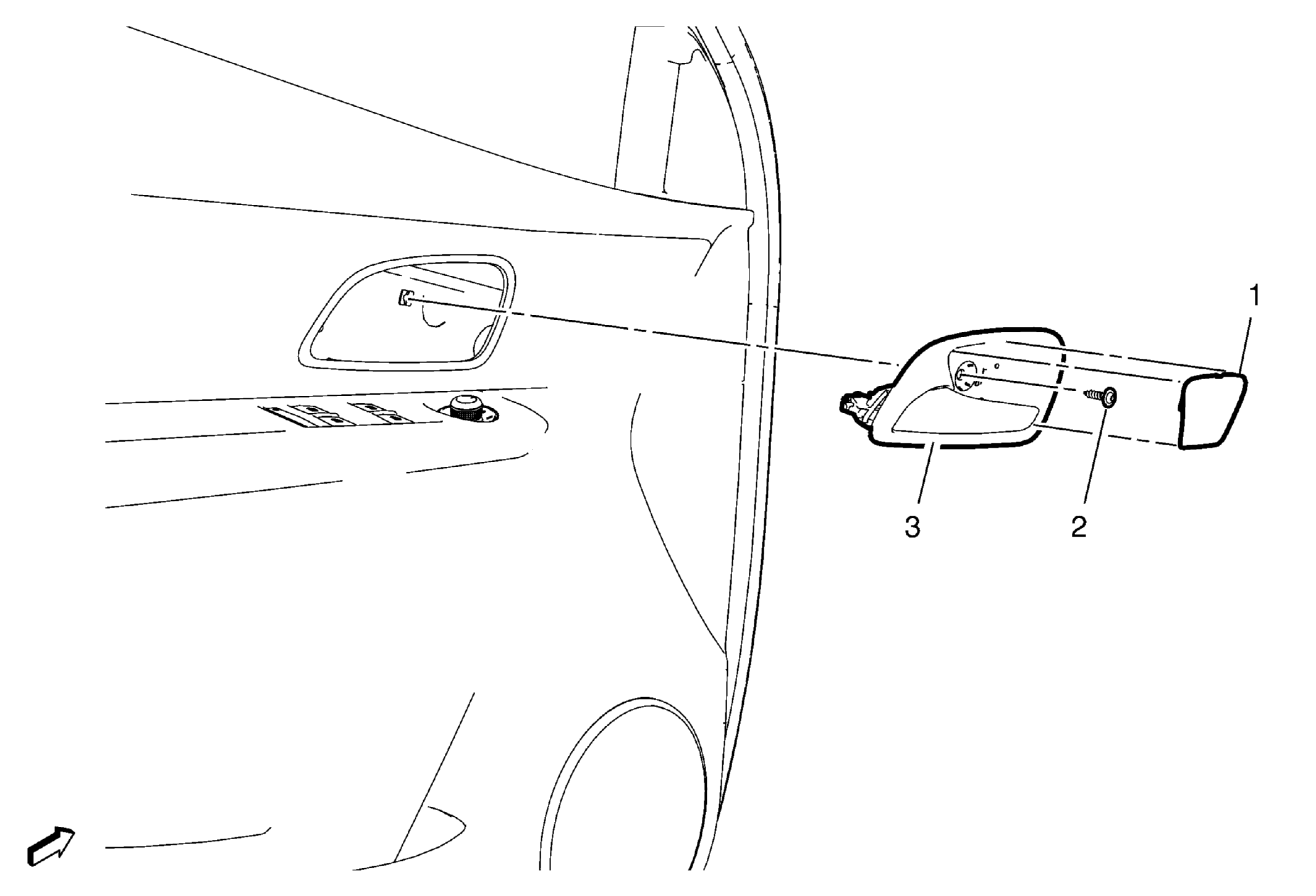

Fig 1: Front Side Door Inside Handle
GM2949022Courtesy of GENERAL MOTORS COMPANY
Front Side Door Inside Handle Replacement

Callout Component Name
1 Front Side Door Inside Handle Bracket Cap
Procedure
Use a flat-bladed tool to remove.
2 Front Side Door Inside Handle Bracket Bolt
CAUTION:

Refer to Fastener Caution .
3 Front Side Door Inside Handle

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Unlock the 4 retaining tabs.
  3. Unlock the front side door inside handle cable.
