Section 421 (Power Door Lock System And Release Systems)
>>
Wiring Schematics
>>
Release Systems Wiring Schematics
>>
Trunk Release
Trunk Release
WARNING:
This page is about a different car, the 2012 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

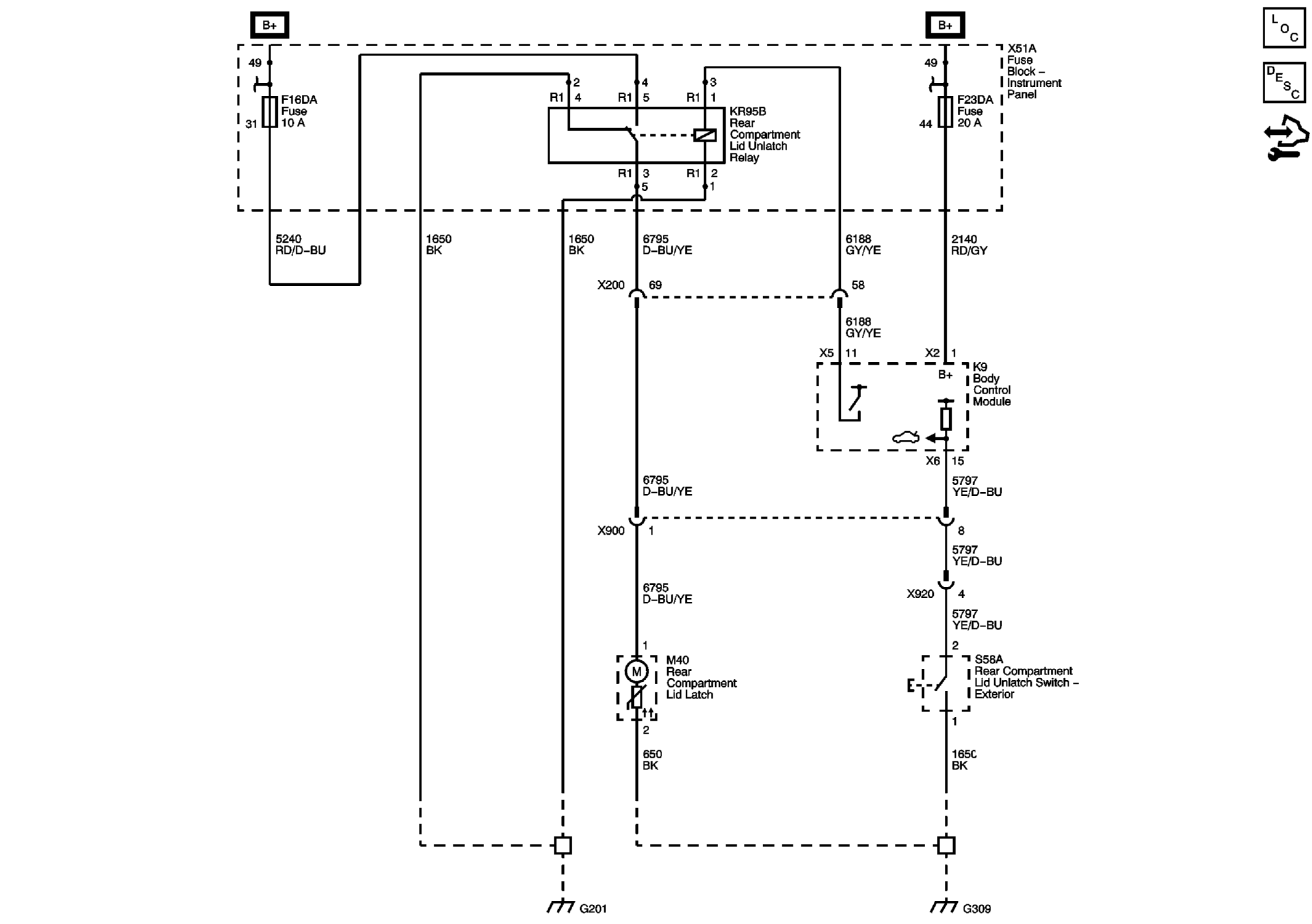

Fig 1: Trunk Release Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
