Liftgate Release (Hatchback)

WARNING: This page is about a different car, the 2012 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

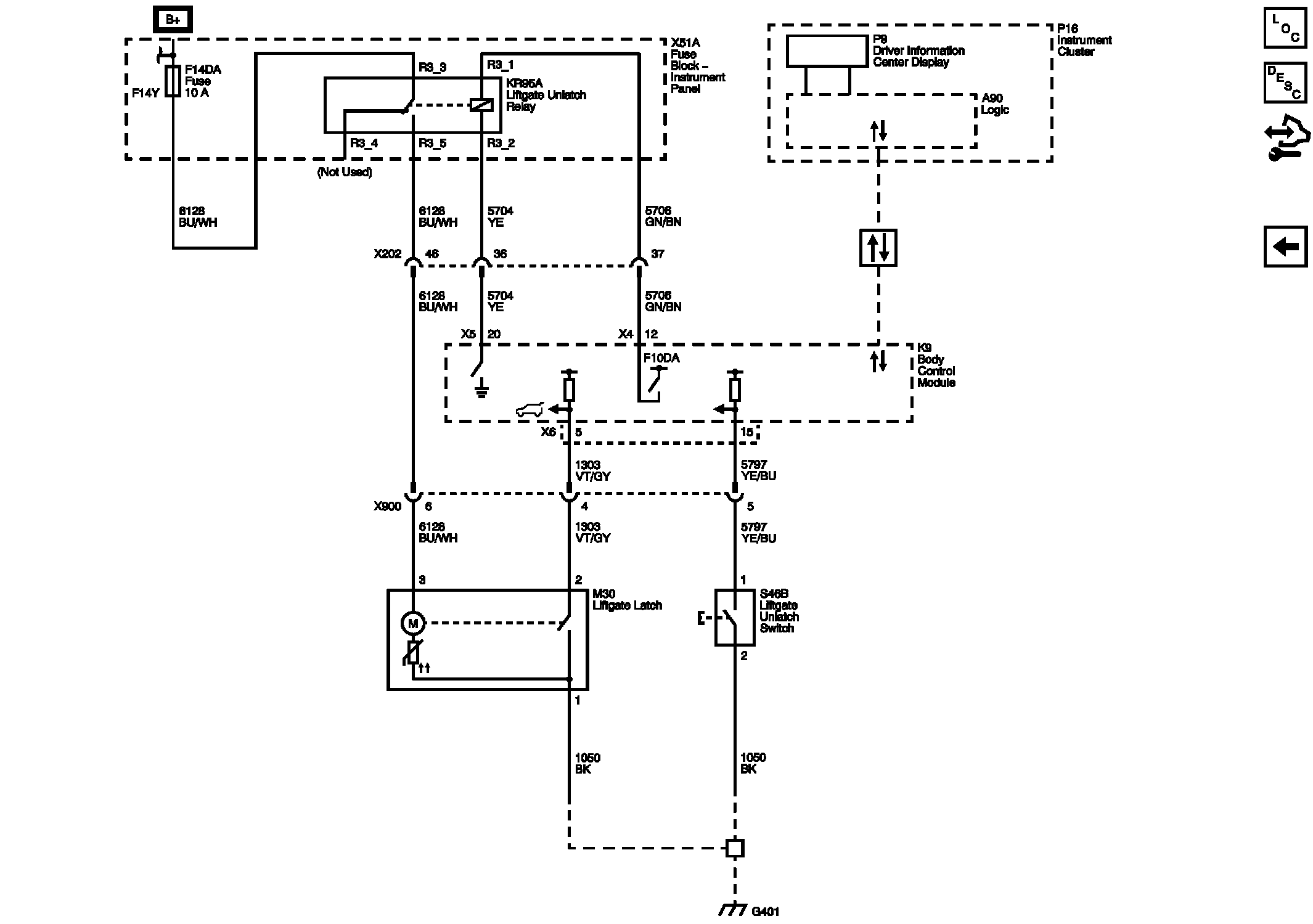

Fig 1: Liftgate Release Wiring Schematic (Hatchback)
GM2591795Courtesy of GENERAL MOTORS COMPANY
