Section 252 (Immobilizer System)
>>
Wiring Schematics
>>
Immobilizer System Wiring Schematics
Immobilizer System Wiring Schematics
WARNING:
This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

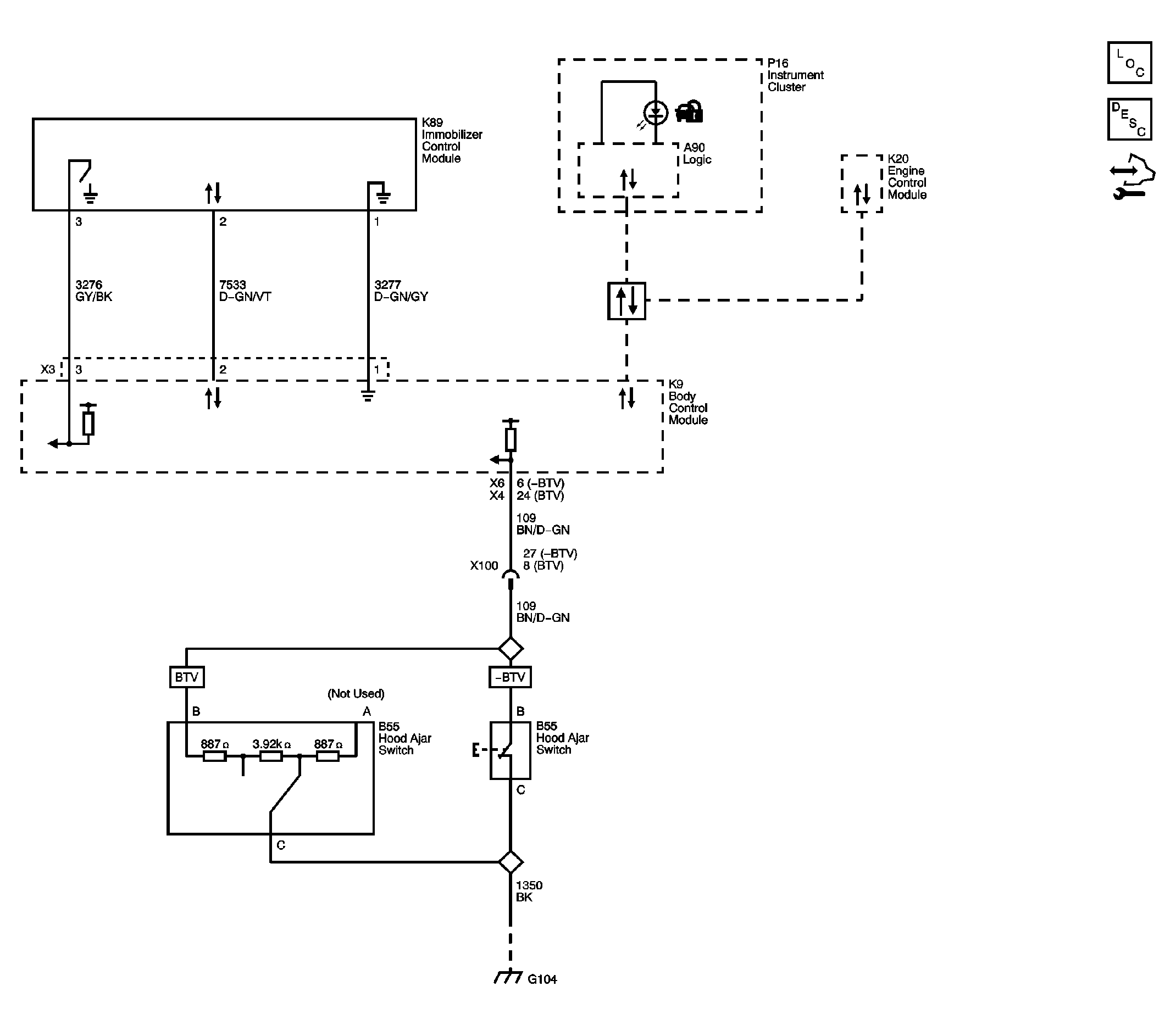

Fig 1: Immobilizer System Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
