Section 213 (Power Door Lock System And Release Systems)
>>
Schematic and Routing Diagrams
>>
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics
WARNING:
This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

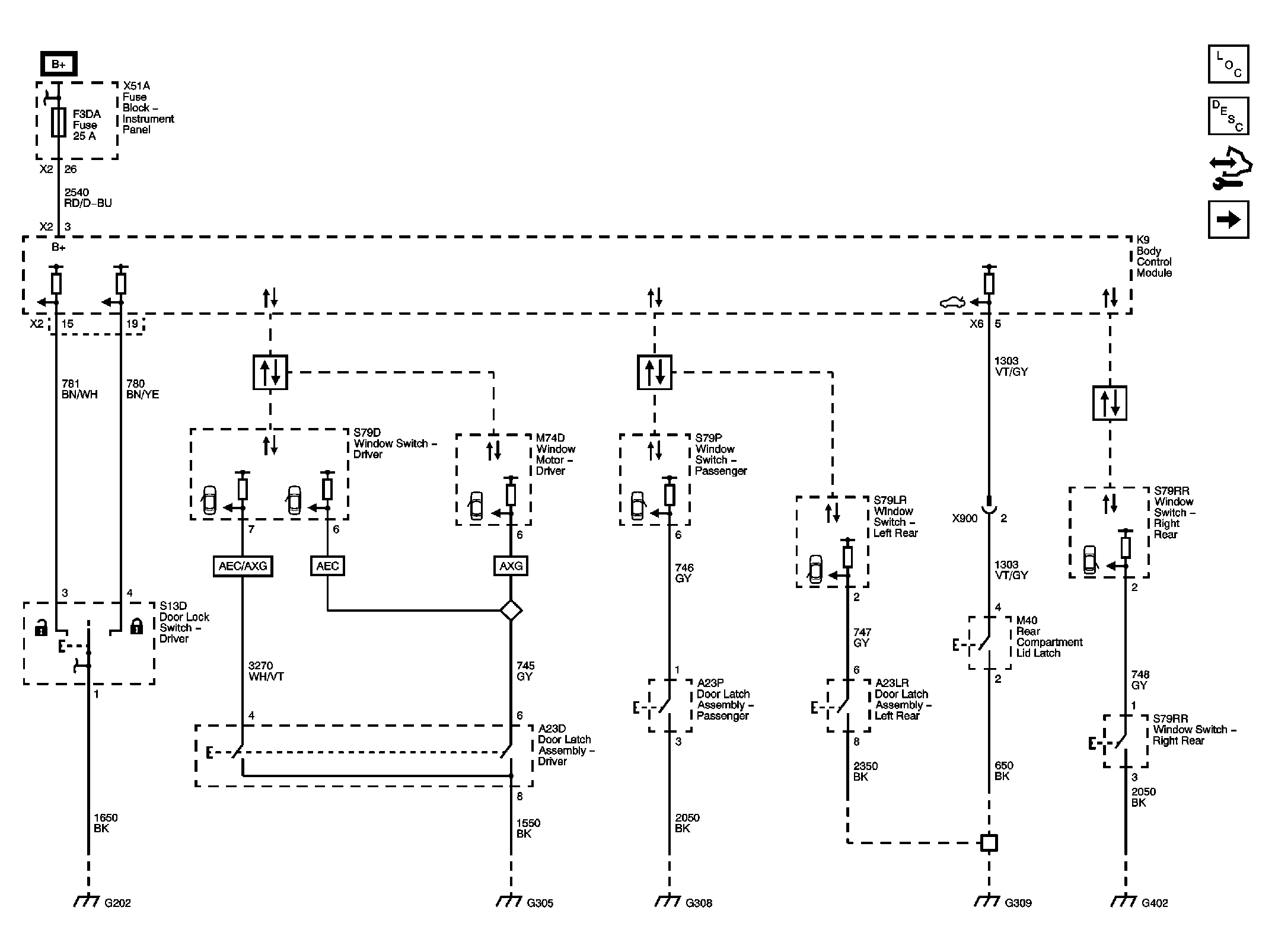

Fig 1: Door Lock/Indicator Switch Schematics
Courtesy of GENERAL MOTORS CORP.

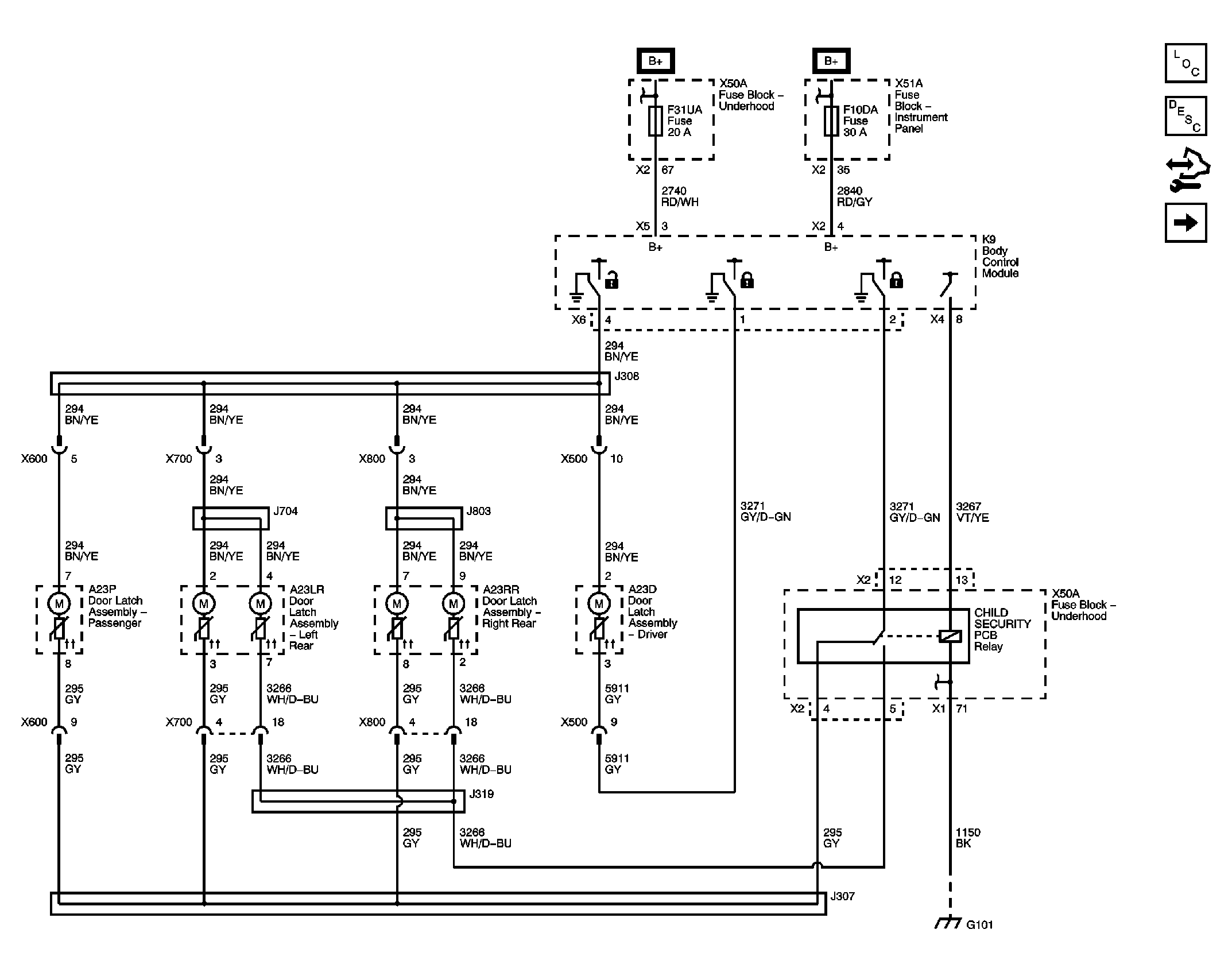

Fig 2: Door Lock/Indicator Actuator Schematics
Courtesy of GENERAL MOTORS CORP.
