Rear Compartment Lid Latch Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

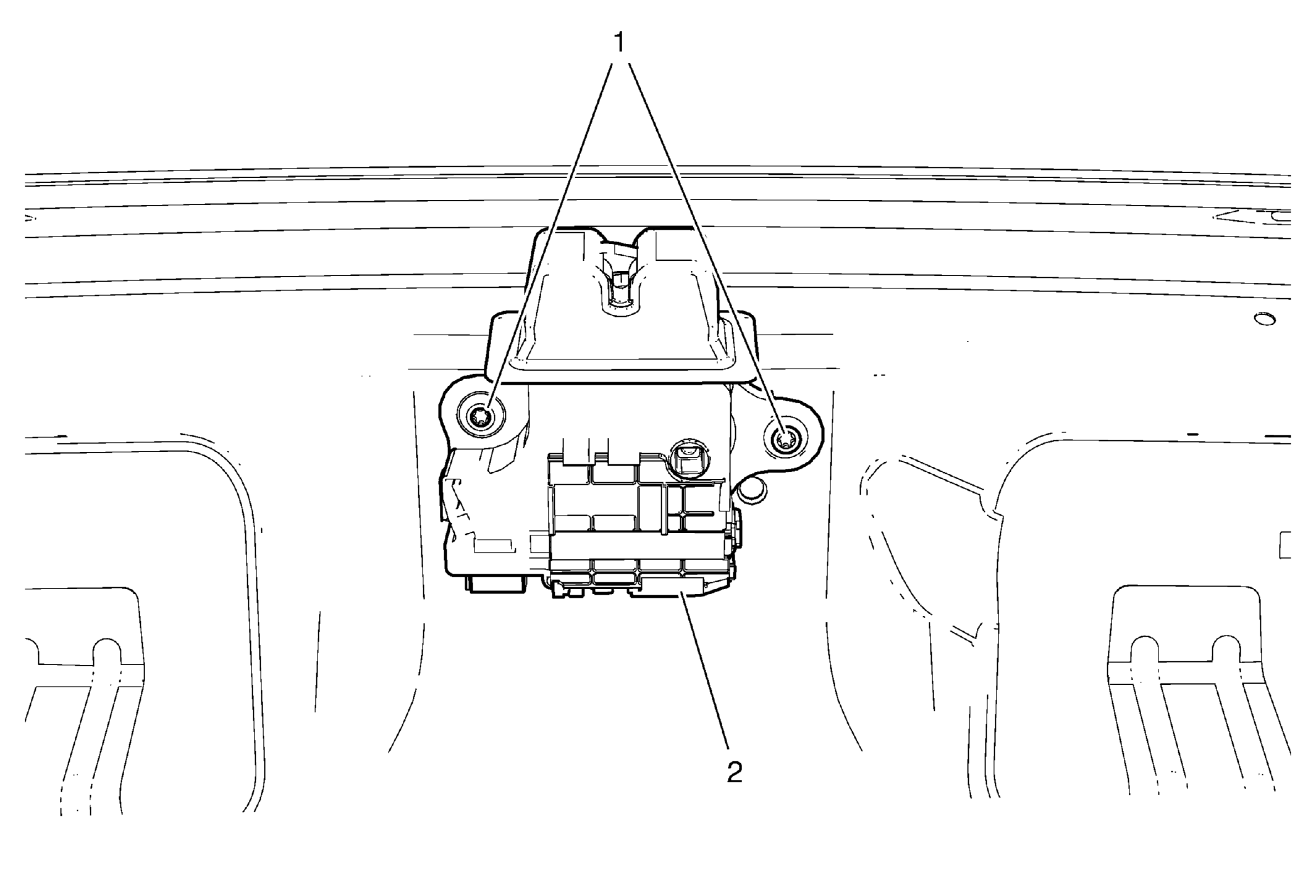

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement . |
|
| 1 | Rear Compartment Lid Latch Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Rear Compartment Lid Latch |
