Starting System and Charging System Wiring Schematics

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

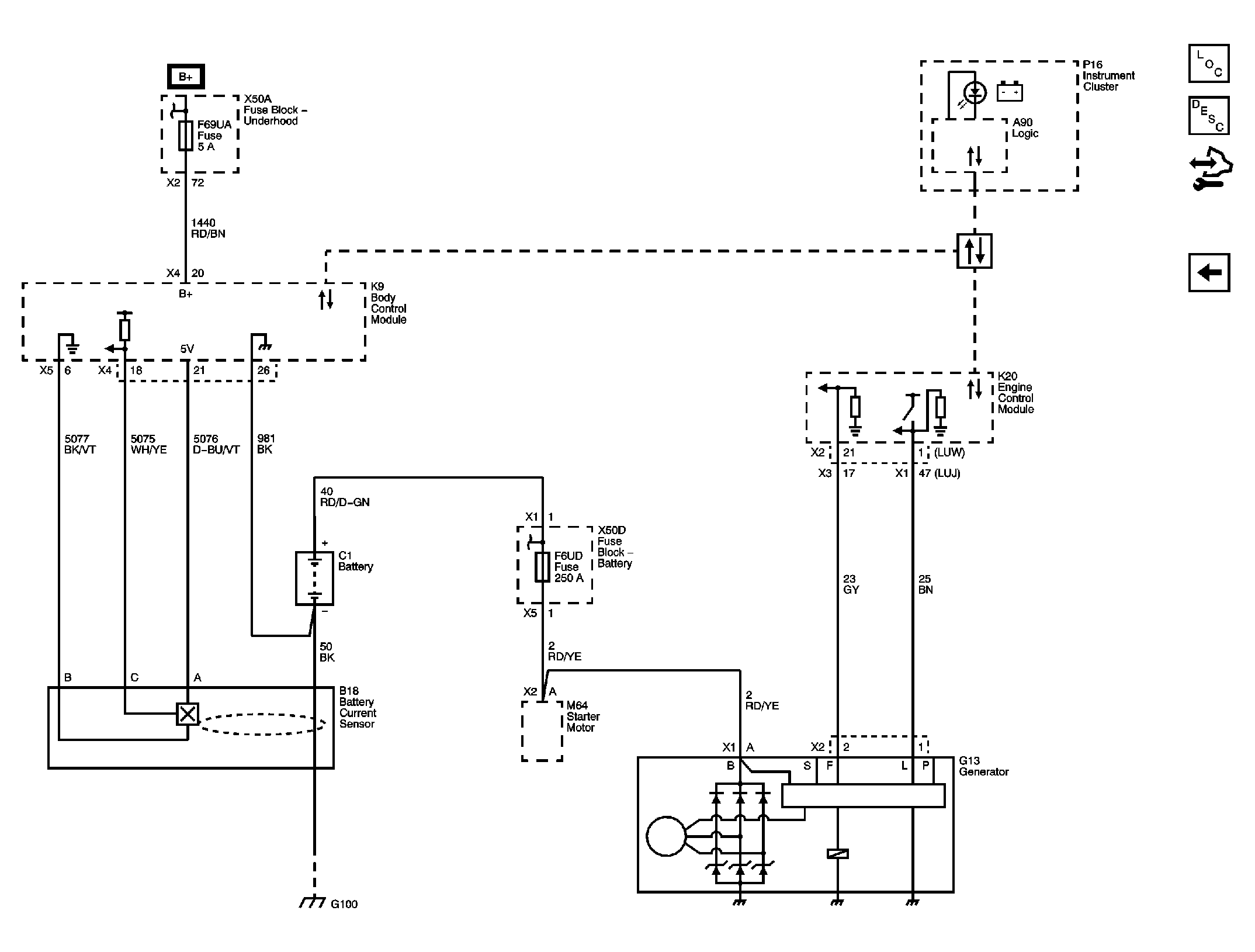

Fig 1: Starting System Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

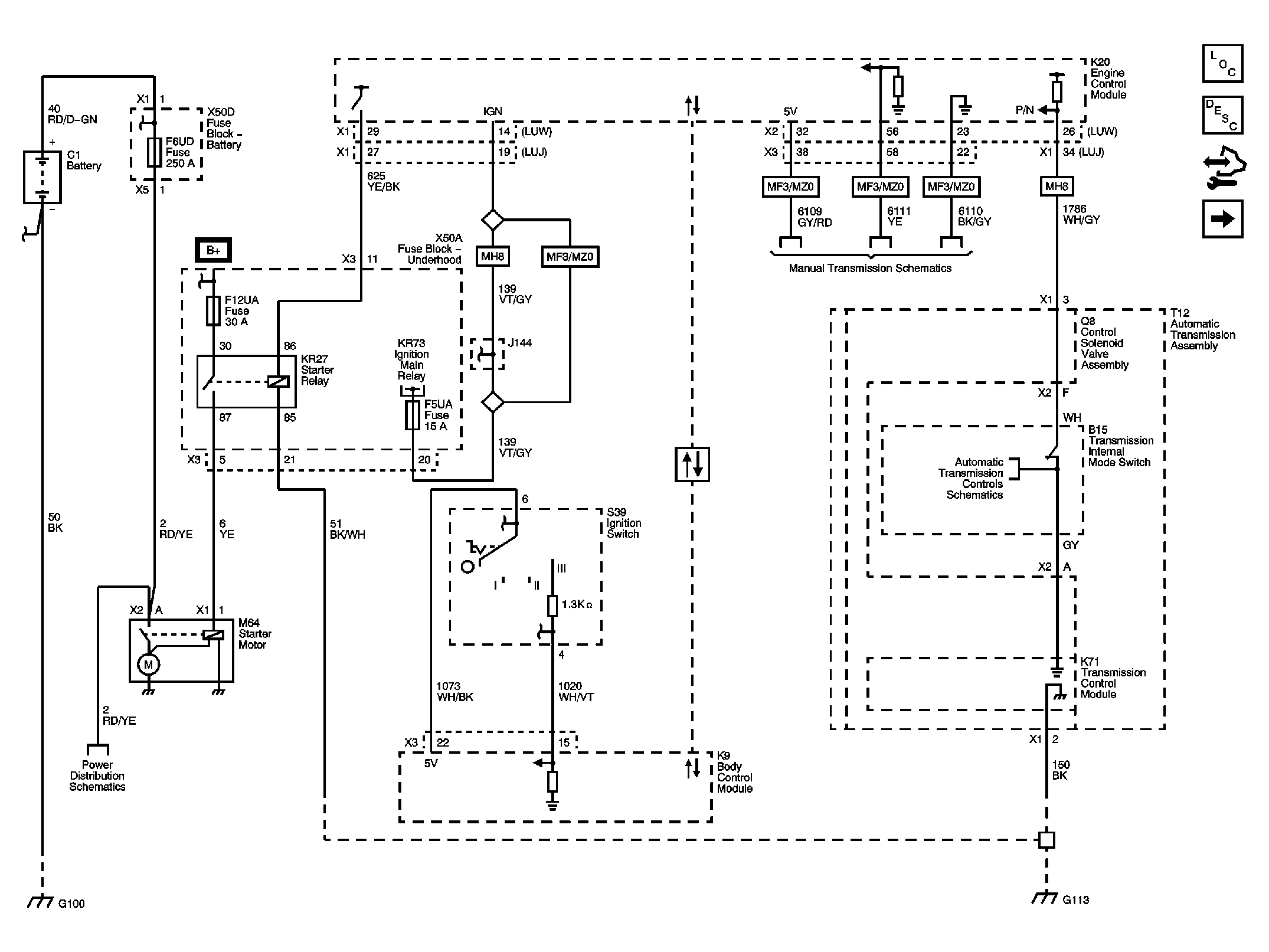

Fig 2: Charging System Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
