Installation Procedure

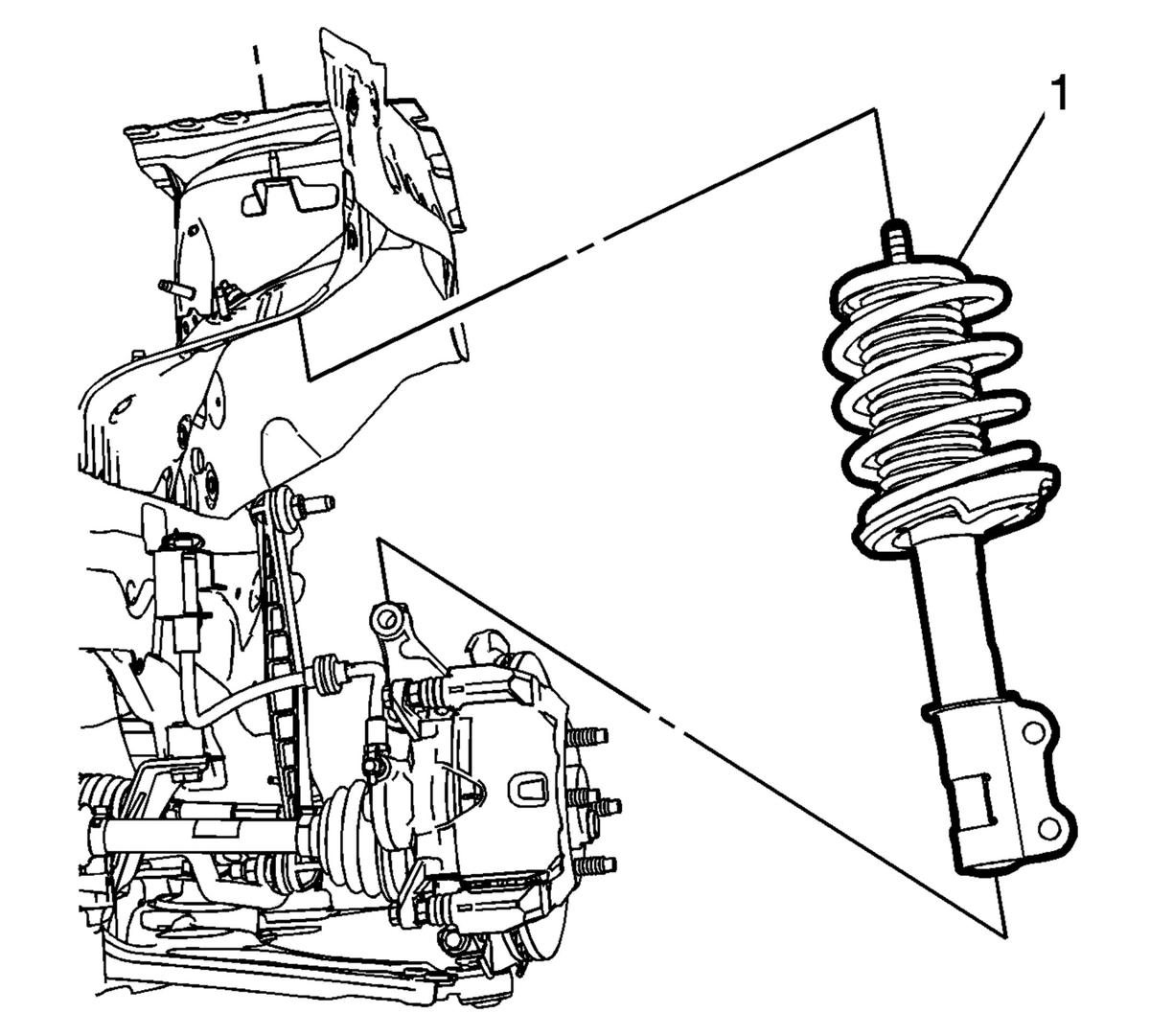

    Fig 1: Front Strut Assembly
    GM2497960Courtesy of GENERAL MOTORS COMPANY
  1. Position the front strut assembly (1) in the vehicle.

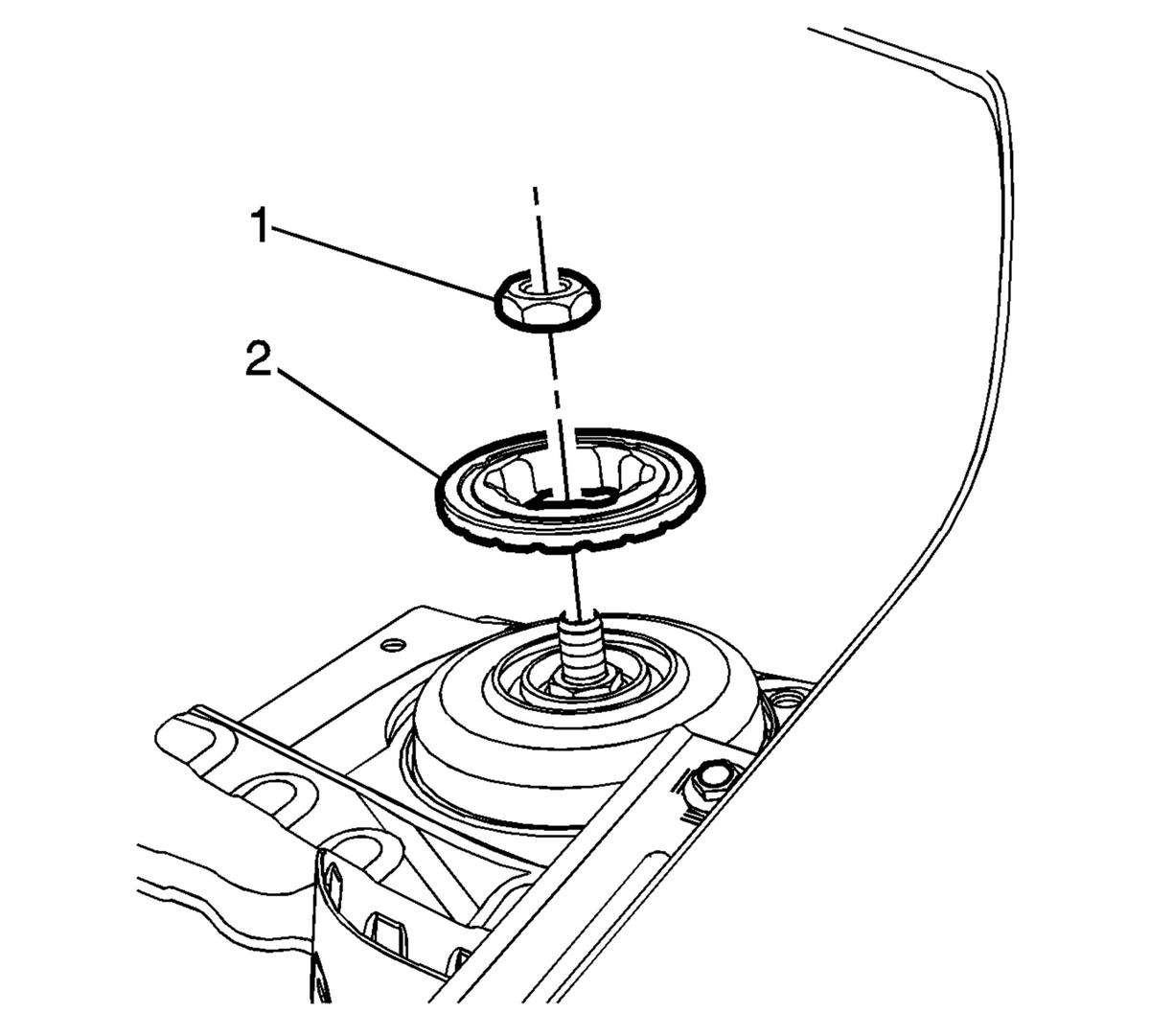

    2. Fig 2: Front Strut Nut & Retaining Plate
    GM2497571Courtesy of GENERAL MOTORS COMPANY
  2. Install the front strut nut (1) and the retaining plate (2).
    3. Fig 3: Special Tool And Torx(R) Bit
    GM2424066Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Using the CH 49375  socket (2) and the proper size Torx® wrench to hold the strut shaft, tighten the nut to 65 N.m (48 lb ft).
    4. Fig 4: Front Strut Components
    GM2497931Courtesy of GENERAL MOTORS COMPANY
  4. Install the front strut nut (1) and the bolt (2) from the front strut and tighten the nut to 110 N.m (82 lb ft).
  5. Install the stabilizer shaft link in the front strut assembly. Refer to Stabilizer Shaft Link Replacement .
  6. Remove the jack stand from the lower control arm.
  7. Install the outer tie rod end in the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement .
  8. Install the speed sensor wiring harness on the front strut assembly, if needed.

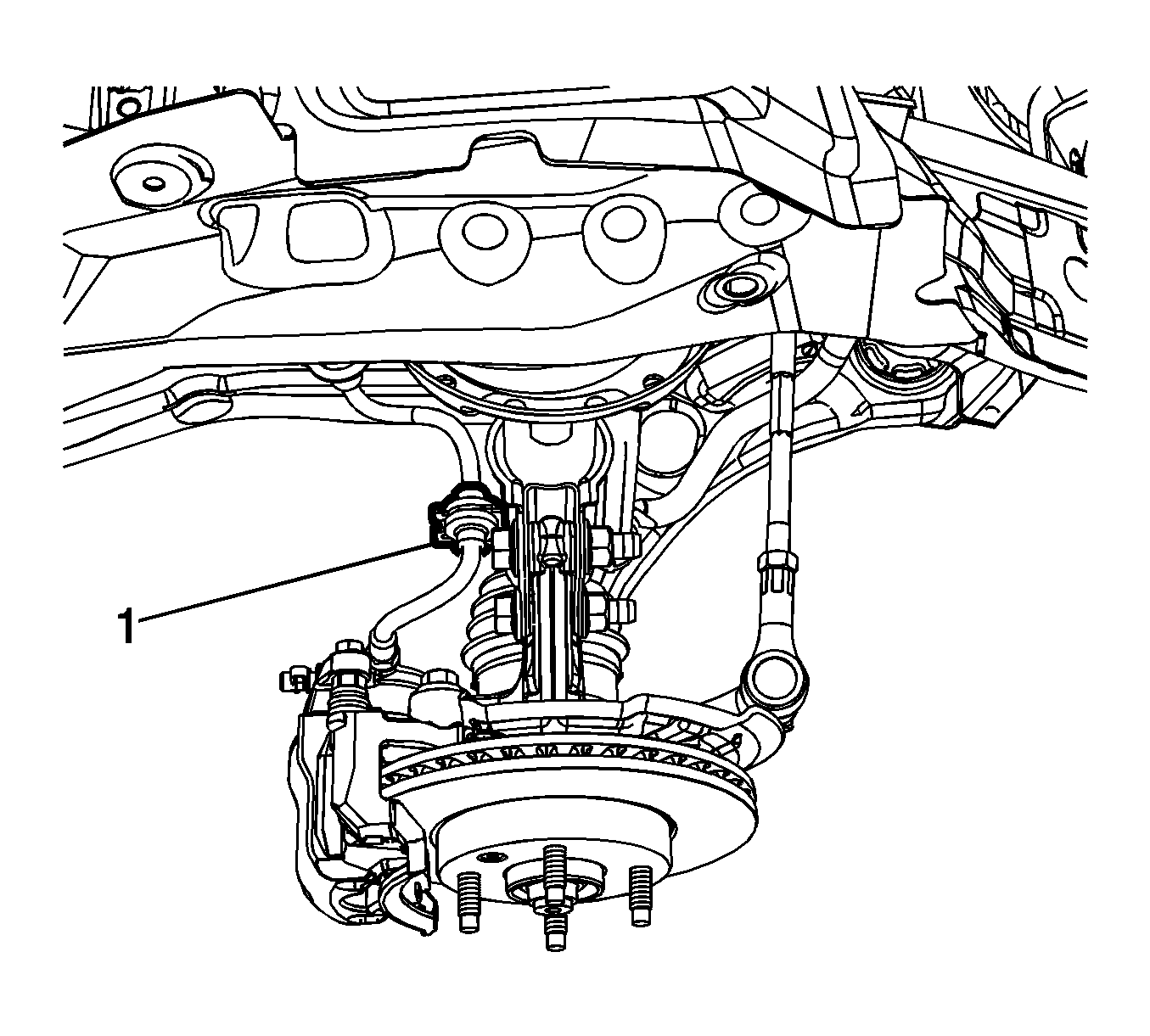

    9. Fig 5: Front Brake Hose
    GM2497949Courtesy of GENERAL MOTORS COMPANY
  9. Install the front brake hose (1) on the front strut assembly.
  10. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  11. Remove the support and lower the vehicle.
  12. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
