Installation Procedure
- Install the wheel bearing and hub assembly in the steering knuckle. Refer to Front Wheel Bearing and Hub Replacement .

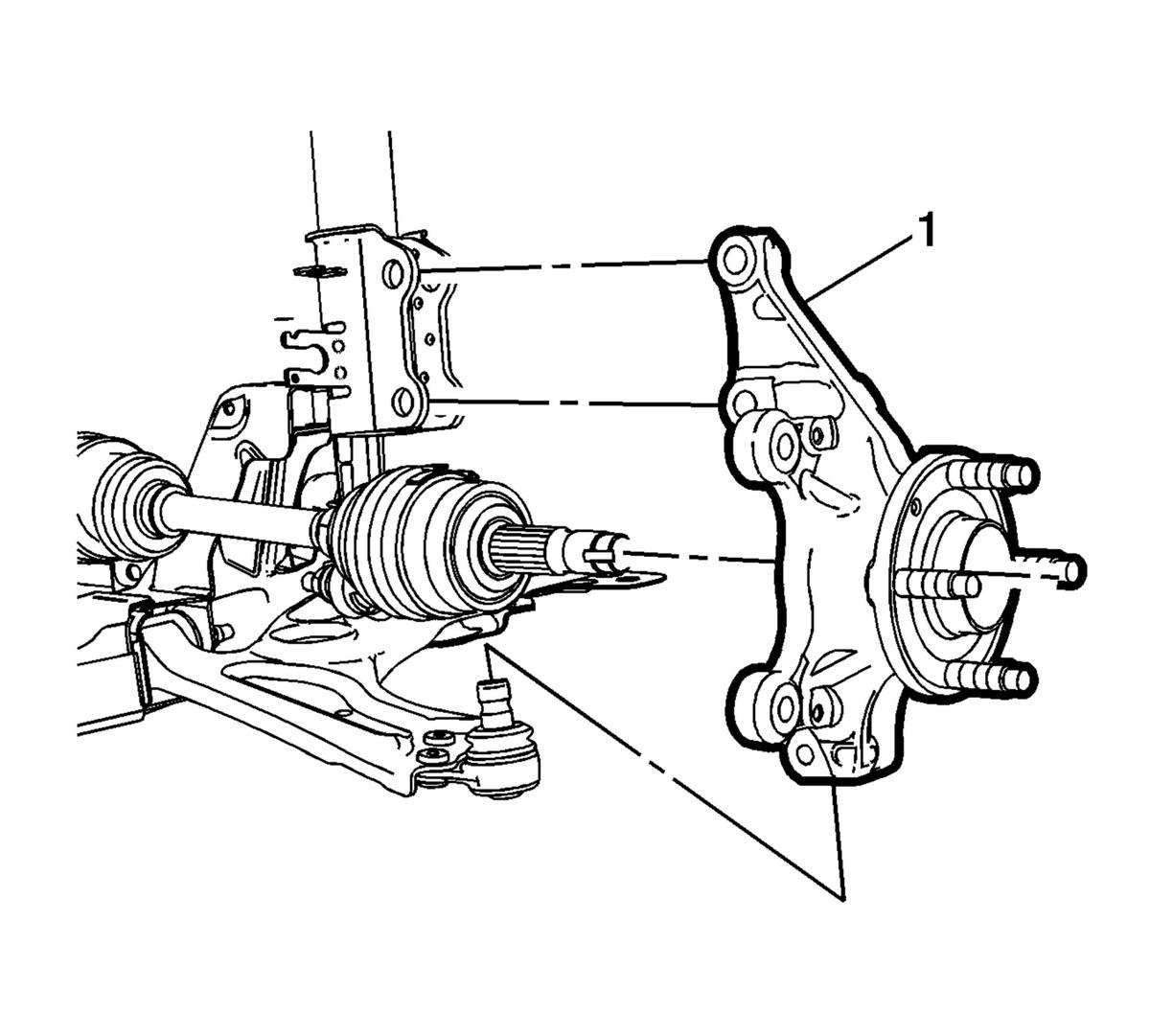

- Position the steering knuckle (1) in the front strut and lower ball joint.
- Install the bolts (2) and the nuts (1) from the front strut assembly to the steering knuckle. Refer to Strut Assembly Removal and Installation .
- Install the lower ball joint bolt and nut to the steering knuckle. Refer to Lower Control Arm Replacement .

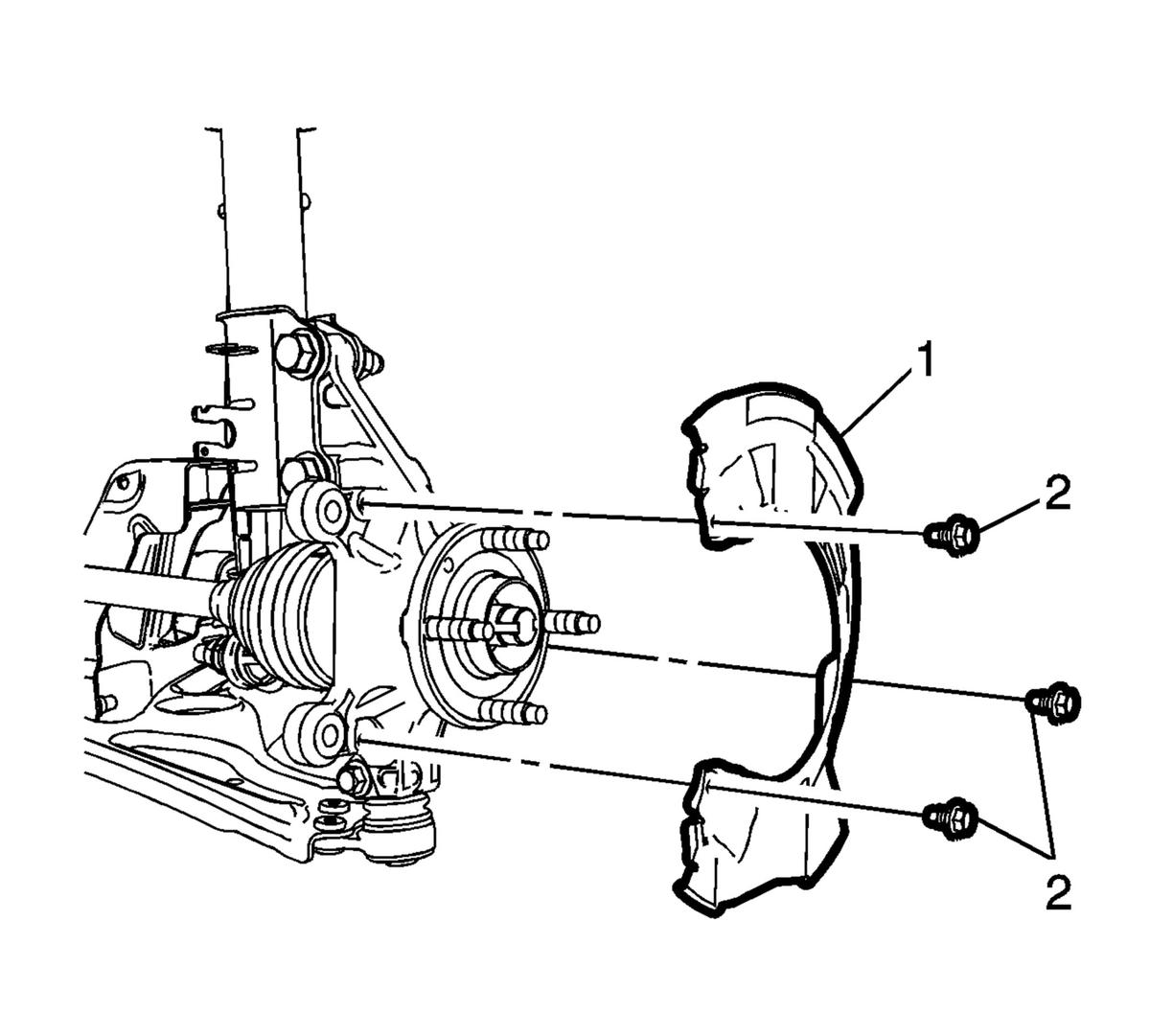

- Install the front brake dust shield (1) bolts (2) and the bolts to 9 N.m (80 lb in).
- Install the brake rotor on the steering knuckle. Refer to Front Brake Rotor Replacement .
- Install the NEW wheel drive shaft nut. Refer to Front Wheel Drive Shaft Replacement .
- Install the wheel speed sensor in the steering knuckle. Refer to Front Wheel Speed Sensor Replacement .
- Install the tire and wheel assembly the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Remove the supports and lower the vehicle.
- Check the front wheel alignment measurements, if the vehicle had a camber adjustment repair. Refer to Wheel Alignment Specifications .
CAUTION:
Refer to Fastener Caution .
