Forward Collision (UEU) and Lane Departure (UFL)

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

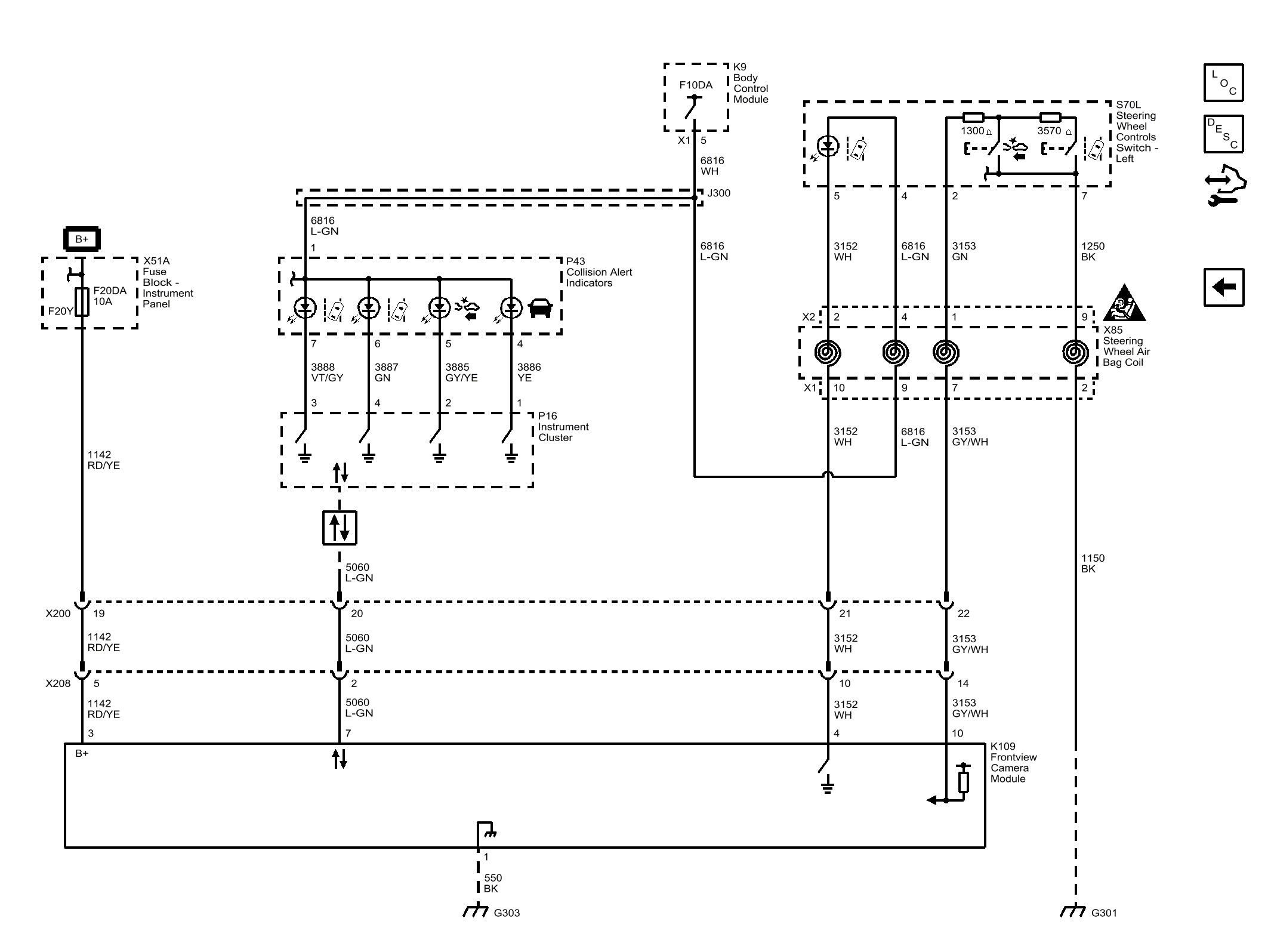

Fig 1: Forward Collision (UEU) And Lane Departure (UFL) Wiring Schematic
GM3521350Courtesy of GENERAL MOTORS COMPANY
