Radio/Navigation System Wiring Schematics: Speakers

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

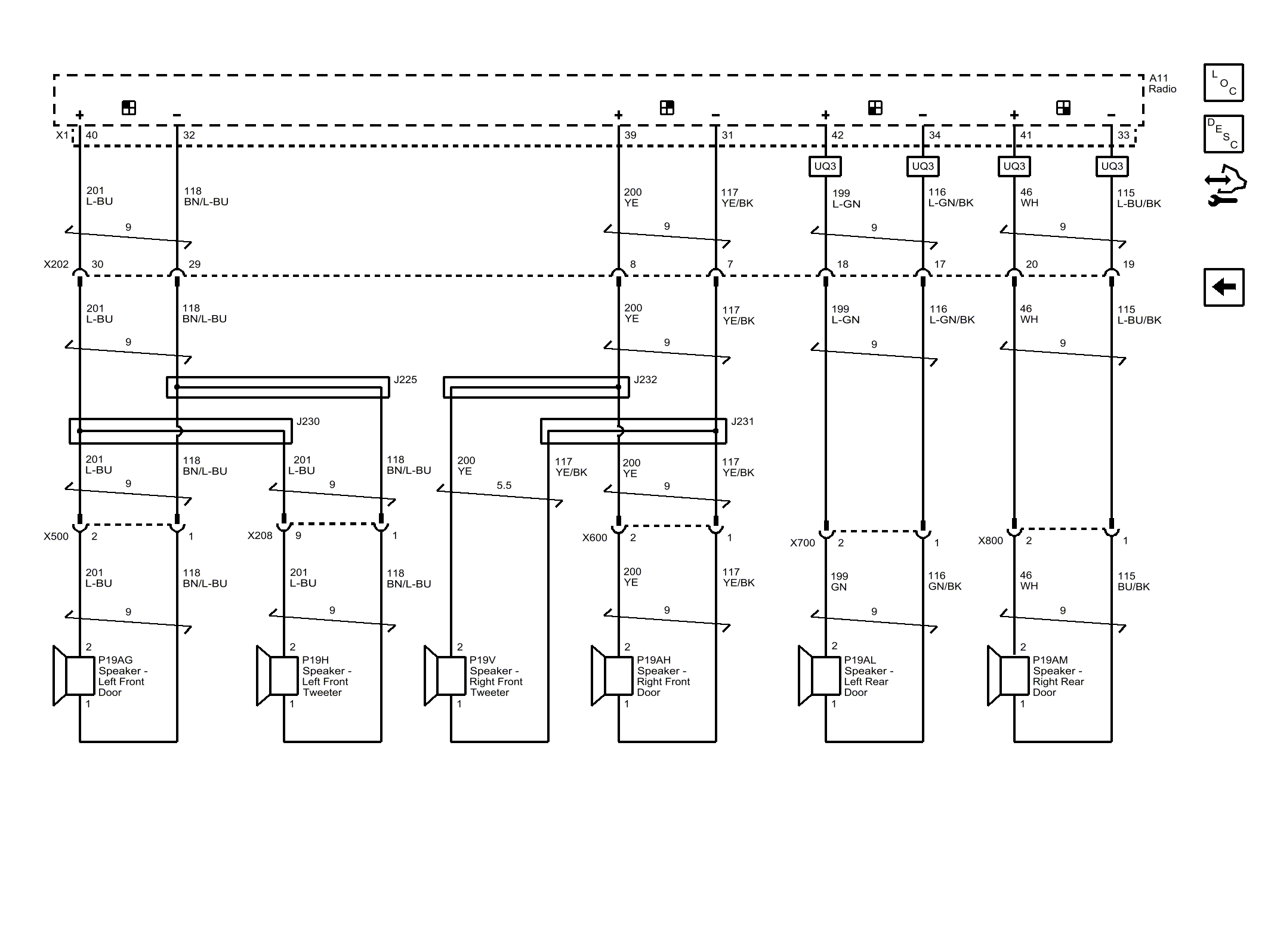

Fig 1: Speakers Wiring Schematic
GM3394656Courtesy of GENERAL MOTORS COMPANY
