Wireless Communication Interface Antenna Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

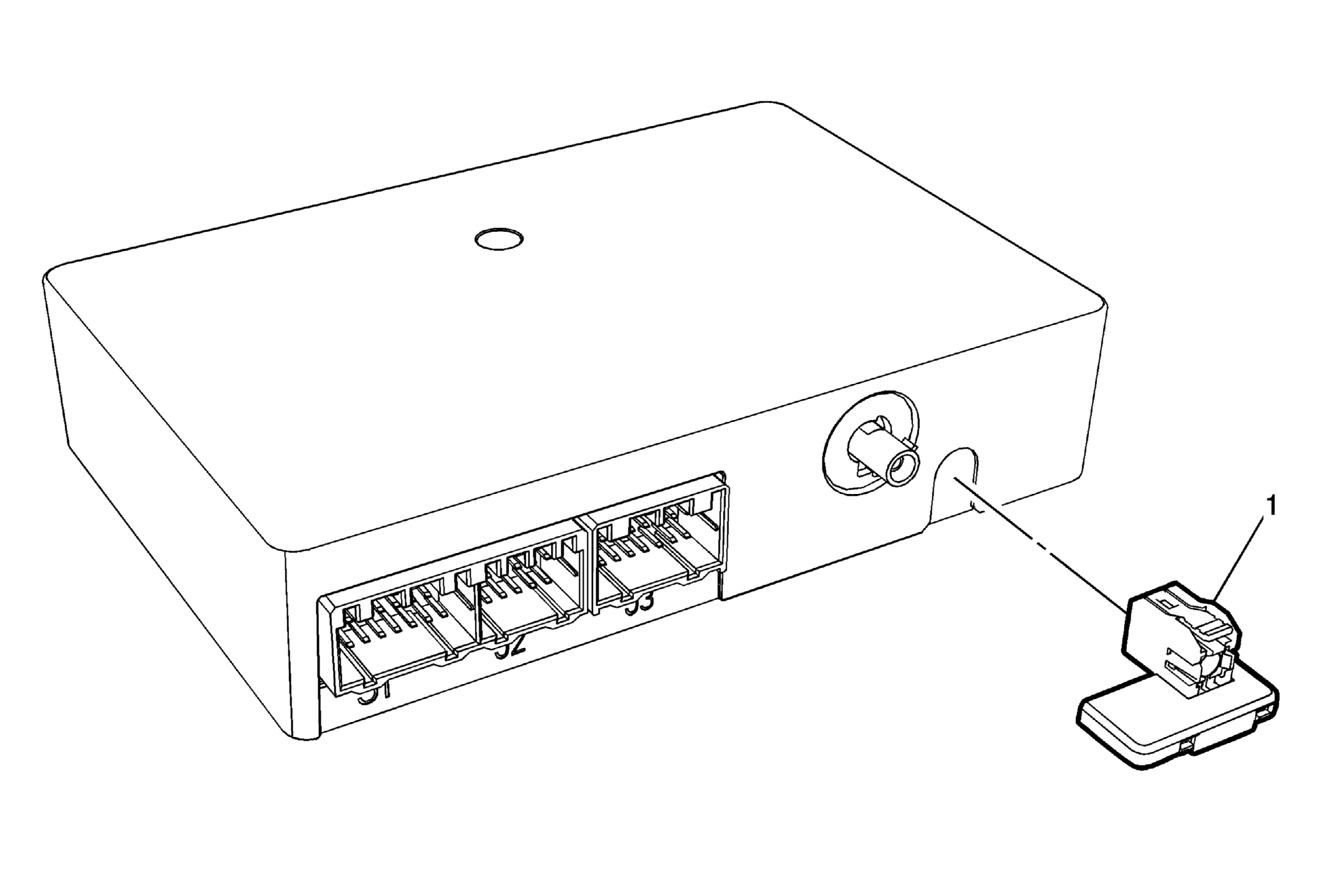

Fig 1: Wireless Communication Interface Antenna
GM2505571Courtesy of GENERAL MOTORS COMPANY
Wireless Communication Interface Antenna Replacement

Callout Component Name
Preliminary Procedure
Remove the communication interface module. Refer to Communication Interface Module Replacement . The bracket must be removed with the module, battery and antenna as an assembly to access the wireless communication interface antenna.
1 Wireless Communication Interface Antenna
Procedure
Unsnap the Antenna from Communication Module.
